REAR FENDER

LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

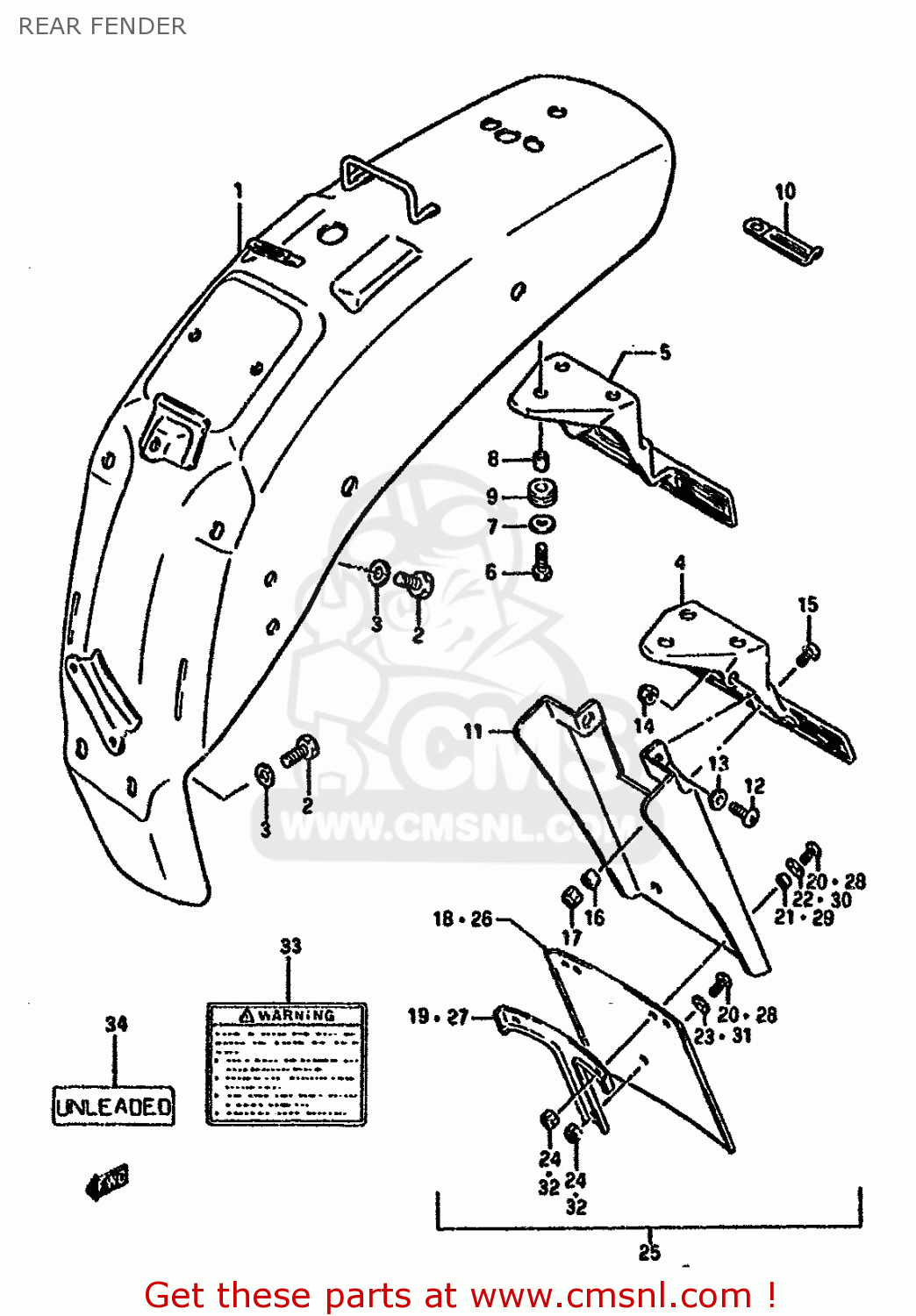

Rear fender diagram LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

REAR FENDER LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)
REAR FENDER LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)
REAR FENDER LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6311024B0313Z
ref: 1-1
MODEL G
FENDER,REAR
€ 410.50
1-2
6311024B0300J
ref: 1-2
MODEL G
FENDER,REAR
€ 410.50
1-3
6311024B1024V
ref: 1-3
MODEL J/K/L
FENDER,REAR
€ 406.00
1-4
6311024B1033D
ref: 1-4
MODEL J/K/L
FENDER,REAR
€ 406.00
1-5
6311024B1013Z
ref: 1-5
MODEL M
FENDER,REAR (BLACK)
€ 406.00
1-6
6311024B1033H
ref: 1-6
MODEL M
FENDER COMP,RR
€ 406.00
1-7
6311024B1022U
ref: 1-7
MODEL R
FENDER COMP,REAR
€ 435.00
1-8
6311024B1033J
ref: 1-8
MODEL R
FENDER COMP,REAR
€ 123.00
2-1
0910008184
ref: 2-1
MODEL G/J/K/L/M
BOLT(8X25)
€ 2.50
2-2
0910308152
ref: 2-2
MODEL R
BOLT 8X25
0910308152
€ 1.50
3
0832211086
ref: 3
MODEL G/J/K/L/M
WASHER 8MM
0832211086
€ 1.50
4
3591624B12
ref: 4
MODEL G/J/K/M/R E2,E
BRACKET,LICENSE PLATE
€ 48.00
5
3591624B01
ref: 5
MODEL G E24,MODEL K/
BRACKET,LICENSE PLATE
€ 47.00
6-1
0110706206
ref: 6-1
MODEL G/J/K/L/M
BOLT,M6X1X20
0110706206
€ 2.00
6-2
0911606065
ref: 6-2
MODEL R
BOLT
€ 2.00
7
0916006057
ref: 7
MODEL G/J/K/L/M
WASHER
€ 2.00
8
0918006011
ref: 8
SPACER (6.1X9X9)
0918006011
€ 2.00
9
0932009016
ref: 9
CUSHION
0932009016
€ 2.50
10
0940406402
ref: 10
CLAMP
€ 2.50
11-1
6331138A00
ref: 11-1
MODEL G/J/K/L/M E16,
EXTENSION,REAR
6331138A00
€ 23.50
11-2
6331138A10
ref: 11-2
MODEL G E15
EXTENSION, REAR FENDER
6331138A10
€ 17.50
11-3
6331138A20
ref: 11-3
MODEL R E15,E17,E18,
EXTENSION,RR FENDER
6331138A20
€ 23.50
12
0214206164
ref: 12
E15,E16,E17,E18,E22,
SCREW
0214206164
€ 2.50
13
0916906037
ref: 13
E15,E16,E17,E18,E22,
WASHER
0916906037
€ 6.50
14
0831921065
ref: 14
E15,E16,E17,E18,E22,
NUT
0831921065
€ 2.50
15
0211206208
ref: 15
E15,E16,E17,E18,E22,
SCREW
€ 2.00
16
0918006092
ref: 16
E15,E16,E17,E18,E22,
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
17
0831931065
ref: 17
E15,E16,E17,E18,E22,
NUT
0831931065
€ 2.50
18
6333243520
ref: 18
E15
MUD FLAP, REAR FENDER
€ 12.50
19
6331238A00
ref: 19
E15
PLATE, MUD FLAP
€ 0.00
20
0214205124
ref: 20
E15
SCREW, FRONT & REAR
€ 1.50
21
0918005015
ref: 21
E15
SPACER (5.5X8X4)
0918005015
€ 3.00
22
0832221055
ref: 22
E15
WASHER,5MM
0832221055
€ 2.50
23
0916005031
ref: 23
E15
WASHER
€ 1.50
24
0831921055
ref: 24
E15
NUT 8MM
0831921055
€ 1.50
25
6339024B00
ref: 25
E77 OPT
MUDFLAP SET,REAR
€ 16.00
26
6333243520
ref: 26
E77 OPT
MUD FLAP, REAR FENDER
€ 12.50
27
6331238A00
ref: 27
E77 OPT
PLATE, MUD FLAP
€ 0.00
28
0214205124
ref: 28
E77 OPT
SCREW, FRONT & REAR
€ 1.50
29
0918005015
ref: 29
E77 OPT
SPACER (5.5X8X4)
0918005015
€ 3.00
30
0832221055
ref: 30
E77 OPT
WASHER,5MM
0832221055
€ 2.50
31
0916005031
ref: 31
E77 OPT
WASHER
€ 1.50
32
0831921055
ref: 32
E77 OPT
NUT 8MM
0831921055
€ 1.50
33-1
6831940C00
ref: 33-1
LABEL
6831940C00
€ 8.00
33-2
6831940C20
ref: 33-2
E18,E22,E39
LABEL, WARNING SAFETY
€ 8.00
33-3
6831940C30
ref: 33-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
33-4
6831940C40
ref: 33-4
E34
LABEL, WARNING SAFETY
€ 8.00
33-5
6831940C51
ref: 33-5
E53
LABEL
€ 8.00
34
6862317D00
ref: 34
E2
LABEL,CAUTION
6862317D00
€ 4.00
35-1
6833224B40
ref: 35-1
WITH OUT DRAWING
LABEL,TIRE AIR PRESSURE
€ 4.50
35-2
6833224B50
ref: 35-2
E4,WITH OUT DRAWING
LABEL (TIRE AIR PRESSURE)
€ 4.50
35-3
6833224B60
ref: 35-3
E22,WITH OUT DRAWING
LABEL,TIRE AIR PRESSURE
€ 0.00
36-1
9901124B2001U
ref: 36-1
MODEL G
MANUAL,OWNER'S
€ 15.50
36-2
9901124B20009
ref: 36-2
MODEL G E15,E16
MANUAL,OWNER'S
€ 0.00
36-3
9901124B22042
ref: 36-3
MODEL J
MANUAL,OWNER'S
€ 15.50
36-4
9901124B23042
ref: 36-4
MODEL K
MANUAL,OWNER'S
€ 15.50
36-5
9901124B2401B
ref: 36-5
MODEL L
MANUAL,OWNER'S
€ 0.00
36-6
9901124B2501B
ref: 36-6
MODEL M E1
OWNER'S MANUAL LS650 M
€ 15.50
36-7
9901124B2501S
ref: 36-7
MODEL M E53
MANUAL,OWNER'S
€ 0.00
36-8
9901124B25011
ref: 36-8
MODEL M E2,E15,E16,E
MANUAL,OWNER'S
€ 18.00
36-9
9901124B25022
ref: 36-9
MODEL M E4,E18,E22,E
OWNER'S MANUAL LS650
9901124B25022
€ 15.50
36-10
9901124B28011
ref: 36-10
MODEL R WITH OUT DRA
MANUAL,OWNER'S
€ 0.00
