FRONT BRAKE HOSE

LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

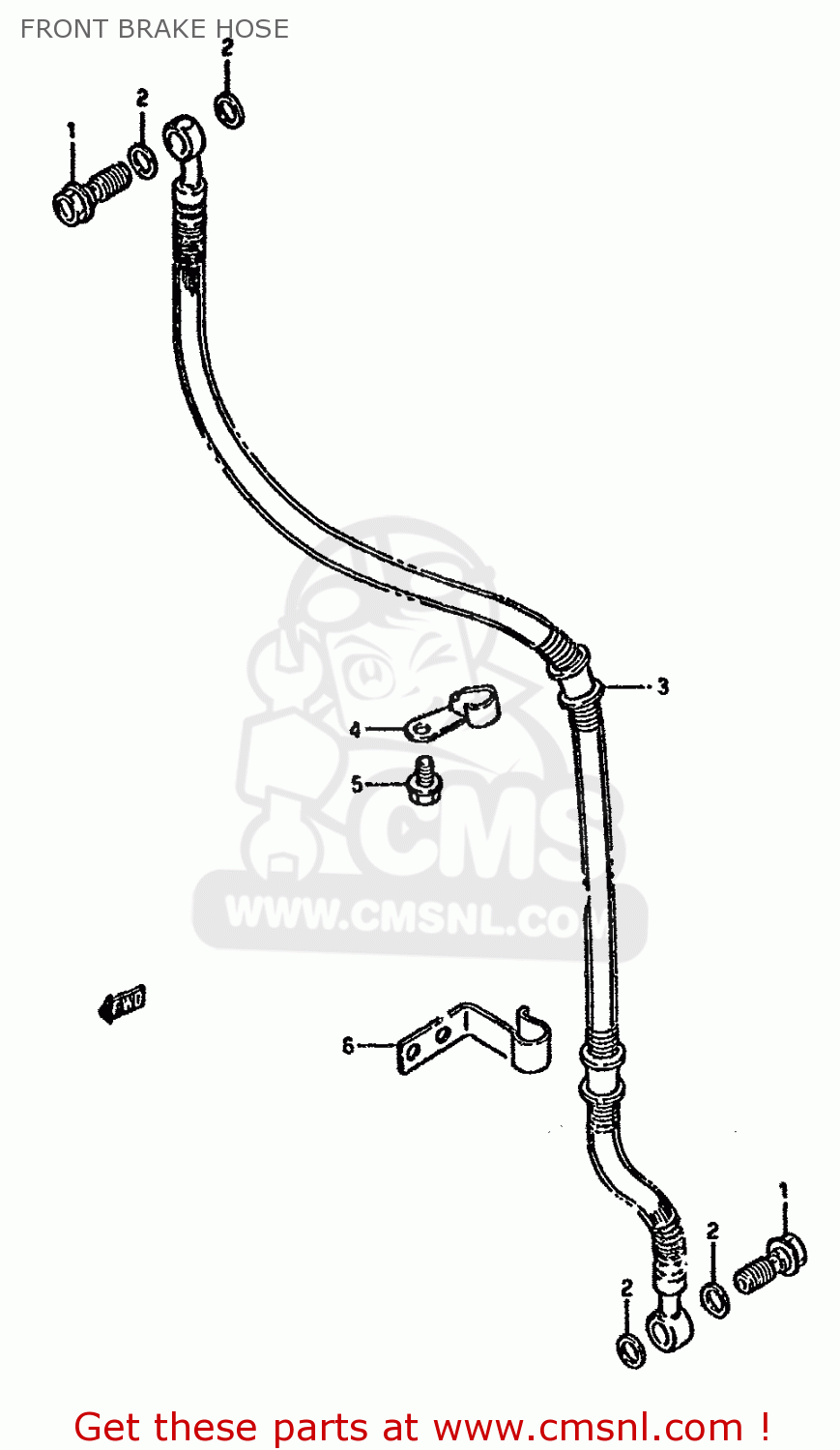

Front brake hose diagram LS650F 1989 (K) (E01 E15 E16 E17 E22 E34)

prices are in EUR

ref

part #

description

quantity

1-1

0936010017
ref: 1-1
MODEL G/J/K/L/M

BOLT UNION

€ 6.50

1-2

0936010039
ref: 1-2
MODEL R

BOLT UNION

€ 6.50

0916110009
ref: 2

WASHER(10X15X1.5)

€ 2.00

3-1

5948024B01
ref: 3-1
LS650FG/FJ/FK

HOSE,FRONT BRAKE

€ 131.50

3-2

5948024B11
ref: 3-2
LS650PG/PJ/PK/PL MOD

HOSE,FR BRAKE

€ 163.00

5954124B00
ref: 4

GUIDE,BRAKE HOSE NO.1

€ 6.50

0154706107
ref: 5

BOLT

€ 1.50

5926824B00
ref: 6

GUIDE,BRAKE HOSE NO.2

€ 7.50
