MAGNETO
LS650P SAVAGE 1996 (T) USA (E03)

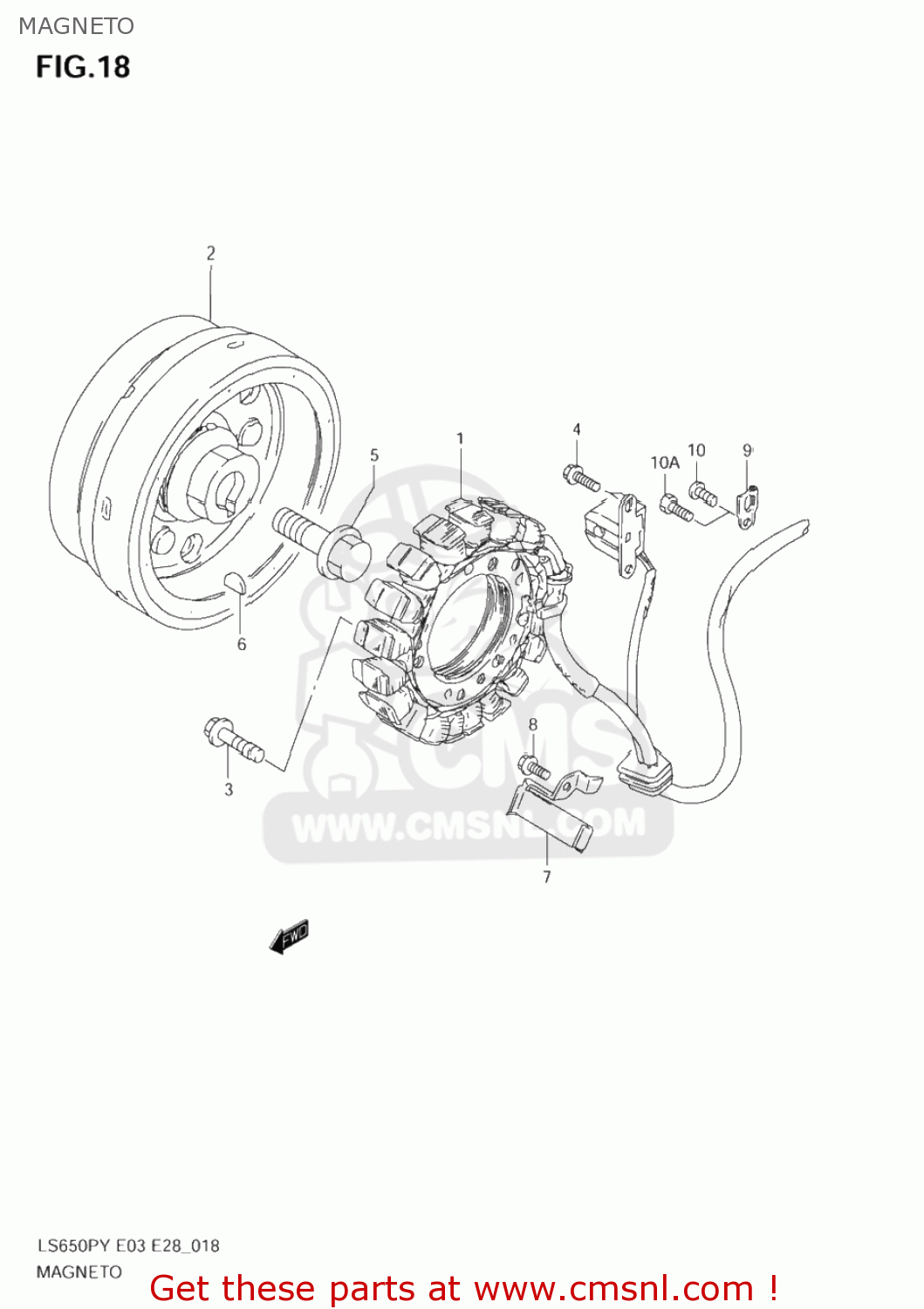

Magneto diagram LS650P SAVAGE 1996 (T) USA (E03)
MAGNETO LS650P SAVAGE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210124B00
ref: 1-1
32101-24B02
STATOR ASSEMBLY
€ 603.00
1-2
3210124B01
ref: 1-2
32101-24B02
STATOR ASSEMBLY
€ 603.00
1-3
3210124B02
ref: 1-3
STARTER ASSY
€ 603.00
2
3210224B10
ref: 2
ROTOR ASSY
€ 463.00
3
0154706253
ref: 3
01547-0625B
SCREW
€ 2.50
4
0154705103
ref: 4
01547-0510B
BOLT
€ 2.50
5
0910314001
ref: 5
BOLT(14X43)
€ 7.00
6
0942005007
ref: 6
KEY
€ 3.00
7
3237124B00
ref: 7
CLAMP,MAGNETO LEAD WIRE NO.1
€ 3.00
8
0154705103
ref: 8
01547-0510B
BOLT
€ 2.50
9
3149745000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 1.50
10
0211205103
ref: 10
02112-0510A
SCREW
€ 2.00
10A
0910005019
ref: 10A
BOLT(5X10)
€ 1.50
