PILLION HANDLE
LS650P SAVAGE 1996 (T) USA (E03)

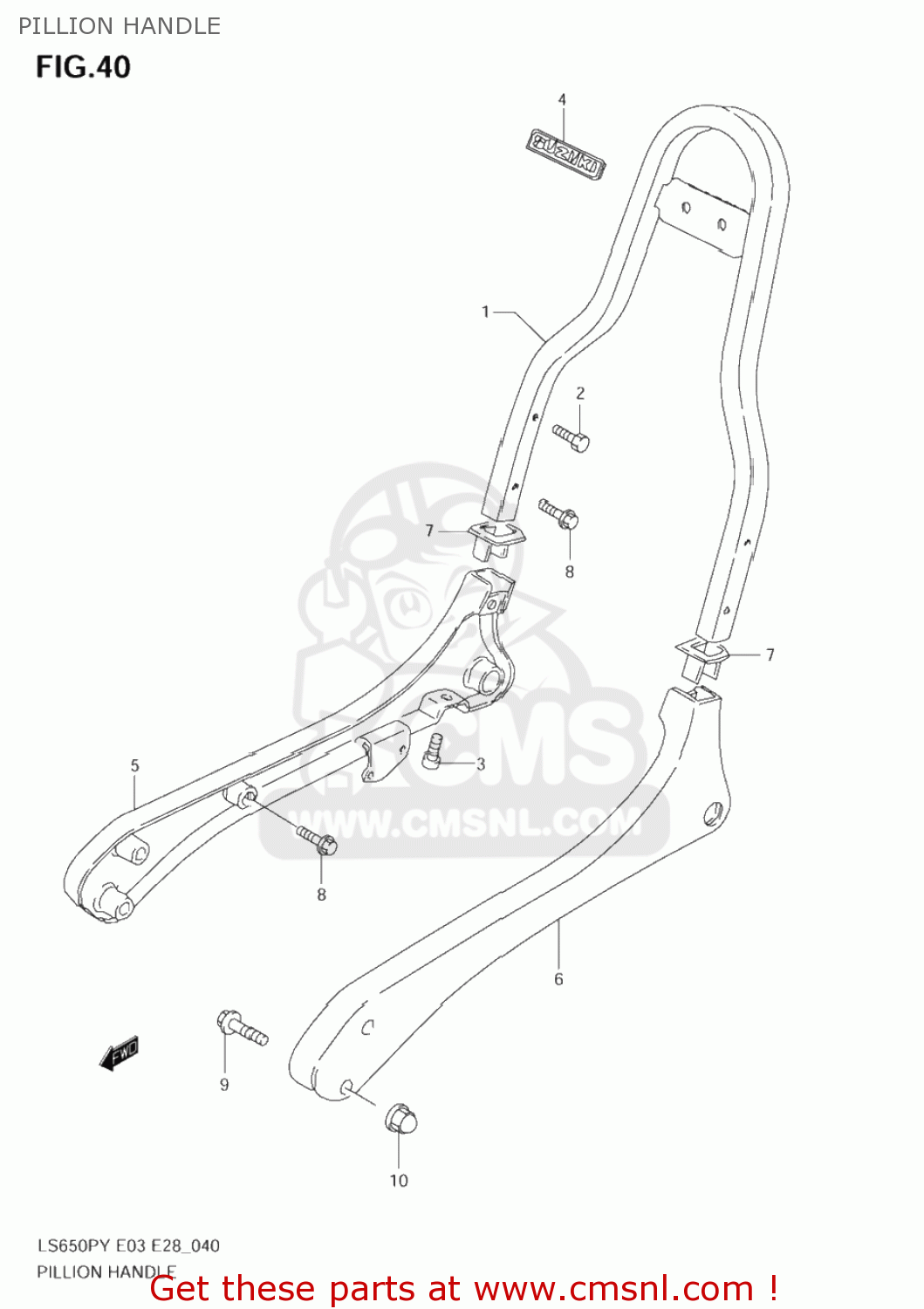

Pillion handle diagram LS650P SAVAGE 1996 (T) USA (E03)
PILLION HANDLE LS650P SAVAGE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4621024B00
ref: 1
HANDLE,PILLION UPR
€ 87.50
2
0120408127
ref: 2
BOLT
€ 2.00
3
0713008123
ref: 3
07130-0812A
PLUG
€ 2.50
4
6828124B00
ref: 4
EMBLEM
€ 8.50
5
4624024B00
ref: 5
HANDLE,PILLION RIDER,R
€ 132.00
6
4625024B00
ref: 6
HANDLE,PILLION RIDER,L
€ 132.00
7
4626124B00
ref: 7
COVER,PILLION HNDL
€ 3.00
8
0155008163
ref: 8
01550-0816A
BOLT
€ 3.00
9
0155008353
ref: 9
01550-0835A
BOLT
€ 3.50
10
0831320087
ref: 10
NUT
€ 2.50
