OIL PUMP
LS650P SAVAGE 1996 (T) USA (E03)

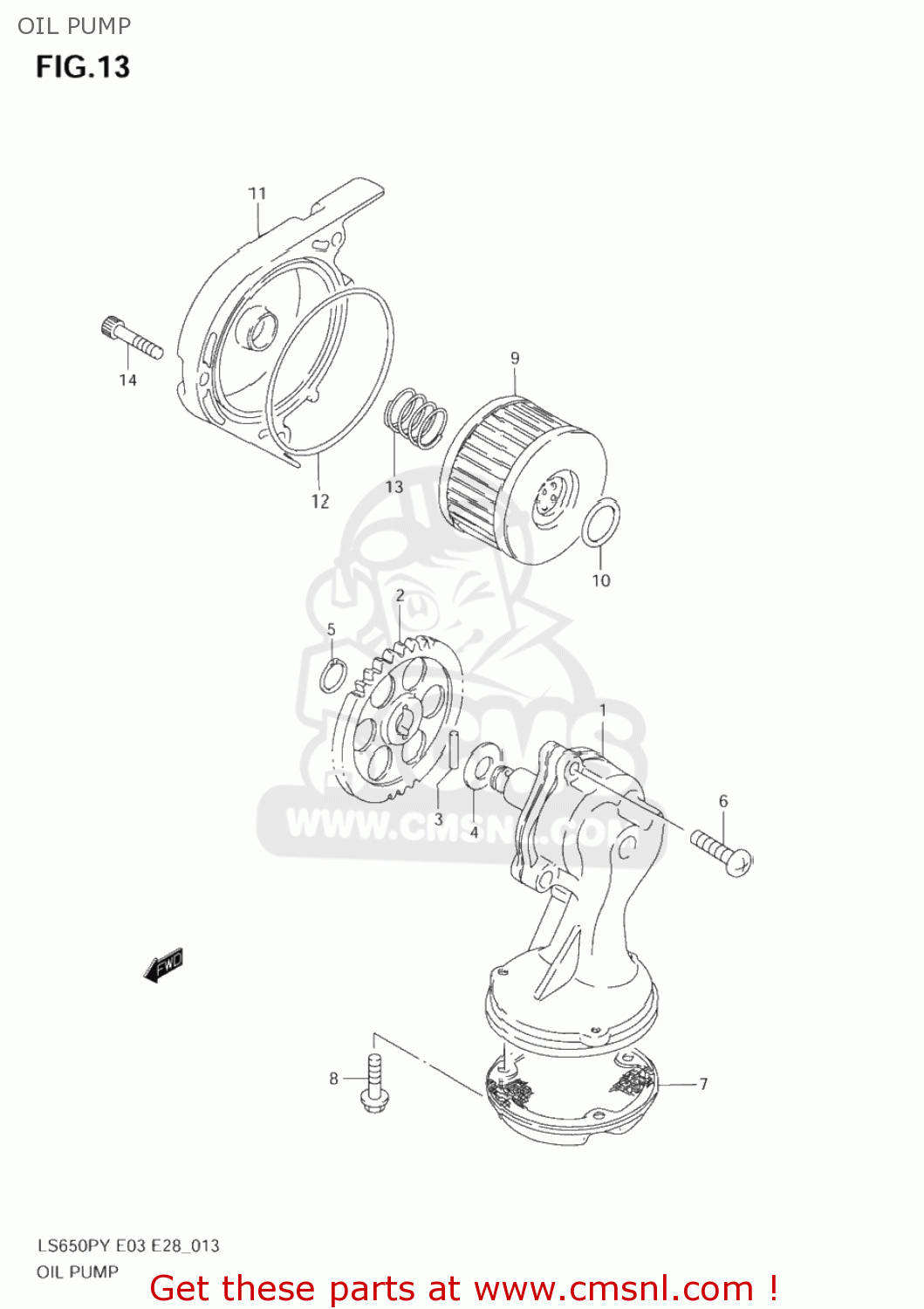

Oil pump diagram LS650P SAVAGE 1996 (T) USA (E03)
OIL PUMP LS650P SAVAGE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640024B00
ref: 1
PUMP ASSY,ENGINE OIL
€ 150.00
2
1633124B00
ref: 2
GEAR,ENG OIL PUMP DRIVEN
€ 43.00
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4-1
0822110185
ref: 4-1
SHIM
€ 2.00
4-2
0918110158
ref: 4-2
SHIM(10X18X0.5)
€ 2.50
5
0833131106
ref: 5
08331-3110A
CIRCLIP,10MM
€ 2.00
6
0211206253
ref: 6
02112-0625A
SCREW
€ 1.50
7
1652024B00
ref: 7
STRAINER,ENGINE OIL
€ 10.00
8
0158005123
ref: 8
BOLT
€ 2.00
9-1
1651037440
ref: 9-1
16510-37450
FILTER,ENGINE OIL
€ 7.50
9-2
1651037450
ref: 9-2
FILTER ASSY,ENGINE OIL
€ 7.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
€ 2.00
11
1651224B00
ref: 11
CAP,OIL FILTER
€ 48.50
12
0928072001
ref: 12
O RING(D:2.4,ID:73)
€ 5.00
13
0944021006
ref: 13
SPRING
€ 2.50
14
0713006257
ref: 14
BOLT
€ 2.50
