STAND - REAR BRAKE
LS650P SAVAGE 1996 (T) USA (E03)

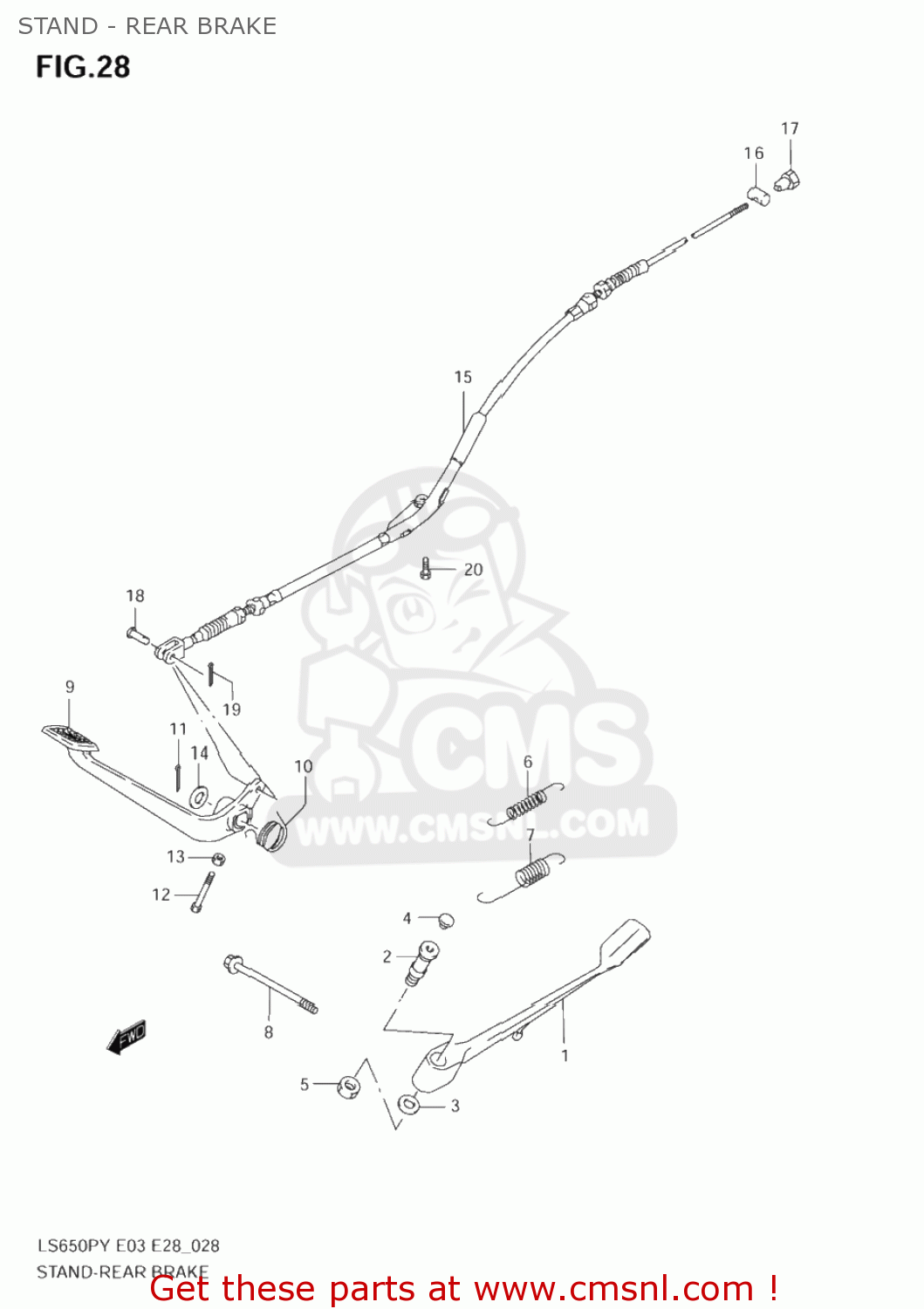

Stand - rear brake diagram LS650P SAVAGE 1996 (T) USA (E03)
STAND - REAR BRAKE LS650P SAVAGE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231024B00
ref: 1-1
42310-24B01
STAND,PROP
€ 92.00
1-2
4231024B01
ref: 1-2
STAND,PROP
€ 92.00
2
4234138B01
ref: 2
BOLT,PROP STAND
€ 9.00
3-1
0822115245
ref: 3-1
09181-15158
THRUST WASHER
€ 2.50
3-2
0918115158
ref: 3-2
SHIM(15X24X0.5)
€ 2.50
4
4357524B00
ref: 4
CAP,PROP STAND BOLT
€ 7.00
5
0914010044
ref: 5
NUT
€ 2.50
6
0944315034
ref: 6
SPRING
€ 18.50
7
0944318020
ref: 7
SPRING
€ 18.00
8
0910310087
ref: 8
BOLT(10X105)
€ 6.50
9
4311024B10
ref: 9
PEDAL,BRAKE
€ 58.50
10
0944832017
ref: 10
SPRING
€ 23.00
11
0411130308
ref: 11
04111-3030A
COTTER PIN
€ 1.50
12
0910006150
ref: 12
BOLT(6X31)
€ 1.50
13
0831000063
ref: 13
08310-0006A
NUT 6MM
€ 2.00
14-1
0916016028
ref: 14-1
09160-16043
WASHER (16.2X22X1)
€ 2.00
14-2
0916016043
ref: 14-2
WASHER(16.5X22X1)
€ 2.00
15
5851024B10
ref: 15
CABLE,RR BRAKE
€ 73.00
16
0920913018
ref: 16
PIN(13X18)
€ 3.50
17-1
0915006009
ref: 17-1
09150-06010
NUT (6MM)
€ 3.50
17-2
0915006014
ref: 17-2
09150-06010
NUT
€ 3.50
18
0920005001
ref: 18
PIN(L:17.5)
€ 1.50
19
0411120158
ref: 19
04111-2015A
PIN
€ 1.50
20
0157006163
ref: 20
01570-0616A
BOLT
€ 2.50
