STARTER CLUTCH
LS650P SAVAGE 1996 (T) USA (E03)

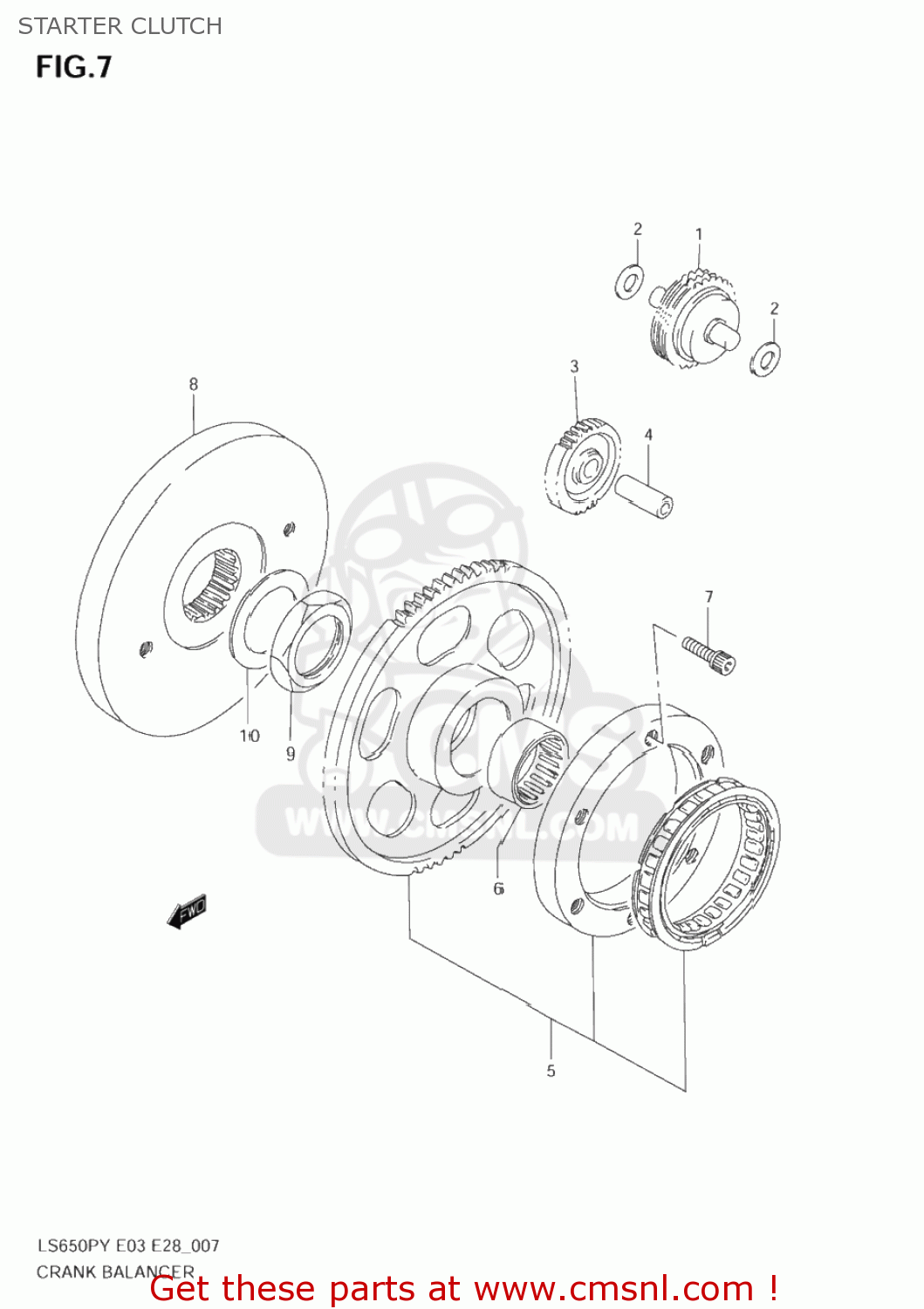

Starter clutch diagram LS650P SAVAGE 1996 (T) USA (E03)
STARTER CLUTCH LS650P SAVAGE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1260024B00
ref: 1-1
12600-24B01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 223.00
1-1
1260024B00
ref: 1-1
12600-24B01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 223.00
1-2
1260024B10
ref: 1-2
12600-24B11
LIMITER ASSEMBLY,STARTER IDLER GEAR N
€ 185.50
1-2
1260024B10
ref: 1-2
12600-24B11
LIMITER ASSEMBLY,STARTER IDLER GEAR N
€ 185.50
2-1
0821110181
ref: 2-1
09181-10167
WASHER,THRUST
€ 3.00
2-2
0918110167
ref: 2-2
SHIM(10X18X1)
€ 3.00
3
1261224B03
ref: 3
GEAR,STARTER IDLE NO.2
€ 44.50
4
0920210011
ref: 4
PIN(10X30)
€ 7.00
5
1260024831
ref: 5
CLUTCH SET,STARTER
€ 306.00
6
0926331009
ref: 6
BEARING(31X39X17.8)
€ 25.50
7
0713008163
ref: 7
07130-0816A
BOLT
€ 3.00
8
1265624B02
ref: 8
FLYWHEEL
€ 92.00
9
1266424B01
ref: 9
NUT,FLYWHEEL
€ 9.50
10
0916435002
ref: 10
WASHER
€ 5.00
