FRAME
LS650P SAVAGE 2004 (L4) USA (E03)

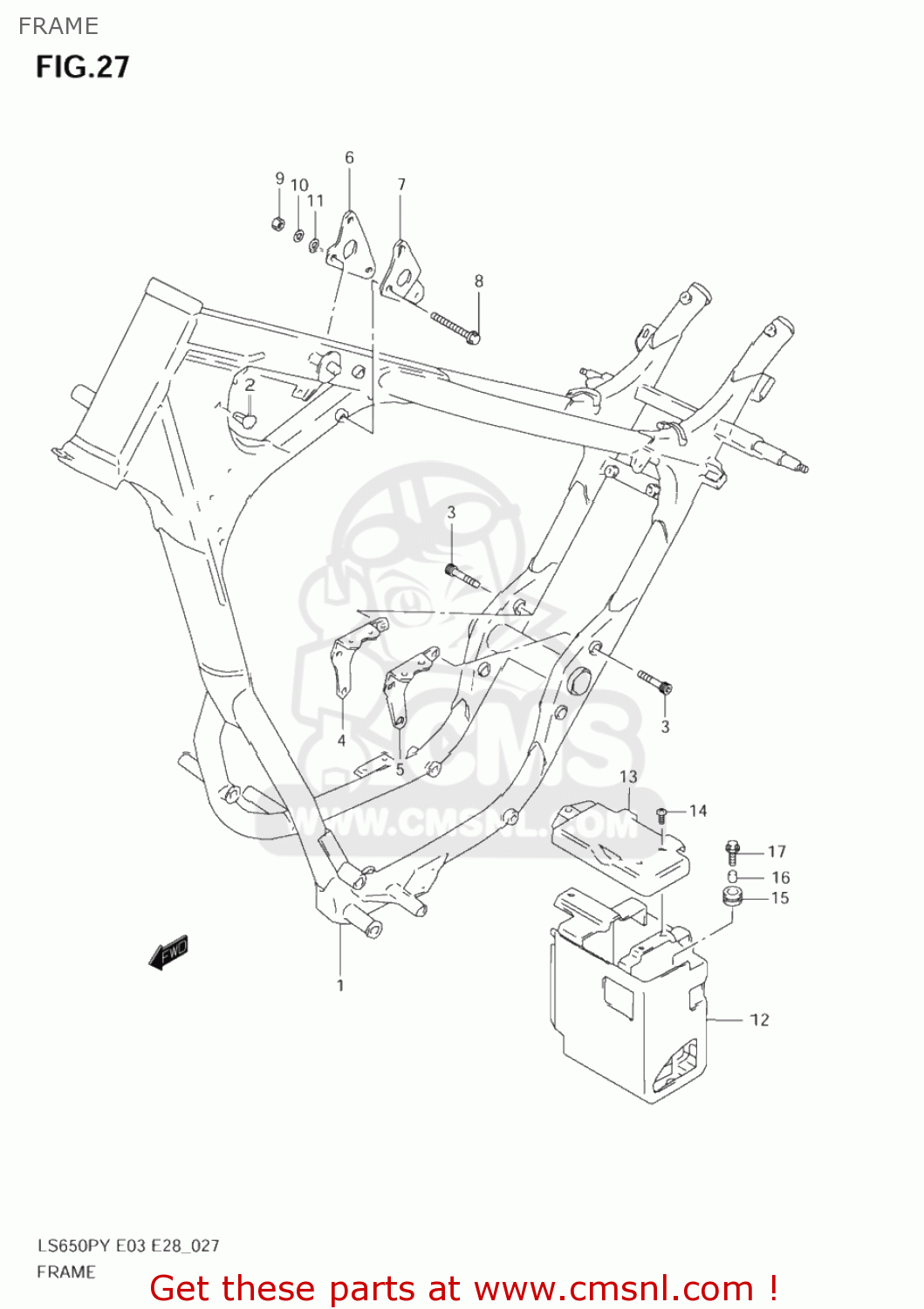

Frame diagram LS650P SAVAGE 2004 (L4) USA (E03)
FRAME LS650P SAVAGE 2004 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110024B01019
ref: 1
FRAME(BLACK)
€ 562.50
2
0940906306
ref: 2
CLIP
€ 2.00
3
0910608074
ref: 3
BOLT(8X40)
€ 3.50
4
4197024B00019
ref: 4
PLATE,ENGINE MOUNT NO.4,R
€ 10.50
5
4198024B00019
ref: 5
PLATE,ENGINE MOUNT NO.4,L
€ 10.50
6
4199124B00019
ref: 6
PLATE,ENGINE MOUNT NO.5,R
€ 7.50
7
4199224B00019
ref: 7
PLATE,ENGINE MOUNT NO.5,L
€ 7.50
8
0910308279
ref: 8
BOLT(8X72)
€ 4.50
9
0831921088
ref: 9
08319-2108A
NUT
€ 1.50
10
0832101083
ref: 10
08321-0108A
LOCK WASHER
€ 2.50
11
0832201083
ref: 11
08322-0108A
WASHER
€ 1.50
12-1
4154024B00
ref: 12-1
41540-24B01
HOLDER COMP,BATTERY
€ 87.50
12-2
4154024B01
ref: 12-2
HOLDER,BATTERY
€ 87.50
13
4157624B01
ref: 13
COVER,BATTERY
€ 20.00
14
0214204107
ref: 14
SCREW
€ 1.50
15
0932008021
ref: 15
CUSHION
€ 4.00
16-1
0918006111
ref: 16-1
09180-06260
SPACER
€ 3.50
16-2
0918006260
ref: 16-2
SPACER(6.5X9X7.2)
€ 3.50
17-1
0911606083
ref: 17-1
09116-06167
BOLT
€ 2.00
17-2
0911606011
ref: 17-2
09116-06115
BOLT 6X20
€ 2.00
