STARTING MOTOR (SEE NOTE)

LS650P SAVAGE 2004 (L4) USA (E03)

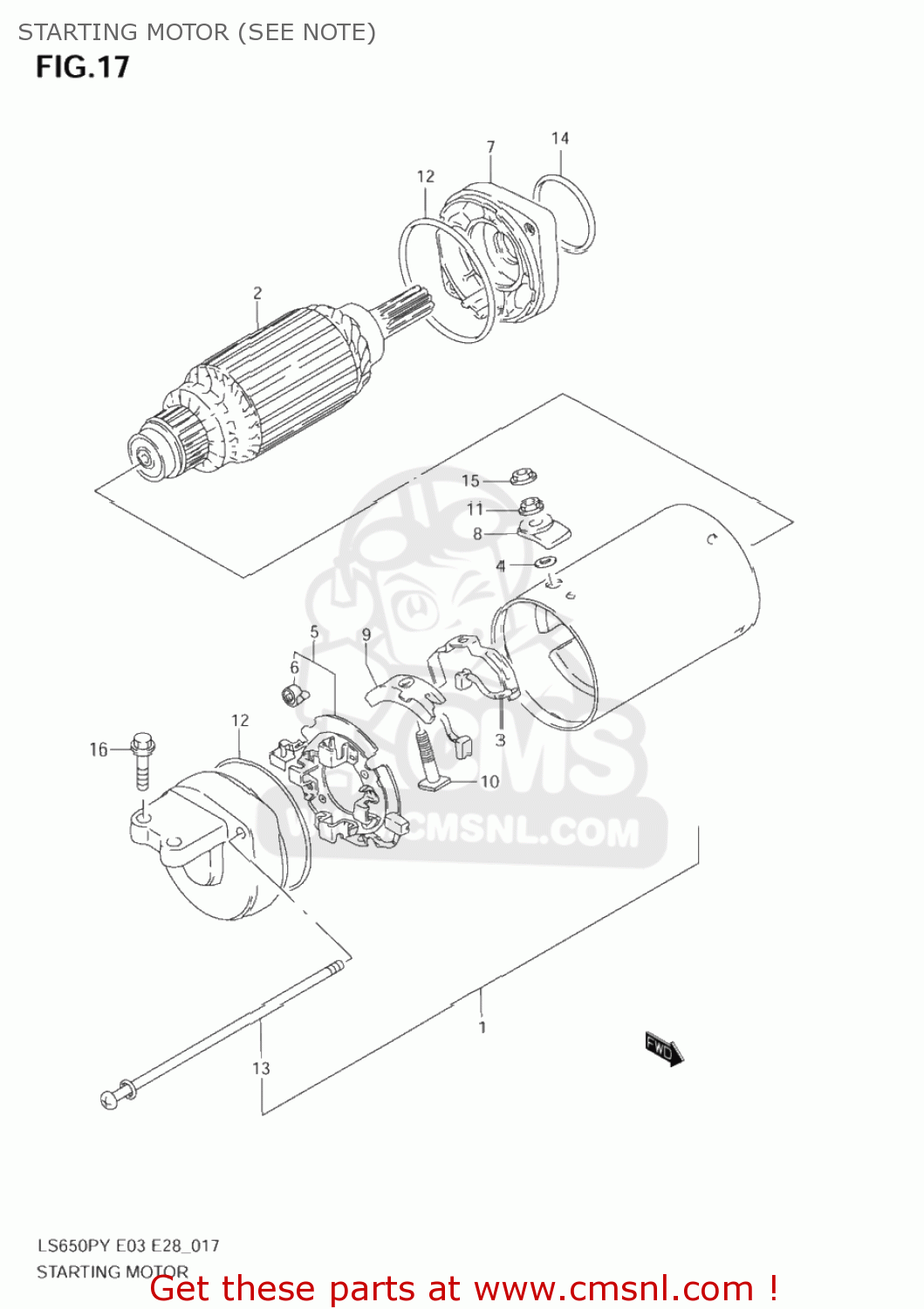

Starting motor (see note) diagram LS650P SAVAGE 2004 (L4) USA (E03)

STARTING MOTOR (SEE NOTE) LS650P SAVAGE 2004 (L4) USA (E03)

STARTING MOTOR (SEE NOTE) LS650P SAVAGE 2004 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110007F00
ref: 1

MOTOR ASSY,STARTING

€ 620.00

2

3117007F00
ref: 2

FRAME ASSY

€ 69.50

3

3114338300
ref: 3

O RING

€ 3.50

4

3113245C00
ref: 4

HOLDER SET,BRUSH

€ 46.00

5

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

6

3115044B00
ref: 6

BRACKET SET

€ 98.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117388C00
ref: 8

BUSHING

€ 6.00

9

0831000067
ref: 9

NUT

€ 2.50

10

0836135068
ref: 10
08361-3506A

NUT

€ 2.00

11

3126444110
ref: 11

O RING

€ 8.00

12

3128124B10
ref: 12

BOLT

€ 5.00

13

0928035005A
ref: 13

O-RING (D:2.1 ID:34.7)

€ 9.50

14

0836135068
ref: 14
08361-3506A

NUT

€ 2.00

15

0910306223
ref: 15

BOLT(6X20)

€ 2.50
