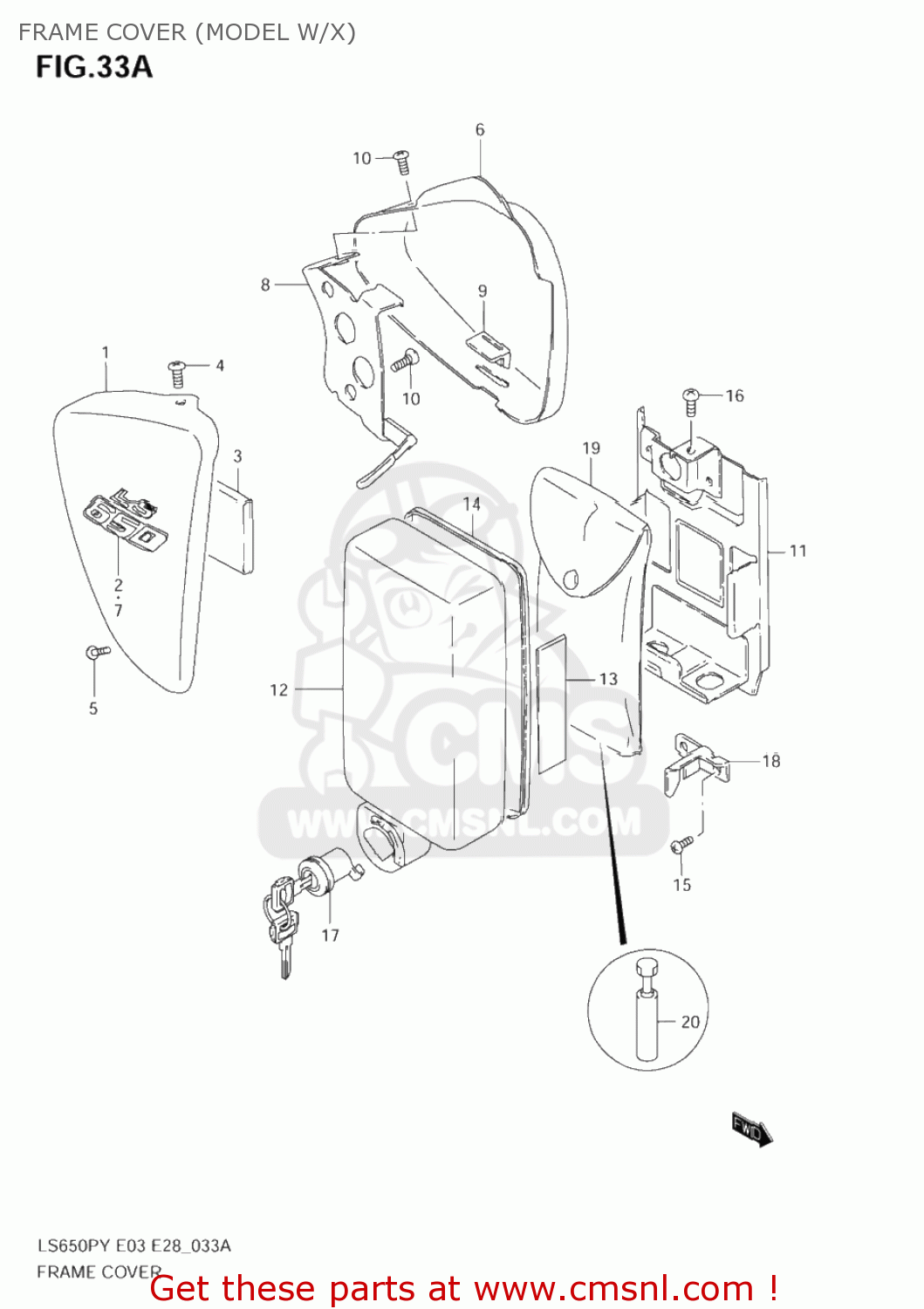

FRAME COVER (MODEL W/X)

ref

part #

description

quantity

1-1

4710025B1033J
ref: 1-1

COVER ASSY,FRAME,R(BLACK)

€ 79.50

1-2

4710025B10Z94
ref: 1-2

COVER ASSY,FRAME,R(ORANGE)

€ 85.00

2-1

6813124B20J9F
ref: 2-1

EMBLEM,FRAME COVER

€ 15.50

2-2

6813124B20J9E
ref: 2-2

EMBLEM,FRAME COVER

€ 14.00

3

1371984150
ref: 3

PAD

€ 2.50

4

0214205103
ref: 4
02142-0510B

SCREW

€ 2.50

5

0211275163
ref: 5
02112-7516A

SCREW

€ 2.50

6-1

4720025B1033J
ref: 6-1

COVER ASSEMBLY,FRAME,LEFT

€ 94.00

6-2

4720025B10Z94
ref: 6-2

COVER ASSY,FRAME,L(ORANGE)

€ 93.00

7-1

6813124B20J9F
ref: 7-1

EMBLEM,FRAME COVER

€ 15.50

7-2

6813124B20J9E
ref: 7-2

EMBLEM,FRAME COVER

€ 14.00

8

4718024B03
ref: 8

BRACKET,FRAME COVER,L

€ 13.00

9

4711745000
ref: 9

CUSHION,FRAME COVER

€ 1.50

10

0212206123
ref: 10
02122-0612A

SCREW

€ 3.00

11

4743024B01
ref: 11

HOLDER,TOOL

€ 11.00

12

4744024B10
ref: 12
47440-24B20

COVER COMP,TOOL HOLDER

€ 36.00

13

3365207D00
ref: 13

PROTECTOR(80X80X2)

€ 4.50

14

4744524B00
ref: 14

MOLDING

€ 2.50

15

0214205103
ref: 15
02142-0510B

SCREW

€ 2.50

16

0211206103
ref: 16
02112-0610B

SCREW

€ 1.50

17

9570024870
ref: 17
95700-24871

LOCK SET,TOOL HOLDER

€ 45.00

18

4743424B00
ref: 18

PLATE,TOOL HOLDER LOCK

€ 2.50

19

0980021012
ref: 19

TOOL ASSY

€ 40.00

20

9622024B00
ref: 20

GAUGE ASSY,TENSION

€ 21.50
