WIRING HARNESS (MODEL K4)

LS650P SAVAGE 2004 (L4) USA (E03)

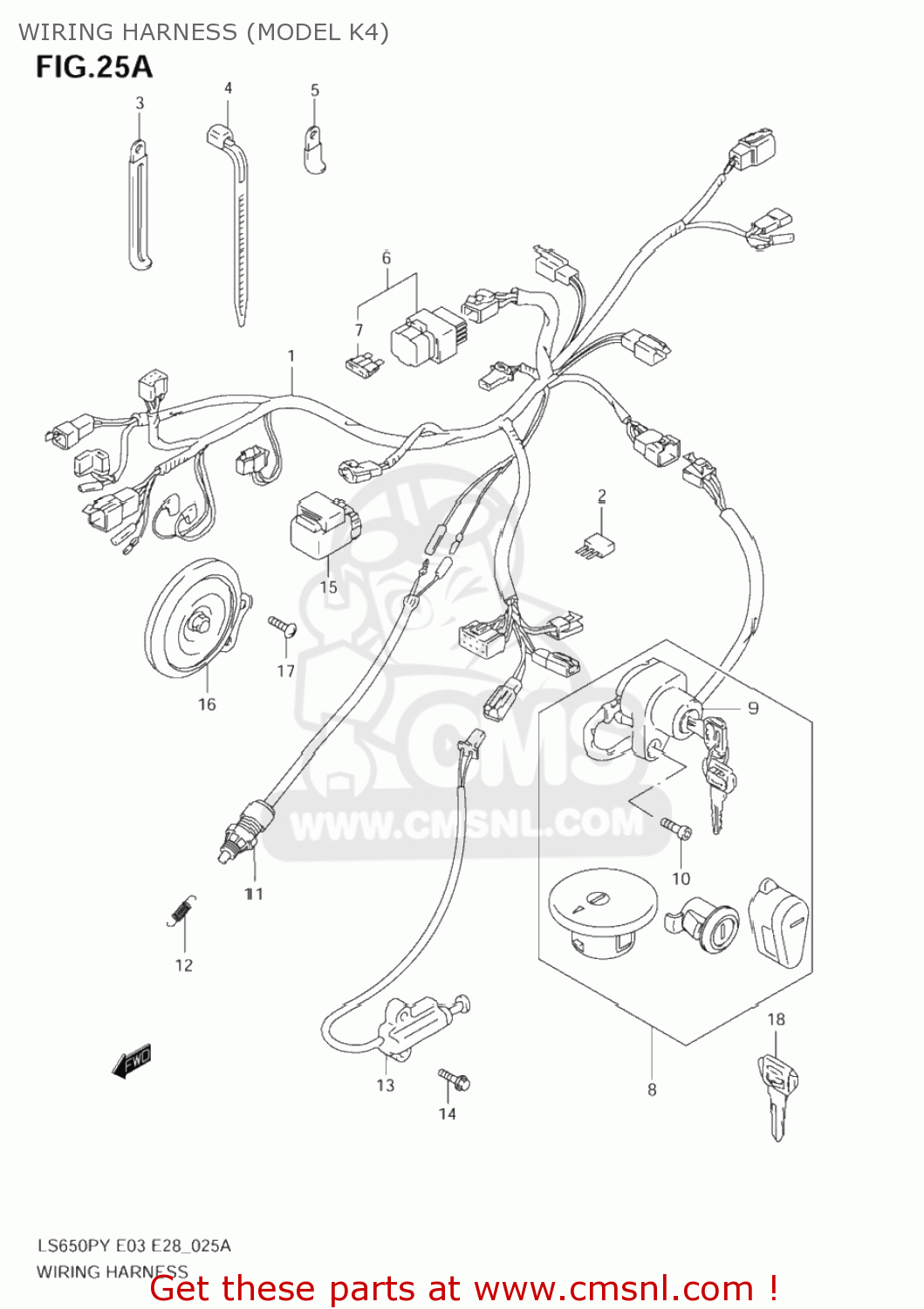

Wiring harness (model k4) diagram LS650P SAVAGE 2004 (L4) USA (E03)

WIRING HARNESS (MODEL K4) LS650P SAVAGE 2004 (L4) USA (E03)
WIRING HARNESS (MODEL K4) LS650P SAVAGE 2004 (L4) USA (E03)
WIRING HARNESS (MODEL K4) LS650P SAVAGE 2004 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661024BA0
ref: 1
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
0940408207
ref: 3
CLAMP(L:80)
0940408207
€ 3.00
4-1
0940714403
ref: 4-1
CLAMP(L:125)
0940714403
€ 2.50
4-2
0940718402
ref: 4-2
CLAMP(L:165)
0940718402
€ 2.50
4-3
0940725401
ref: 4-3
CLAMP(L:235)
0940725401
€ 4.00
5
3665124B00
ref: 5
CLAMP
€ 0.00
6
3674024B01
ref: 6
BOX ASSY,FUSE
3674024B01
€ 18.00
7
0948120101
ref: 7
FUSE(20A)
0948120101
€ 2.00
8-1
3710024844
ref: 8-1
LOCK SET
3710024844
€ 262.50
8-2
3710024880
ref: 8-2
LOCK SET
€ 0.00
9
3711024B03
ref: 9
SWITCH ASSY,IGNITION
3711024B03
€ 71.00
10
0713005163
ref: 10
07130-0516A
BOLT
€ 2.00
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
12
0944306077
ref: 12
SPRING
0944306077
€ 4.50
13
3784012X50
ref: 13
SWITCH ASSY,SIDE STAND WARNING
3784012X50
€ 76.00
14
0155006203
ref: 14
01550-0620A
BOLT
0155006203
€ 2.50
15
3874024X50
ref: 15
RELAY ASSY
3874024X50
€ 37.50
16
3850024B00
ref: 16
HORN ASSY
€ 52.00
17
0214206123
ref: 17
02142-0612A
SCREW 6X12
0214206123
€ 2.00
18-1
3714603A00
ref: 18-1
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
18-2
3714603A10
ref: 18-2
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
18-3
3714603A20
ref: 18-3
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
18-4
3714603A30
ref: 18-4
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
