SEAT (MODEL T/V/W/X/Y/K1)

LS650P SAVAGE 2004 (L4) USA (E03)

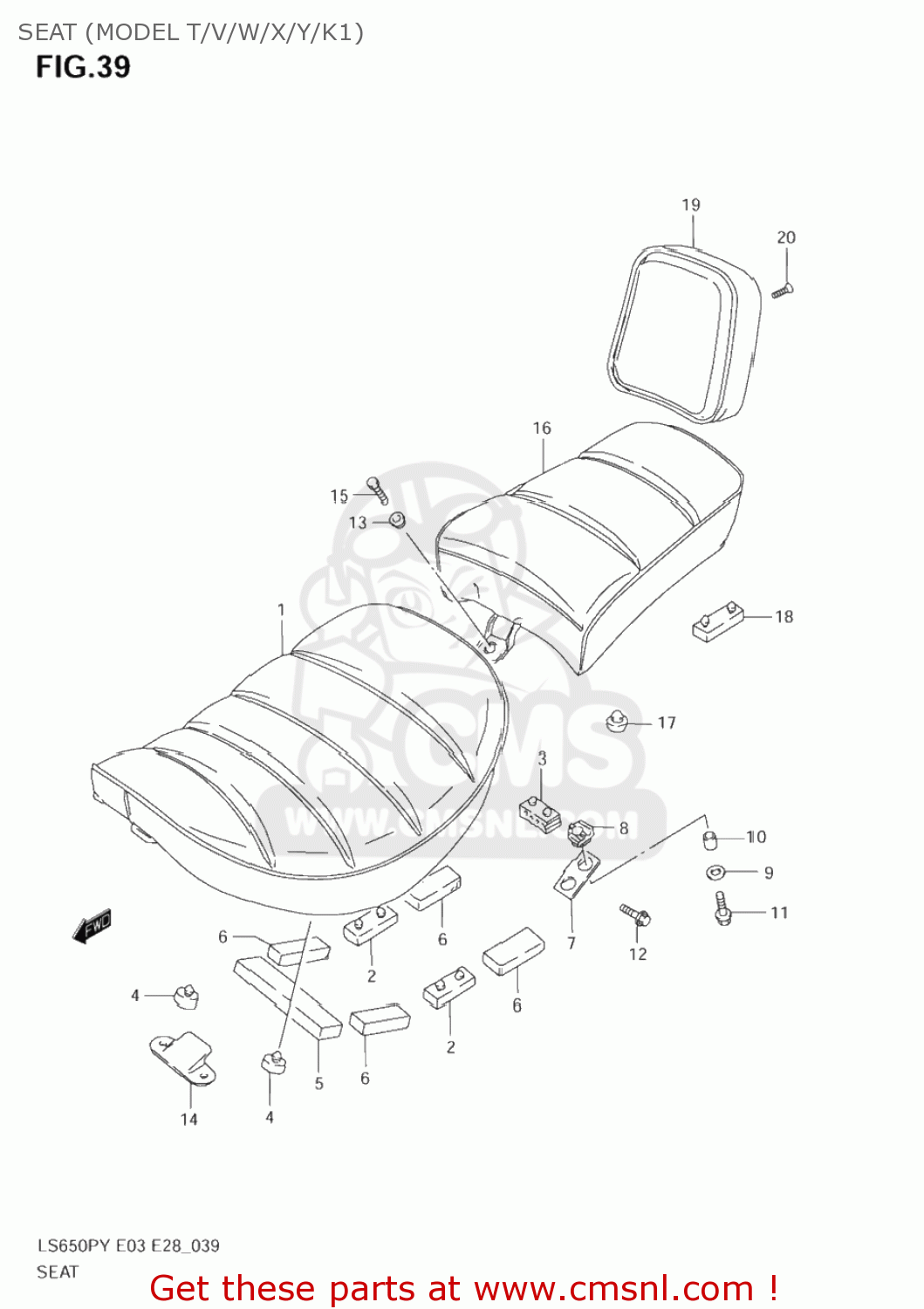

Seat (model t/v/w/x/y/k1) diagram LS650P SAVAGE 2004 (L4) USA (E03)

SEAT (MODEL T/V/W/X/Y/K1) LS650P SAVAGE 2004 (L4) USA (E03)
SEAT (MODEL T/V/W/X/Y/K1) LS650P SAVAGE 2004 (L4) USA (E03)
SEAT (MODEL T/V/W/X/Y/K1) LS650P SAVAGE 2004 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4510024B204HS
ref: 1
SEAT SET
4510024B204HS
€ 191.50
2
4514943500
ref: 2
CUSHION,SEAT
4514943500
€ 3.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
4
0932110002
ref: 4
CUSHION(11.5X22X20)
0932110002
€ 2.00
5
4511624B00
ref: 5
CUSHION,CTR FR
€ 5.00
6
4611724B00
ref: 6
CUSHION,CTR SIDE
€ 6.00
7
4511424B00
ref: 7
BRACKET,SEAT RR
4511424B00
€ 6.00
8
4511824B00
ref: 8
CUSHION,SEAT RR BRACKET
€ 2.50
9
0916006066
ref: 9
WASHER(6.5X20X1.6)
0916006066
€ 2.00
10
4516924B00
ref: 10
COLLAR,SEAT(TS-5A1-02273)
4516924B00
€ 2.50
11
0155006253
ref: 11
01550-0625A
BOLT
0155006253
€ 2.50
12-1
0158006163
ref: 12-1
01580-0616A
BOLT
0158006163
€ 2.50
12-2
0155006123
ref: 12-2
01550-0612A
BOLT
0155006123
€ 2.50
13
0916906037
ref: 13
WASHER
0916906037
€ 6.50
14
4511924B00
ref: 14
PLATE,SEAT HOOK FR
4511924B00
€ 2.00
15-1
0157006163
ref: 15-1
01570-0616A
BOLT
0157006163
€ 2.50
15-2
0155006123
ref: 15-2
01550-0612A
BOLT
0155006123
€ 2.50
16
4530024B004HS
ref: 16
SEAT SET,PILLION
4530024B004HS
€ 187.00
17
4514924B00
ref: 17
CUSHION,SEAT
€ 0.00
18
4514943500
ref: 18
CUSHION,SEAT
4514943500
€ 3.00
19
4535024B004HS
ref: 19
PAD ASSY,SEAT
4535024B004HS
€ 73.50
20
0212205163
ref: 20
02122-0516B
SCREW,SUNVISOR
€ 2.00
