CRANKCASE COVER
PE175 1982 (Z) USA (E03)

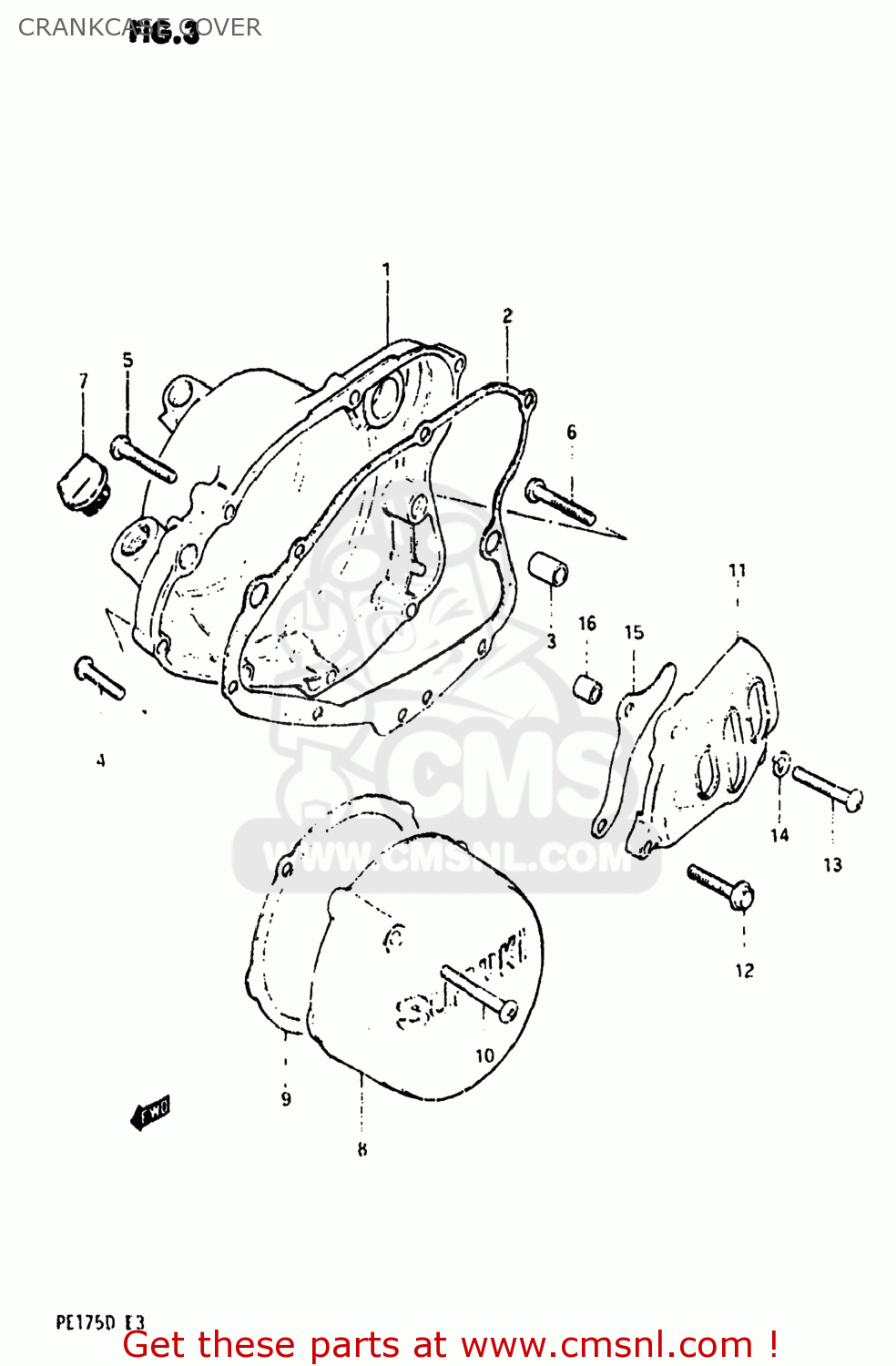

Crankcase cover diagram PE175 1982 (Z) USA (E03)
CRANKCASE COVER PE175 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134140201
ref: 1
COVER,CLUTCH
€ 118.50
2
1148240200
ref: 2
11482-40200-H17
GASKET,CLUTCH COVER (MCA)
€ 10.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206305
ref: 4
02112-0630A
SCREW
€ 2.50
5
0211206405
ref: 5
02112-0640A
SCREW
€ 2.00
6
0211206455
ref: 6
02112-0645B
SCREW
€ 1.50
7
0925920003
ref: 7
09200-20810
PLUG,OIL FILTER
€ 8.00
8
1135141403
ref: 8
COVER,MAGNETO
€ 149.50
9
1148341111
ref: 9
GASKET,MAGNETO COVER (NAS)
€ 8.00
10
0211206555
ref: 10
02112-0655B
SCREW
€ 2.00
11
1136040200
ref: 11
COVER,ENGINE SPROCKET
€ 48.50
12
0151706355
ref: 12
01550-0635A
BOLT
€ 2.50
13
0211206455
ref: 13
02112-0645B
SCREW
€ 1.50
14
0832121065
ref: 14
08321-0106A
LOCK WASHER
€ 2.00
15
2764140221
ref: 15
PLATE,FRONT CHAIN GUIDE
€ 8.00
16
0918007004
ref: 16
SPACER(6.5X10.5X12)
€ 2.50
