TAIL LAMP
PE175 1982 (Z) USA (E03)

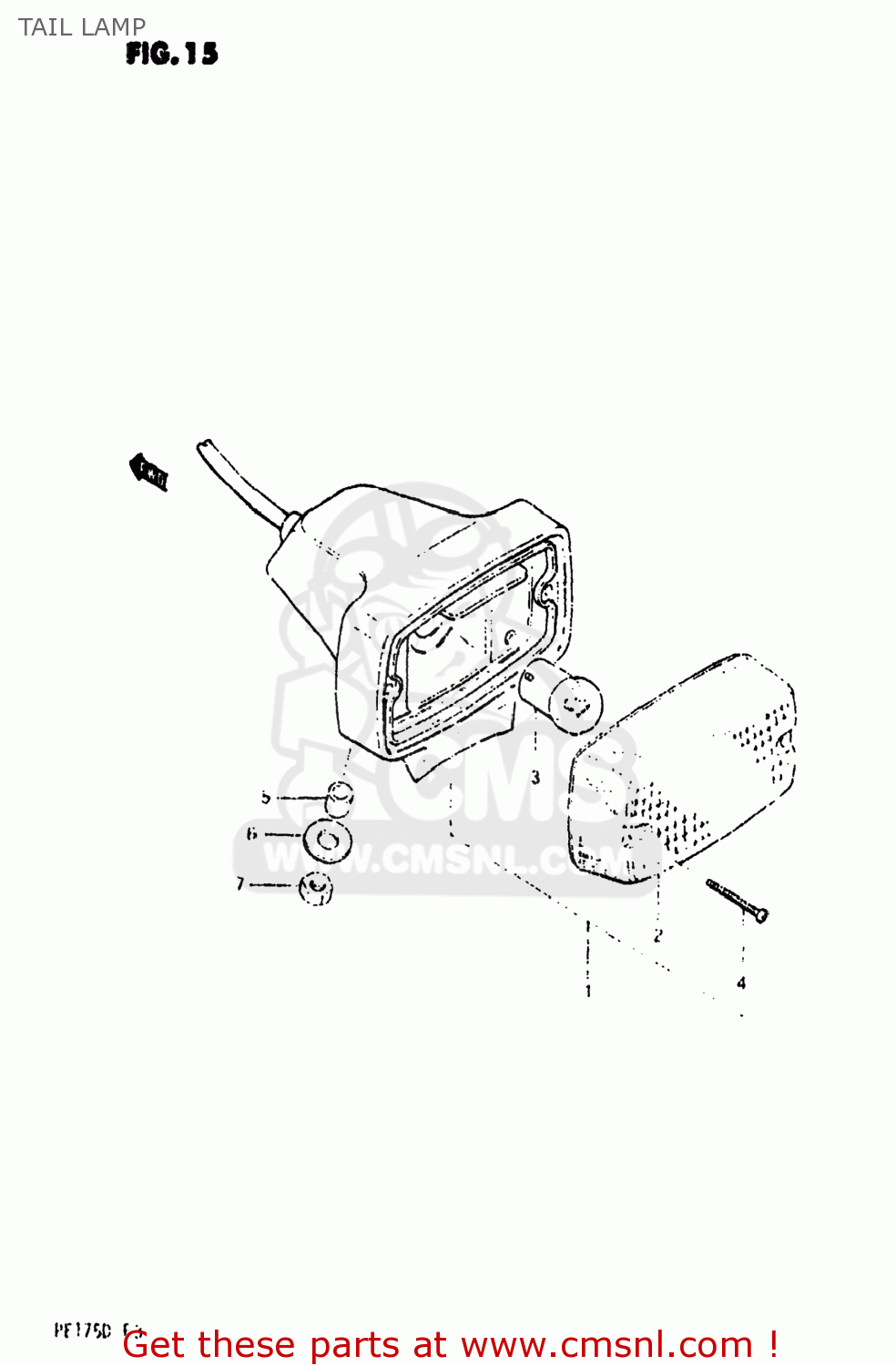

Tail lamp diagram PE175 1982 (Z) USA (E03)
TAIL LAMP PE175 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571040533
ref: 1-1
35710-40500
LAMP ASSEMBLY,REAR COMBINATION
€ 72.50
1-2
3571040500
ref: 1-2
LAMP ASSEMBLY,TAIL
€ 72.50
2
3571230410
ref: 2
LENS
€ 15.50
3
0947106049
ref: 3
BULB(6V5W,TOKAI DENSO)
€ 3.50
4
3572340511
ref: 4
SCREW,REAR COMBINATION LAMP LENS
€ 2.50
5
0918006011
ref: 5
09180-06263
SPACER (6.1X9X9)
€ 2.00
6
0916006007
ref: 6
09160-06084
WASHER
€ 2.00
7
0831011068
ref: 7
08310-00067
NUT
€ 2.50
