FUEL TANK (MODEL Z)
PE175 1982 (Z) USA (E03)

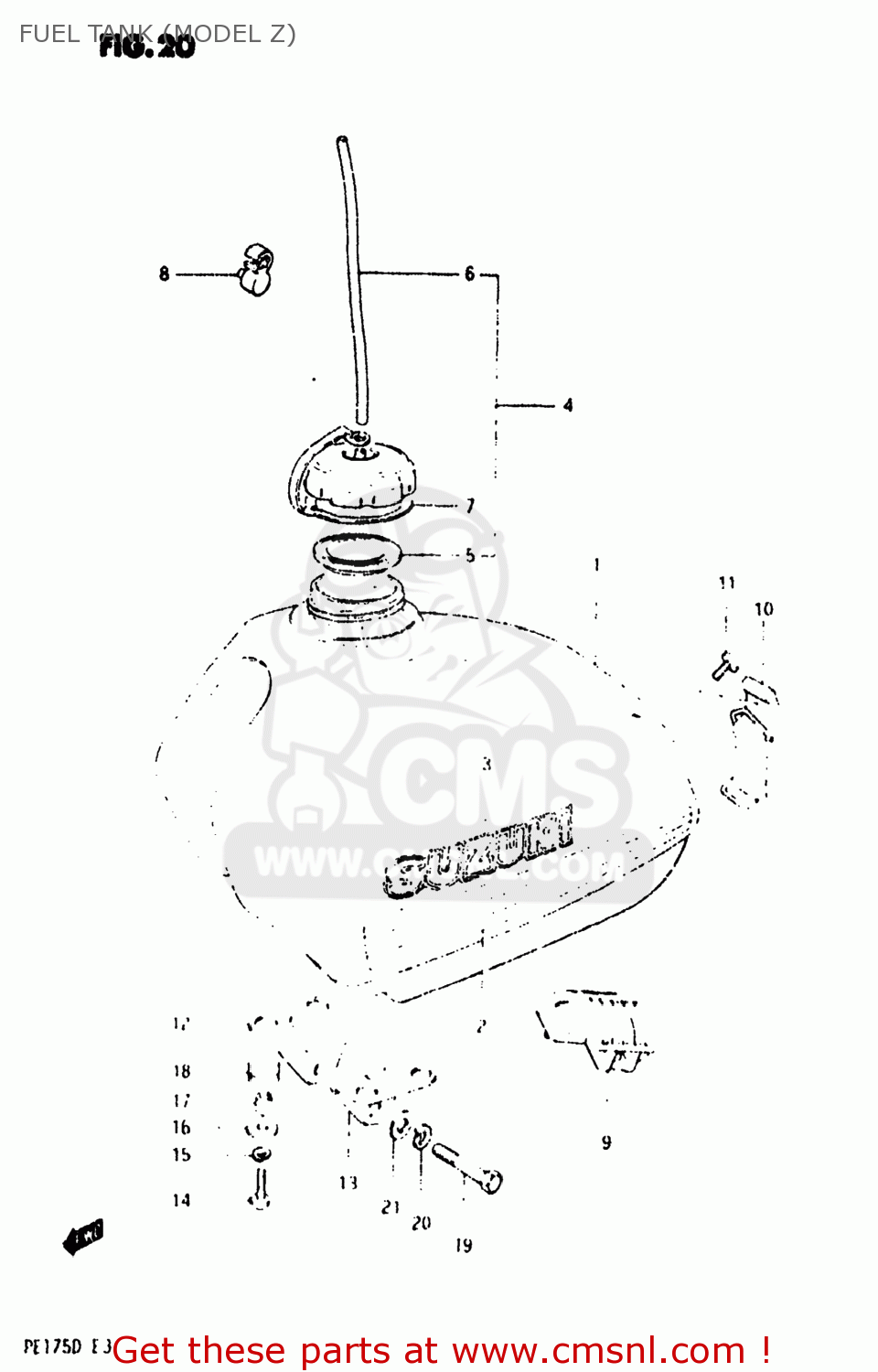

Fuel tank (model z) diagram PE175 1982 (Z) USA (E03)
FUEL TANK (MODEL Z) PE175 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410040620163
ref: 1
TANK ASSEMBLY,FUEL
€ 0.00
2
681104062067H
ref: 2
TAPE SET,FUEL TANK
€ 0.00
3
681114021064D
ref: 3
EMBLEM
€ 12.50
4
4420040500
ref: 4
CAP,FUEL TANK
€ 15.00
5
4424841300
ref: 5
GASKET,FUEL TANK CAP (NAS)
€ 6.00
6
0934305129
ref: 6
44420-44AR0
HOSE
€ 13.00
7
4448741300
ref: 7
BAND,FUEL TANK CAP
€ 3.00
8
4448640200
ref: 8
CLAMP,BREATHER HOSE
€ 2.50
9
4454114400
ref: 9
CUSHION,FUEL TANK
€ 0.00
10
4456014102
ref: 10
44560-02B00
BAND,FUEL TANK,REAR
€ 9.50
11
0912506029
ref: 11
SCREW(6X18)
€ 2.50
12
4452040500
ref: 12
BRACKET,FUEL TANK,LOWER
€ 10.50
13
4453140500
ref: 13
BRACKET,FUEL TANK
€ 10.00
14
0211206258
ref: 14
02112-06257
SCREW
€ 2.00
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
0916006004
ref: 16
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
17
0918006076
ref: 17
SPACER(6.8X12X11)
€ 3.00
18
0932011008
ref: 18
CUSHION
€ 3.00
19
0110708808
ref: 19
01500-0880B
HEXAGON BOLT 8X80
€ 3.50
20
0832121088
ref: 20
08321-01087
LOCK WASHER
€ 2.00
21
0832211088
ref: 21
08322-01087
WASHER
€ 2.00
