FRAME COVER (MODEL Z)
PE175 1982 (Z) USA (E03)

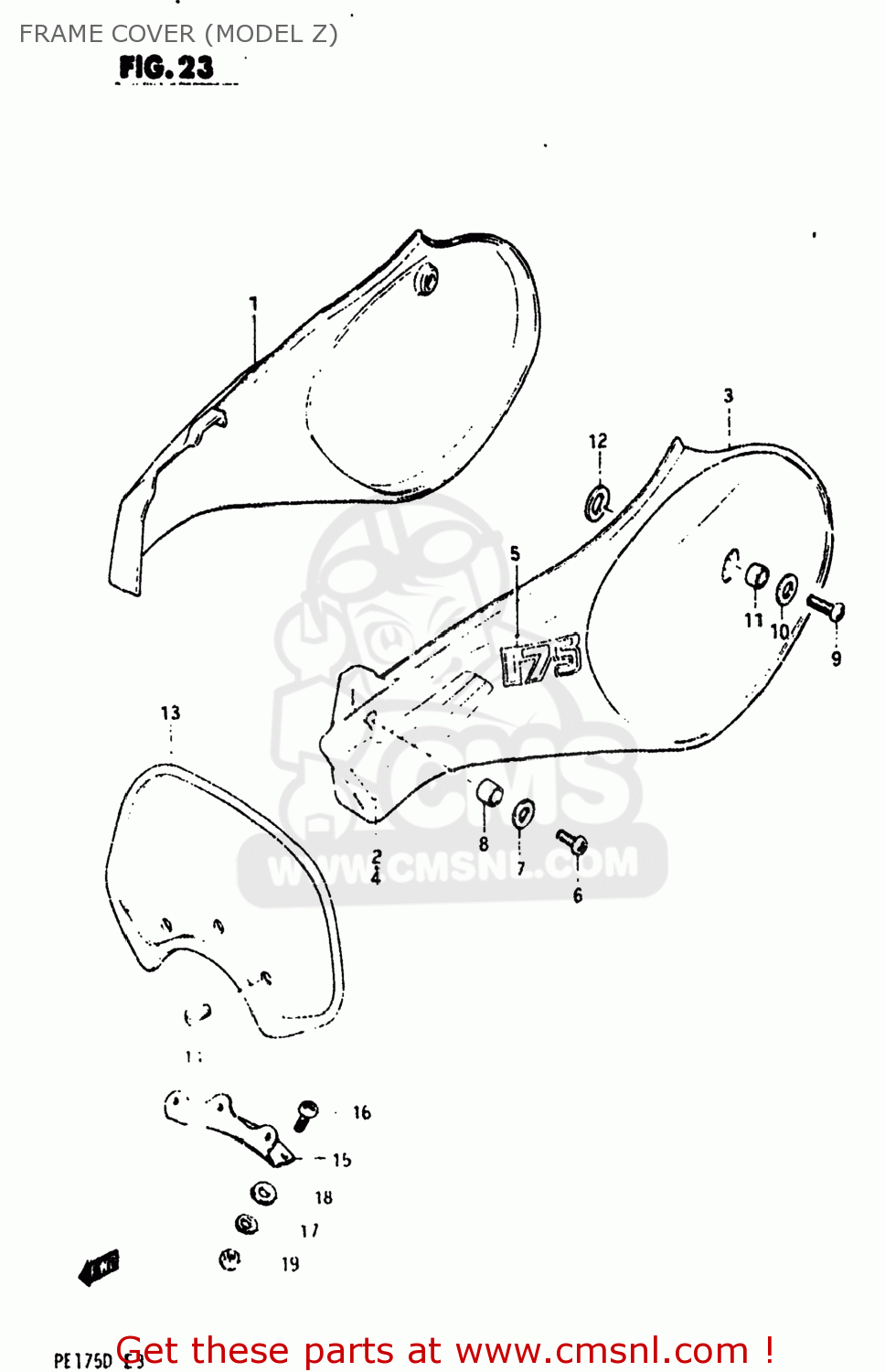

Frame cover (model z) diagram PE175 1982 (Z) USA (E03)
FRAME COVER (MODEL Z) PE175 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711114400163
ref: 1
47111-14400-13L
COVER,FRAME,RIGHT
€ 81.00
2
681361440067H
ref: 2
TAPE,FRAME COVER,RIGHT
€ 29.50
3
4721114400163
ref: 3
47211-14400-13L
COVER,FRAME,LEFT
€ 81.00
4
681461440067H
ref: 4
TAPE,FRAME COVER,LEFT
€ 29.50
5
681311440064D
ref: 5
EMBLEM
€ 3.00
6
0214206207
ref: 6
SCREW
€ 2.00
7
0916006007
ref: 7
09160-06084
WASHER
€ 2.00
8
0918006055
ref: 8
SPACER(6.3X9.3X16.5)
€ 4.00
9
0214206167
ref: 9
SCREW
€ 2.00
10
0916006007
ref: 10
09160-06084
WASHER
€ 2.00
11
0918006073
ref: 11
09180-06306
SPACER
€ 2.00
12
0916810024
ref: 12
GASKET
€ 2.00
13
9491114400
ref: 13
PLATE,FRONT NUMBER
€ 0.00
14
0214206108
ref: 14
02142-06107
SCREW
€ 2.00
15
9492141520
ref: 15
BRACKET FR NUM PLATE
€ 0.00
16
0211205128
ref: 16
02112-05127
SCREW
€ 2.50
17
0832121058
ref: 17
08321-0105A
LOCK WASHER
€ 2.00
18
0832221058
ref: 18
08322-01057
WASHER
€ 2.50
19
0831011058
ref: 19
08310-00057
NUT
€ 2.50
