FRONT FORK (MODEL Z)
PE175 1982 (Z) USA (E03)

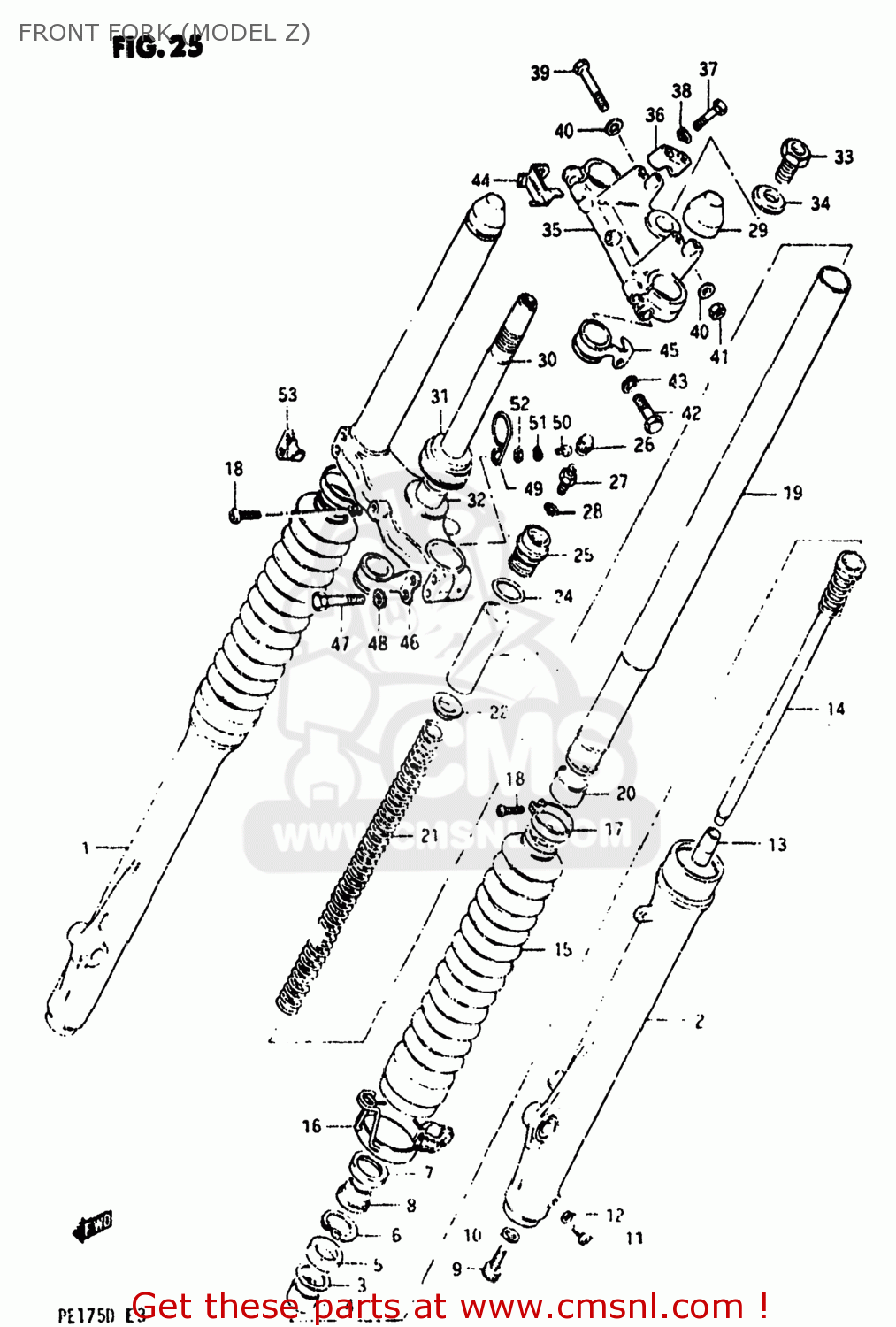

Front fork (model z) diagram PE175 1982 (Z) USA (E03)
FRONT FORK (MODEL Z) PE175 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
511001440008C
ref: 0
DAMPER SET
€ 0.00
1
5113114400
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114114400
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5115814100
ref: 3
WASHER(40X50X2.3)
€ 2.50
4
5116714100
ref: 4
51167-13A00
METAL,SLIDE
€ 7.00
5
5115340300
ref: 5
SEAL,OIL
€ 11.50
6
5115640301
ref: 6
RING,STOPPER
€ 4.50
7
5114940301
ref: 7
CASE,DUST SEAL
€ 12.50
8
5117340301
ref: 8
SEAL,DUST
€ 12.50
9
5114740300
ref: 9
BOLT,CYLINDER
€ 5.50
10
5114840300
ref: 10
GASKET,CYLINDER (NAS)
€ 2.50
11
0211204088
ref: 11
02112-04087
SCREW
€ 1.50
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
5119514100
ref: 13
PIECE,OIL LOCK
€ 8.50
14
5114614400
ref: 14
CYLINDER,FRONT FORK
€ 0.00
15
5157140300
ref: 15
BOOT
€ 31.50
16
5157214400
ref: 16
BAND,FORK COVER BOOT
€ 26.50
17
5157540300
ref: 17
51575-44B00
BAND,BOOT
€ 9.00
18
0211204108
ref: 18
02112-04107
SCREW 4X10
€ 2.00
19
5111014400
ref: 19
TUBE,FORK,INNER
€ 124.00
20
5112114100
ref: 20
PISTON
€ 10.50
21
5117114400
ref: 21
SPRING,FRONT FORK
€ 62.50
22
5117240300
ref: 22
GUIDE
€ 5.00
23
5117614400
ref: 23
SPACER,FRONT FORK SPRING
€ 3.00
24
5111740300
ref: 24
O RING
€ 2.50
25
5135114310
ref: 25
CAP,FORK INNER TUBE
€ 31.50
26
5129449000
ref: 26
CAP,VALVE
€ 22.50
27
5129314200
ref: 27
51169-14200
VALVE,FRONT FORK AIR
€ 15.50
28
5111714210
ref: 28
09280-06005
O-RING
€ 2.50
29
5118941220
ref: 29
CAP
€ 6.00
30
514101440008C
ref: 30
51410-14410-08C
STEM,STEERING
€ 83.50
31
0926530005
ref: 31
09265-30009
BEARING
€ 49.50
32
0821130402
ref: 32
09181-30184
WASHER,THRUST
€ 4.00
33
5135141320
ref: 33
BOLT
€ 8.50
34
5135641310
ref: 34
WASHER
€ 6.00
35
513111440008C
ref: 35
HEAD,STEERING STEM
€ 96.50
36
562114030008C
ref: 36
HOLDER,HANDLEBAR
€ 7.00
37
0110708358
ref: 37
01500-0835B
BOLT
€ 3.50
38
0832121088
ref: 38
08321-01087
LOCK WASHER
€ 2.00
39
0110708508
ref: 39
01500-08507
BOLT 8X50
€ 3.00
40
0832221088
ref: 40
08322-01087
WASHER
€ 2.00
41
0831012088
ref: 41
08310-00087
NUT
€ 2.00
42
0110710458
ref: 42
01500-1045A
BOLT
€ 2.00
43
0832121108
ref: 43
08321-01107
LOCK WASHER
€ 2.00
44
9641040630
ref: 44
BRACKET,TOOL FITTING,UPPER
€ 4.00
45
5862140500
ref: 45
GUIDE,CABLE
€ 8.00
46
5862140301
ref: 46
CLIP,CABLE
€ 14.50
47
0110708458
ref: 47
01500-08453
BOLT 8X45
€ 2.50
48
0832121088
ref: 48
08321-01087
LOCK WASHER
€ 2.00
49
5145531010
ref: 49
CLIP
€ 5.00
50
0211206148
ref: 50
SCREW
€ 2.00
51
0832121068
ref: 51
08321-01067
LOCK WASHER
€ 2.50
52
0832221068
ref: 52
08322-01067
WASHER
€ 2.00
53
9642141401
ref: 53
BRACKET,TOOL FITTING,LOWER
€ 10.50
