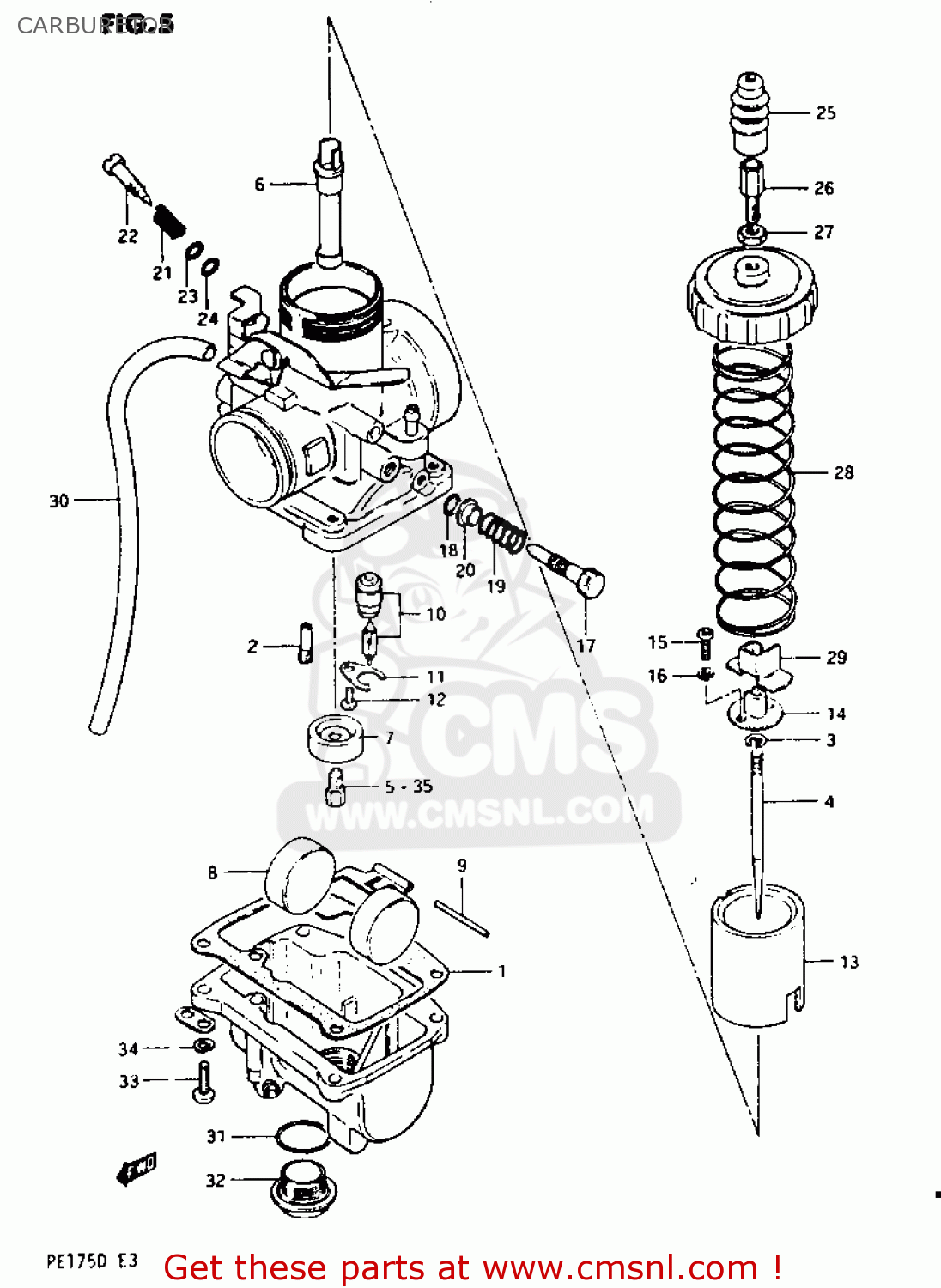

CARBURETOR

ref

part #

description

quantity

1

1320014400
ref: 1

CARBURETOR ASSEMBLY (VM34)

€ 300.50

1

1325140230
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

2

0949225005
ref: 2

JET,PILOT(25)

€ 6.50

3

1339410010
ref: 3

CLIP

€ 4.50

4

1338341510
ref: 4

NEEDLE,JET

€ 17.00

5

0949150008
ref: 5

JET,MAIN(250)

€ 12.50

6

0949400317
ref: 6

JET,NEEDLE

€ 27.00

7

1333140200
ref: 7

RING,MAIN JET FIXING

€ 8.00

8

1325232010
ref: 8

FLOAT

€ 25.50

9

1325401010
ref: 9

PIN,FLOAT

€ 3.00

10

1337040600
ref: 10

VALVE ASSY,NEEDLE

€ 48.50

11

1337339110
ref: 11

PLATE

€ 6.50

12

0211204068
ref: 12

SCREW 4X6

€ 2.00

13

1355141520
ref: 13

VALVE,THROTTLE

€ 63.00

14

1358140200
ref: 14

CONNECTOR

€ 7.00

15

0211203087
ref: 15

SCREW

€ 1.50

16

0916203001
ref: 16

WASHER,LOCK

€ 1.50

17

1326741640
ref: 17

SCREW,THROTTLE STOP

€ 15.00

18

1327802340
ref: 18

O RING

€ 1.50

19

1326831011
ref: 19

SPRING,THROTTLE STOP

€ 7.50

20

1329134010
ref: 20

COVER

€ 5.50

21

1327196110
ref: 21

SPRING

€ 3.50

22

1326941640
ref: 22

SCREW,PILOT AIR

€ 11.50

23

1329141640
ref: 23

WASHER,PILOT AIR SCREW

€ 3.50

24

1327845010
ref: 24

O RING

€ 5.00

25

1368141510
ref: 25

CAP,CABLE ADJUSTER

€ 11.00

26

1357741612
ref: 26

ADJUSTER,CABLE

€ 8.00

27

1366116600
ref: 27

NUT

€ 5.00

28

1357341610
ref: 28

SPRING,THROTTLE VALVE RETURN

€ 8.50

29

1362940200
ref: 29

COVER,HOLDER

€ 4.00

30

1368345070
ref: 30

HOSE

€ 10.00

31

0928020003
ref: 31

O RING(D:1.5,ID:19.5)

€ 2.50

32

1324740200
ref: 32

PLUG

€ 9.50

33

0211205168
ref: 33

SCREW

€ 2.50

34

0832121057
ref: 34

LOCK WASHER

€ 2.00

35-1

0949146001
ref: 35-1
OPT

JET,MAIN(230)

€ 6.50

35-2

0949148003
ref: 35-2
OPT

JET,MAIN(240)

€ 13.00

35-3

0949152001
ref: 35-3
OPT

JET

€ 7.50

35-4

0949154002
ref: 35-4
OPT

JET,MAIN(270)

€ 11.50

35-5

0949156001
ref: 35-5
OPT

JET

€ 14.50
