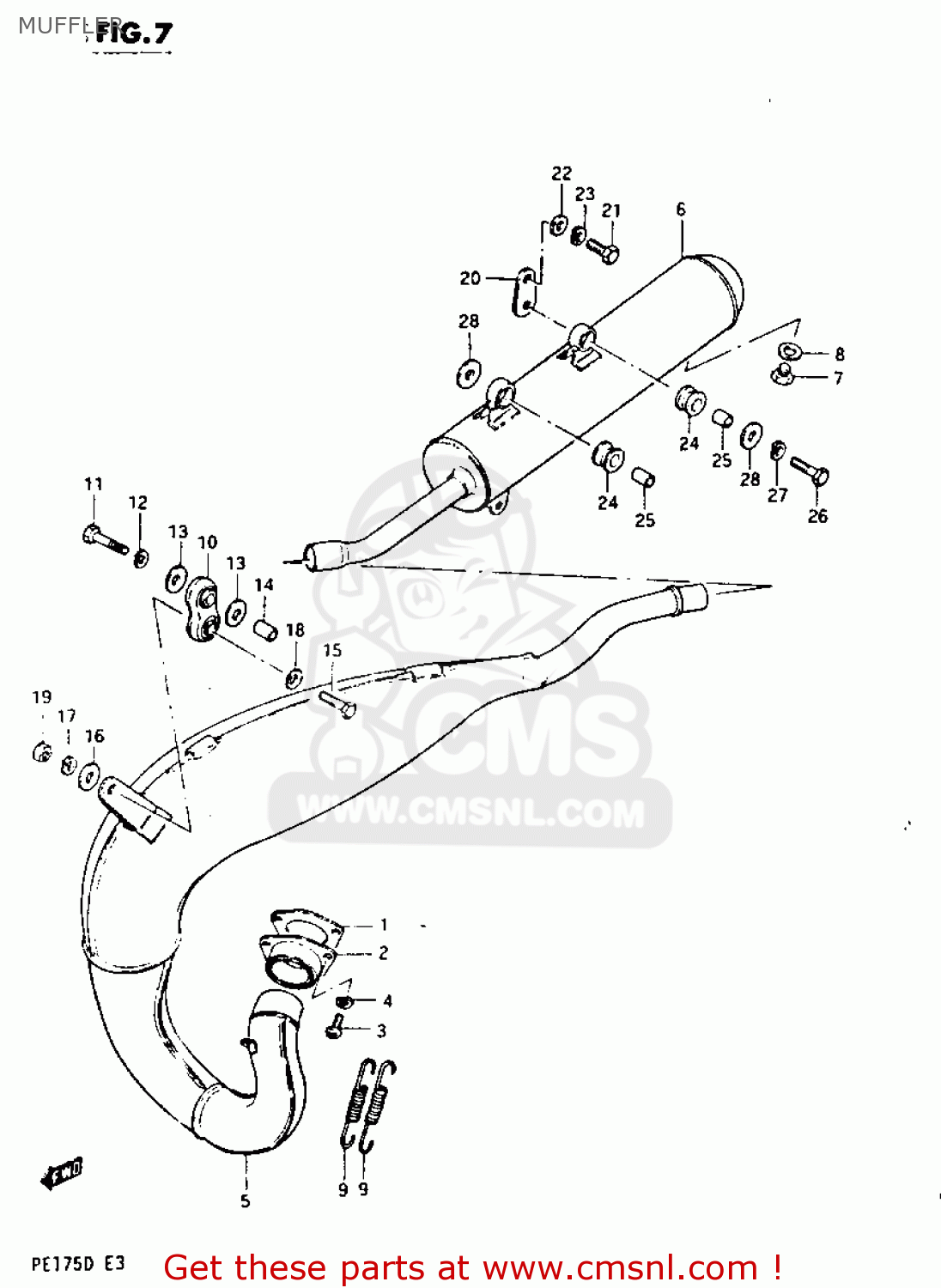

MUFFLER

ref

part #

description

quantity

1

1418116300
ref: 1

GASKET,EXHAUST PIPE (MCA)

€ 4.00

2

1417016301
ref: 2

FLANGE,EXHAUST PIPE

€ 70.50

3

0211206207
ref: 3

SCREW

€ 2.00

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

1431014420H01
ref: 5

BODY,MUFFLER

€ 472.50

6

1430314420H01
ref: 6

MUFFLER ASSEMBLY,SECOND

€ 66.50

7

0924712103
ref: 7

PLUG(12X9)

€ 3.50

8

0916812002
ref: 8

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

9

0944311002
ref: 9

SPRING

€ 4.50

10

1477040000
ref: 10

DAMPER,MUFFLER

€ 139.00

11

0110708508
ref: 11

BOLT 8X50

€ 3.00

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0916008035
ref: 13

WASHER

€ 2.00

14

0918008032
ref: 14

SPACER (8.2X12X17)

€ 5.00

15

0110708358
ref: 15

BOLT

€ 3.50

16

0832211088
ref: 16

WASHER

€ 2.00

17

0832121088
ref: 17

LOCK WASHER

€ 2.00

18

0916008035
ref: 18

WASHER

€ 2.00

19

0831012088
ref: 19

NUT

€ 2.00

20-1

1447014410
ref: 20-1
MODEL Z

BRACKET,SECOND MUFFLER

€ 4.50

20-2

1447014410
ref: 20-2
MODEL D

BRACKET,SECOND MUFFLER

€ 4.50

21

0150008207
ref: 21

BOLT

€ 3.00

22

0832211088
ref: 22

WASHER

€ 2.00

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

0932012043
ref: 24

CUSHION

€ 8.00

25

0918008032
ref: 25

SPACER (8.2X12X17)

€ 5.00

26

0110708358
ref: 26

BOLT

€ 3.50

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

0916008002
ref: 28

WASHER (8.5X29X1.6)

€ 2.00
