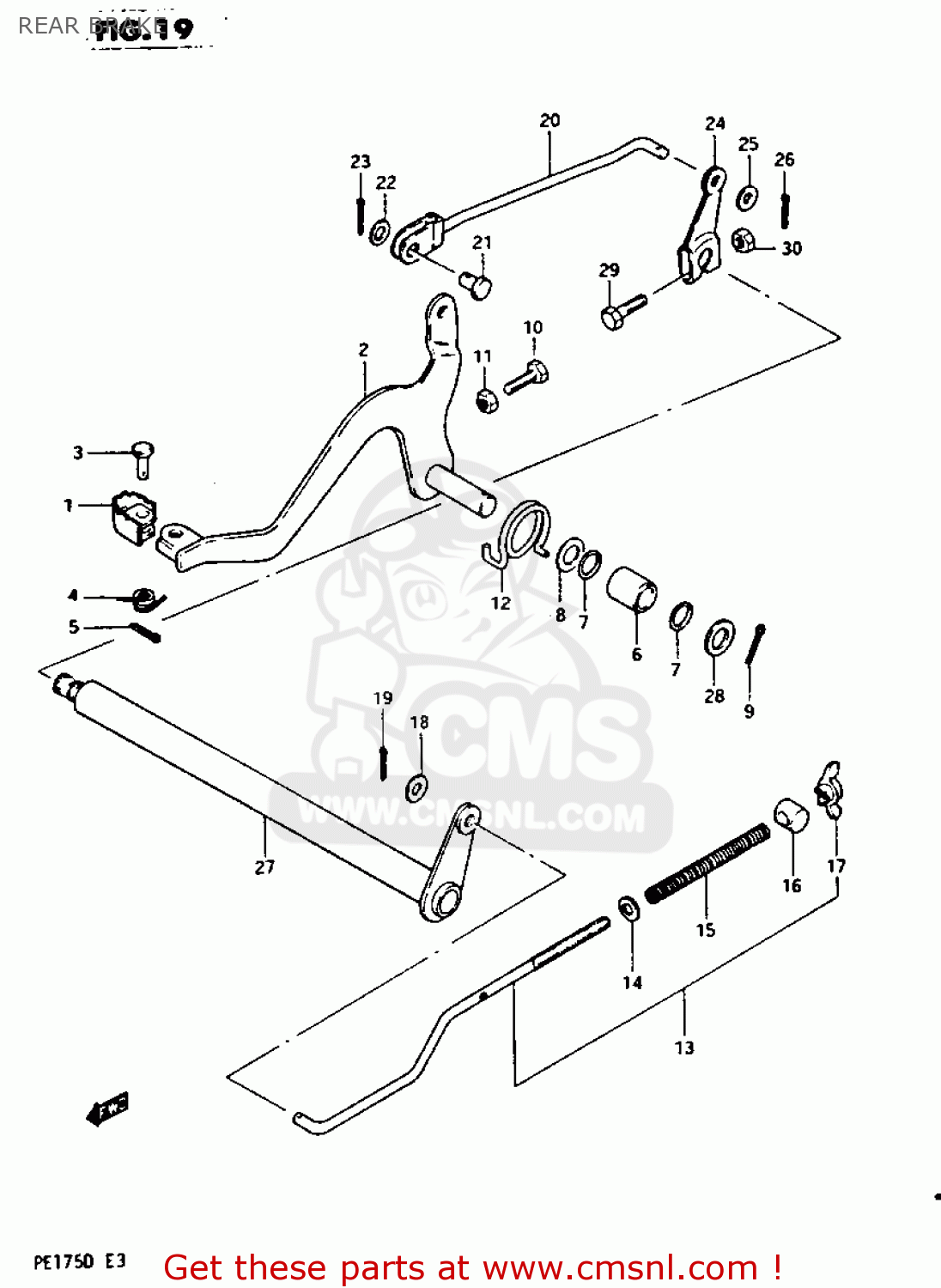

REAR BRAKE

ref

part #

description

quantity

1

4311040610
ref: 1

PEDAL,BRAKE

€ 12.00

2

4312014411
ref: 2

ARM,BRAKE PEDAL

€ 35.00

3

0920006038
ref: 3

PIN

€ 2.00

4

0944411002
ref: 4

SPRING

€ 2.00

7

0928012006
ref: 7

O RING(D:2.2,ID:11.8)

€ 2.50

8

0821112221
ref: 8

WASHER

€ 2.50

9

0411130208
ref: 9

PIN 30X20

€ 1.50

10

0910006009
ref: 10

BOLT(6X23)

€ 1.50

11

0831000067
ref: 11

NUT

€ 2.50

12

0944825007
ref: 12

SPRING

€ 6.00

13

4330014400
ref: 13

ROD ASSEMBLY,REAR BRAKE,REAR

€ 12.00

14

0832211088
ref: 14

WASHER

€ 2.00

15

0944009004
ref: 15

SPRING

€ 2.00

16-1

0920913005
ref: 16-1
MODEL Z

PIN

€ 3.50

16-2

0920913005
ref: 16-2
MODEL D

PIN

€ 3.50

17

0914406055
ref: 17

NUT

€ 0.00

18

0832201067
ref: 18

WASHER

€ 2.00

19

0411120208
ref: 19

PIN 20X20

€ 1.50

20

4334014400
ref: 20

ROD ASSEMBLY,REAR BRAKE FRONT

€ 4.50

21

0920006013
ref: 21

PIN(L:13.5)

€ 2.00

22

0832201067
ref: 22

WASHER

€ 2.00

23

0411120208
ref: 23

PIN 20X20

€ 1.50

24

4336120300
ref: 24

ARM,REAR BRAKE ROD,OUTER

€ 9.50

25

0832201067
ref: 25

WASHER

€ 2.00

26

0411120208
ref: 26

PIN 20X20

€ 1.50

27

4335014400
ref: 27

ARM,REAR BRAKE ROD

€ 26.50

28

0916012017
ref: 28

WASHER(12.1X30X2.3)

€ 2.50

29

0910006050
ref: 29

BOLT

€ 1.50

30

0915906017
ref: 30

NUT

€ 2.50
