MAGNETO

PE175 1983 (D)

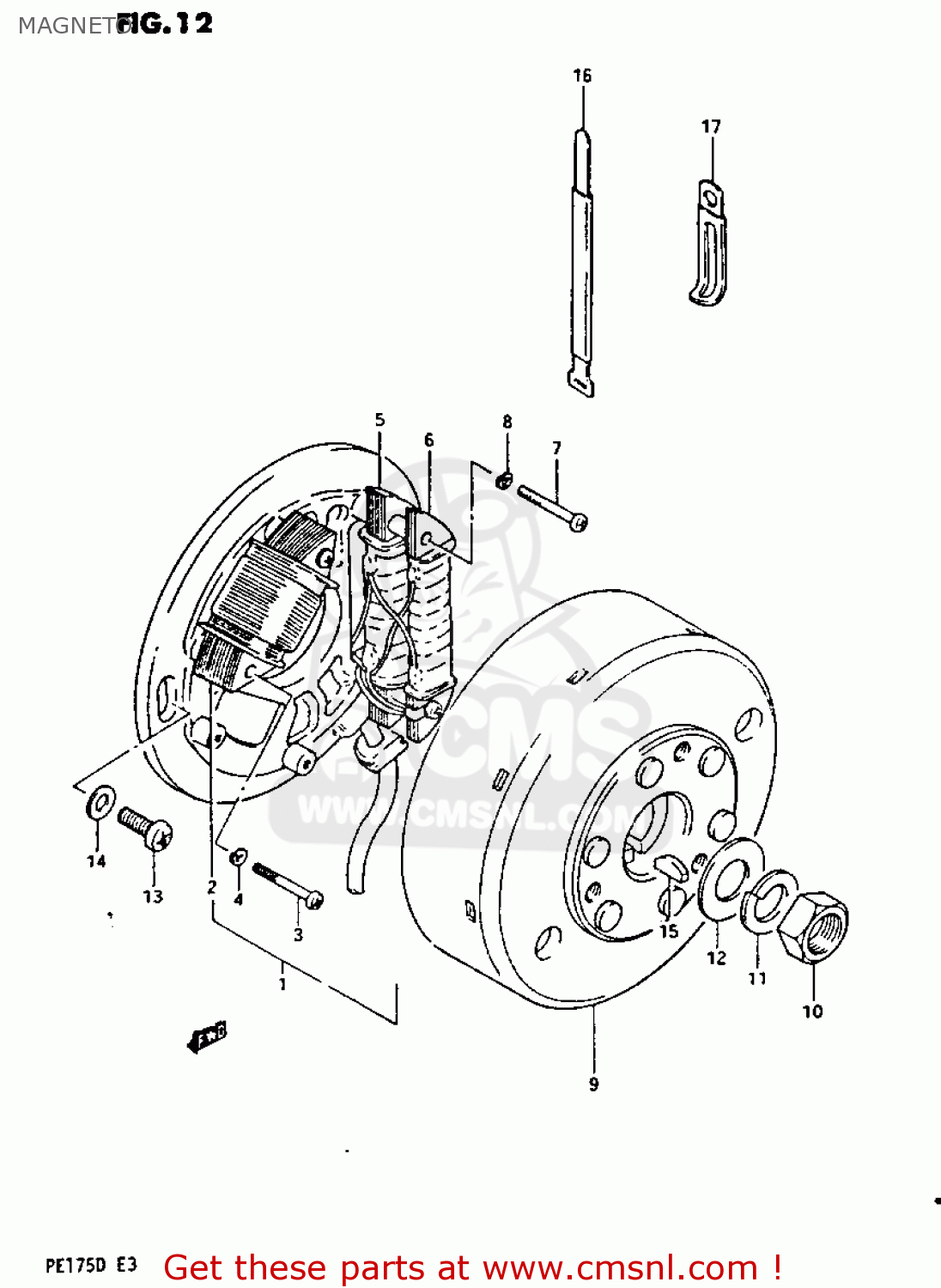

Magneto diagram PE175 1983 (D)

MAGNETO PE175 1983 (D)

MAGNETO PE175 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

3210140521
ref: 1

STATOR ASSEMBLY

€ 275.00

2

3212041420
ref: 2

COIL,LIGHTING

€ 275.00

3

0912504019
ref: 3

SCREW

€ 1.50

4

0832121047
ref: 4

WASHER,LOCK 4M

€ 2.00

5

3214040520
ref: 5

COIL

€ 66.00

6

3215040520
ref: 6

COIL,PRIMARY

€ 56.00

7

0912504019
ref: 7

SCREW

€ 1.50

8

0832121047
ref: 8

WASHER,LOCK 4M

€ 2.00

9

3210240521
ref: 9

ROTOR ASSEMBLY

€ 333.00

10

0914010003
ref: 10

NUT (10MM)

€ 3.50

11

0832121107
ref: 11

WASHER,LOCK,10

€ 2.00

12

0832221108
ref: 12

WASHER

€ 2.50

13

0211206167
ref: 13

SCREW

€ 2.50

14

0832201067
ref: 14

WASHER

€ 2.00

15

0834131049
ref: 15

KEY 4MM

€ 3.50

16

0940711301
ref: 16

CLAMP L:110

€ 6.00

17

0940406412
ref: 17

CLAMP

€ 2.50
