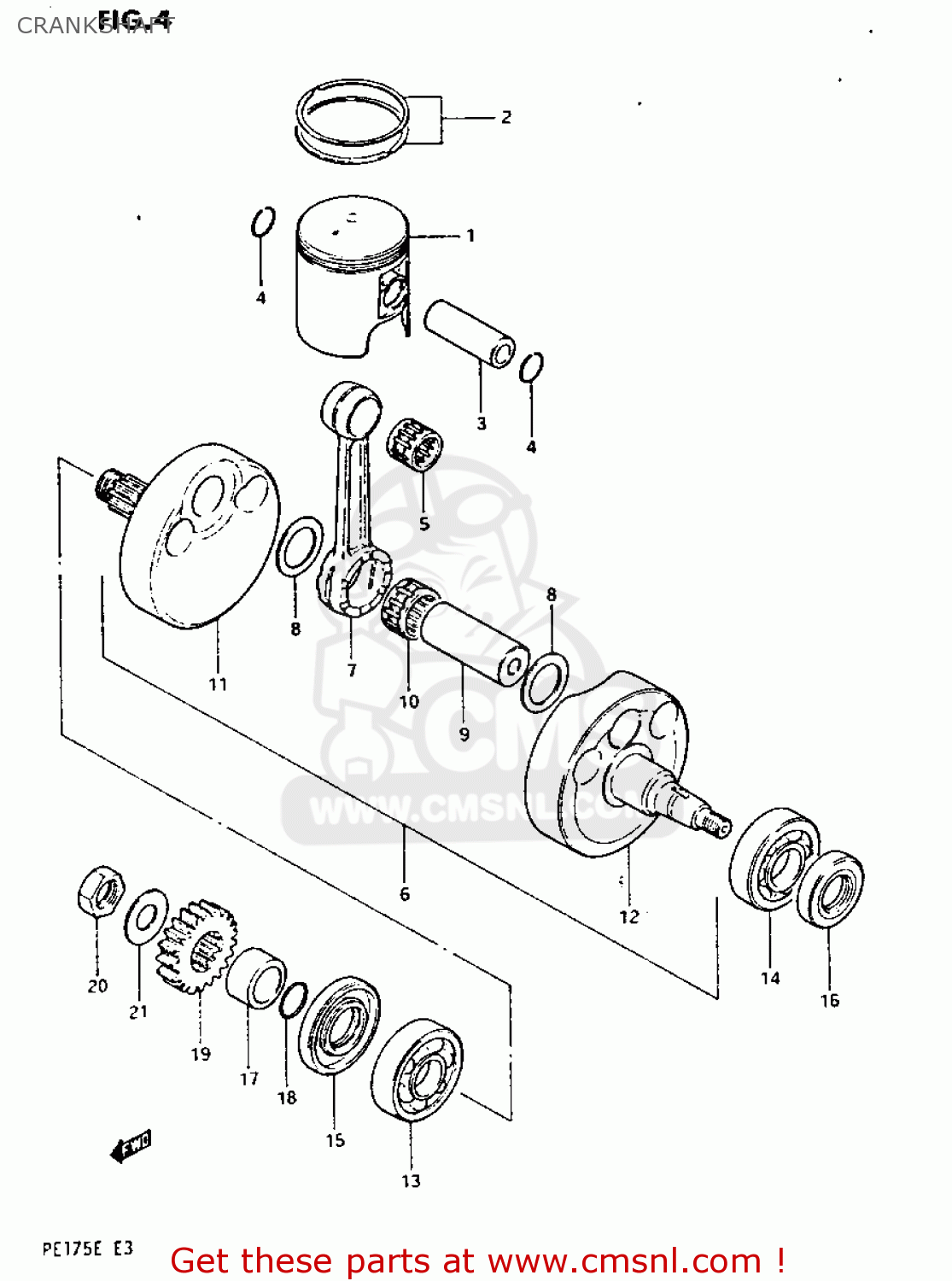

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040502
ref: 1-1

PISTON

€ 60.00

1-2

1211040502025
ref: 1-2
OPT

PISTON

€ 130.00

1-3

1211040502050
ref: 1-3
OPT

PISTON

€ 107.00

2-1

1214040530
ref: 2-1
OPT

RING SET,PISTON(STD)

€ 52.50

2-2

1214040530025
ref: 2-2
OPT

RING SET,PISTON

€ 36.50

2-3

1214040530050
ref: 2-3
POT

RING SET,PISTON

€ 24.00

3

1215178110
ref: 3

PIN,PISTON

€ 15.00

4

0938116001
ref: 4

RING,SNAP 16MM

€ 1.50

5

0926316005
ref: 5

BEARING

€ 15.00

6

1220040500
ref: 6

CRANKSHAFT ASSEMBLY

€ 0.00

7

1216141500
ref: 7

ROD,CONNECTING

€ 109.50

8

0916022010
ref: 8

WASHER(22X35X1)

€ 6.50

9

1221141500
ref: 9

PIN,CRANK

€ 30.50

10

0926322032
ref: 10

BEARING(22X28X16)

€ 22.50

11

1222140500
ref: 11

CRANKSHAFT

€ 0.00

12

1226141501
ref: 12

CRANKSHAFT,LEFT

€ 148.50

13

0926222025
ref: 13

BEARING(22X56X16)

€ 63.50

14

09262250700A0
ref: 14

BEARING(25X52X15)

€ 31.50

15

0928929002
ref: 15

SEAL,OIL(29X47X8)

€ 15.00

16

0928325066
ref: 16

SEAL,OIL(25X44X7)

€ 7.00

17

0918020073
ref: 17

SPACER

€ 6.50

18

0928020004
ref: 18

O RING(D:2.4,ID:19.8)

€ 3.00

19

2111141500
ref: 19

GEAR,PRIMARY DRIVE

€ 31.50

20

0914016002
ref: 20

NUT

€ 4.00

21

0916416002
ref: 21

WASHER

€ 3.00
