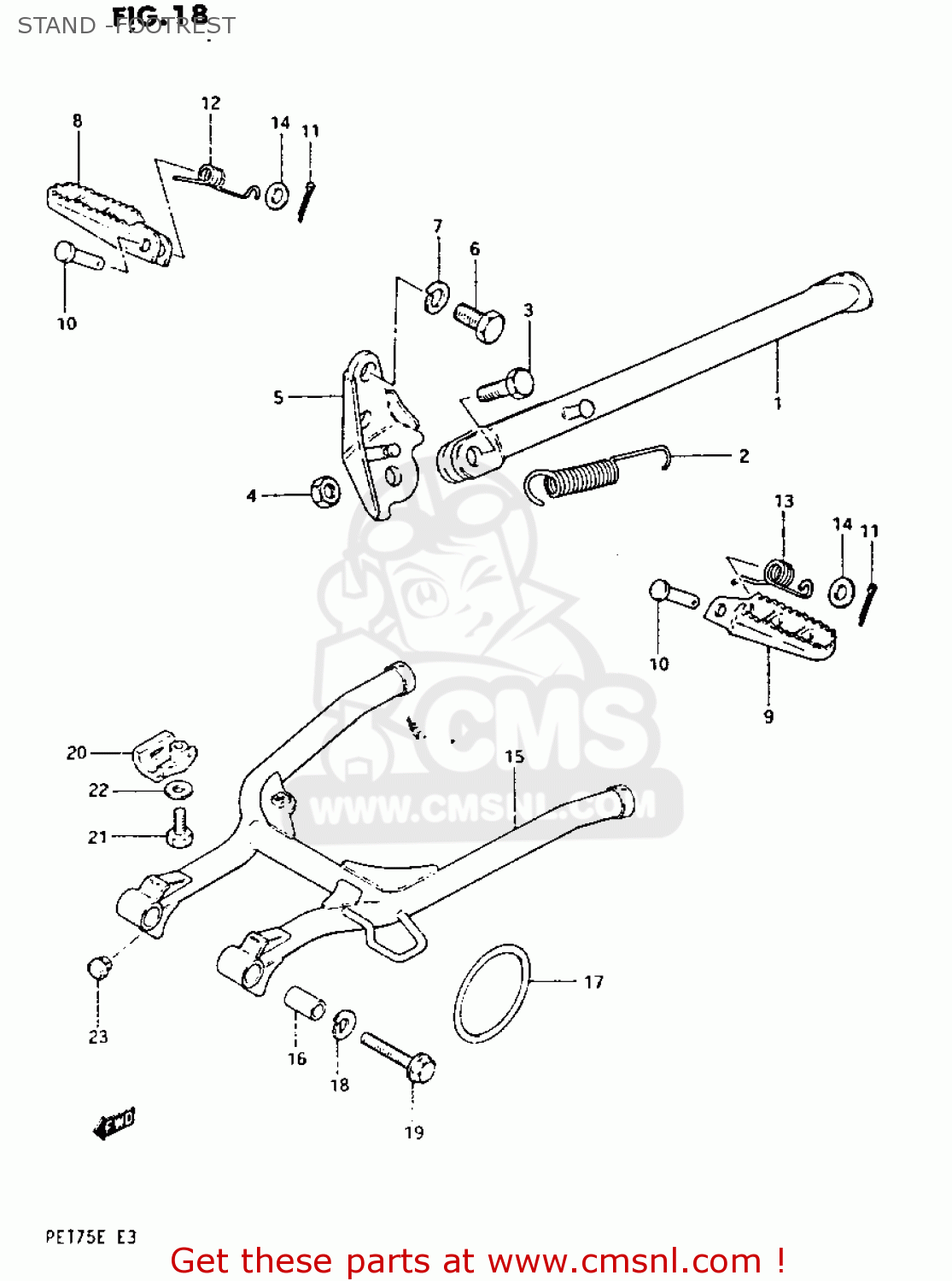

STAND -FOOTREST

ref

part #

description

quantity

1

423101440019F
ref: 1

STAND,SIDE

€ 79.00

2

0944317007
ref: 2

SPRING

€ 4.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831022107
ref: 4

NUT

€ 2.50

5

423301440019F
ref: 5

BRACKET,SIDE STAND

€ 97.50

6

0910010118
ref: 6

BOLT(10X19)

€ 3.00

7

0832121107
ref: 7

WASHER,LOCK,10

€ 2.00

8

4355137202019
ref: 8

FOOTREST,FR,R

€ 31.00

9

4356140401019
ref: 9

FOOTREST,FR,L

€ 24.50

10

0920008035
ref: 10

PIN

€ 6.50

11

0411120208
ref: 11

PIN 20X20

€ 1.50

12

0944814014
ref: 12

SPRING

€ 3.00

13

0944814018
ref: 13

SPRING

€ 4.00

14

0832221088
ref: 14

WASHER

€ 2.00

15

4210014402
ref: 15
OPT

STAND,CENTER

€ 65.00

16

0918010001
ref: 16
OPT

SPACER(10.5X16X30)

€ 3.50

17

4224114400
ref: 17
OPT

O RING CTR STAND

€ 8.00

18

0832121107
ref: 18
OPT

WASHER,LOCK,10

€ 2.00

19

0151710508
ref: 19
OPT

BOLT, RH

€ 3.50

20

4219514400
ref: 20
OPT

PROTECTOR CTR STAND

€ 6.00

21

0150006257
ref: 21
OPT

BOLT

€ 2.00

22

0832201067
ref: 22
OPT

WASHER

€ 2.00

23

0932108005
ref: 23
OPT

CUSHION

€ 2.50
