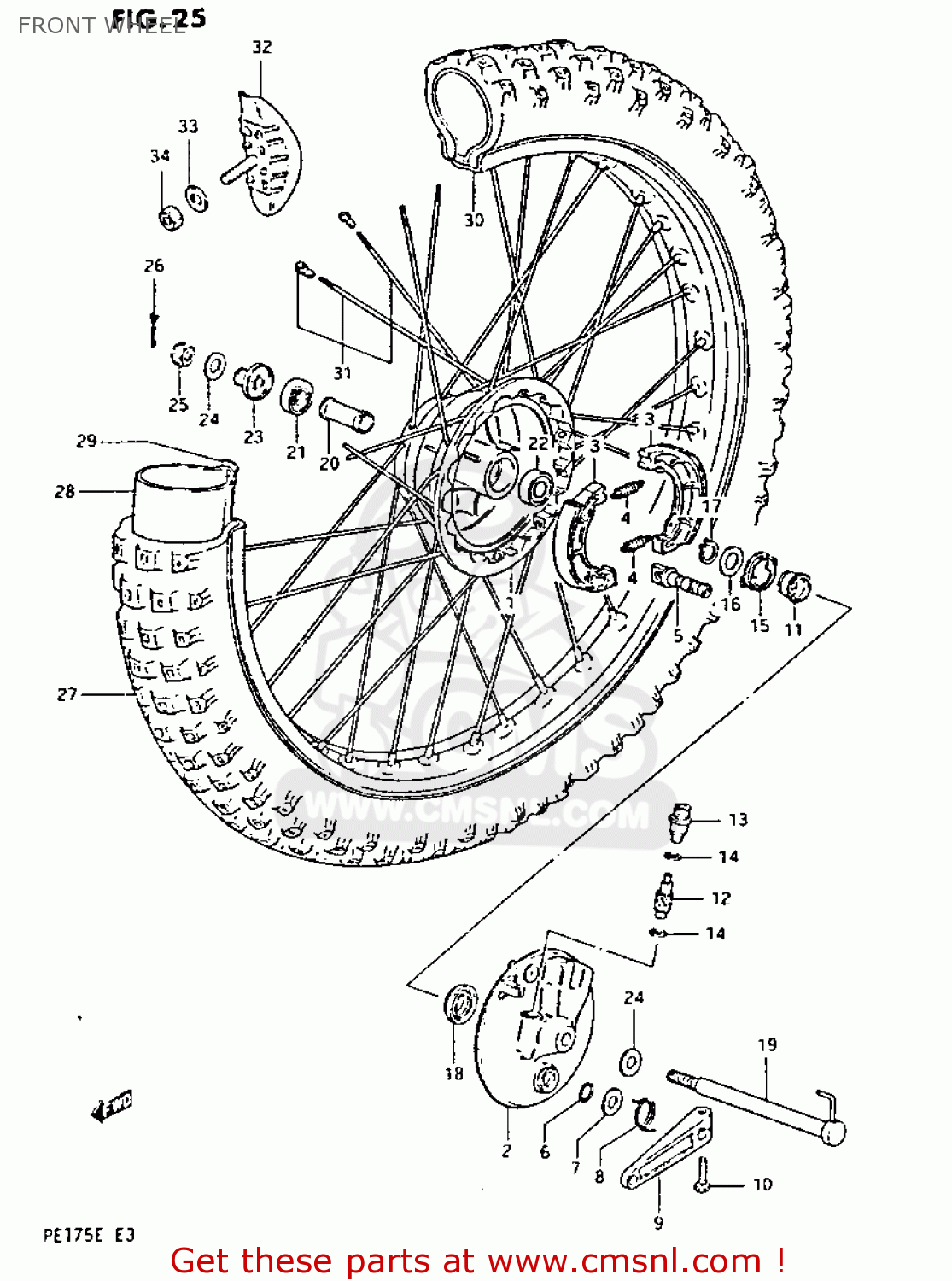

FRONT WHEEL

ref

part #

description

quantity

1

5411014400
ref: 1

HUB,FRONT

€ 162.00

2

5421014400
ref: 2

PANEL,FRONT HUB

€ 88.00

3

5441014400
ref: 3

SHOE,BRAKE (ASB)

€ 21.50

4

0944308021
ref: 4

SPRING

€ 9.00

5

5444114101
ref: 5

CAM,FR BRAKE

€ 16.00

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8

0944832007
ref: 8

SPRING

€ 8.00

9

5445141500
ref: 9

LEVER,FRONT BRAKE CAM

€ 22.50

10

0150006257
ref: 10

BOLT

€ 2.00

11

5461114400
ref: 11

GEAR,SPEEDOMETER

€ 52.00

12

5462114400
ref: 12

PINION,SPEEDOMETER

€ 10.50

13

5463202201
ref: 13

BUSH,SPEEDOMETER PINION OUTER

€ 6.50

14

0916005001
ref: 14

WASHER (5.1X9X0.4)

€ 2.00

15

5466011031
ref: 15

DRIVER,SPEEDOMETER GEAR

€ 31.00

16

0916022001
ref: 16

WASHER(22.5X27X1)

€ 2.00

17

0833111229
ref: 17

CIRCLIP

€ 2.00

18

0928526003
ref: 18

SEAL,OIL(26X38X4)

€ 22.00

19

5471014400
ref: 19

AXLE,FRONT

€ 40.50

20

5473014100
ref: 20

SPACER,FRONT HUB BEARING

€ 23.00

21

0812362027
ref: 21

BEARING

€ 14.50

22

0814362027
ref: 22

BEARING

€ 12.50

23

5474014400
ref: 23

SPACER,FRONT AXLE,RIGHT

€ 9.50

24

0832211128
ref: 24

WASHER

€ 2.00

25

0831441128
ref: 25

NUT, REAR AXLE

€ 2.50

26

0411130308
ref: 26

COTTER PIN

€ 1.50

27-1

5510014100
ref: 27-1
IRC

TIRE,FRONT

€ 0.00

27-2

5510014120
ref: 27-2
BS

TIRE,FRONT

€ 0.00

28

5520016510
ref: 28

TUBE

€ 32.50

29

5526116510
ref: 29

PROTECTOR,WHEEL,INNER

€ 5.00

30

5531114500
ref: 30

RIM,FRONT WHEEL (1.60X21)

€ 124.50

31

5532014111
ref: 31

SPOKE SET,FRONT

€ 41.00

32

6527014300
ref: 32

STOPPER,BEAD

€ 26.00

33

0832211088
ref: 33

WASHER

€ 2.00

34

0831000087
ref: 34

NUT

€ 2.00
