FRAME -SEAT
PE175 1984 (E)

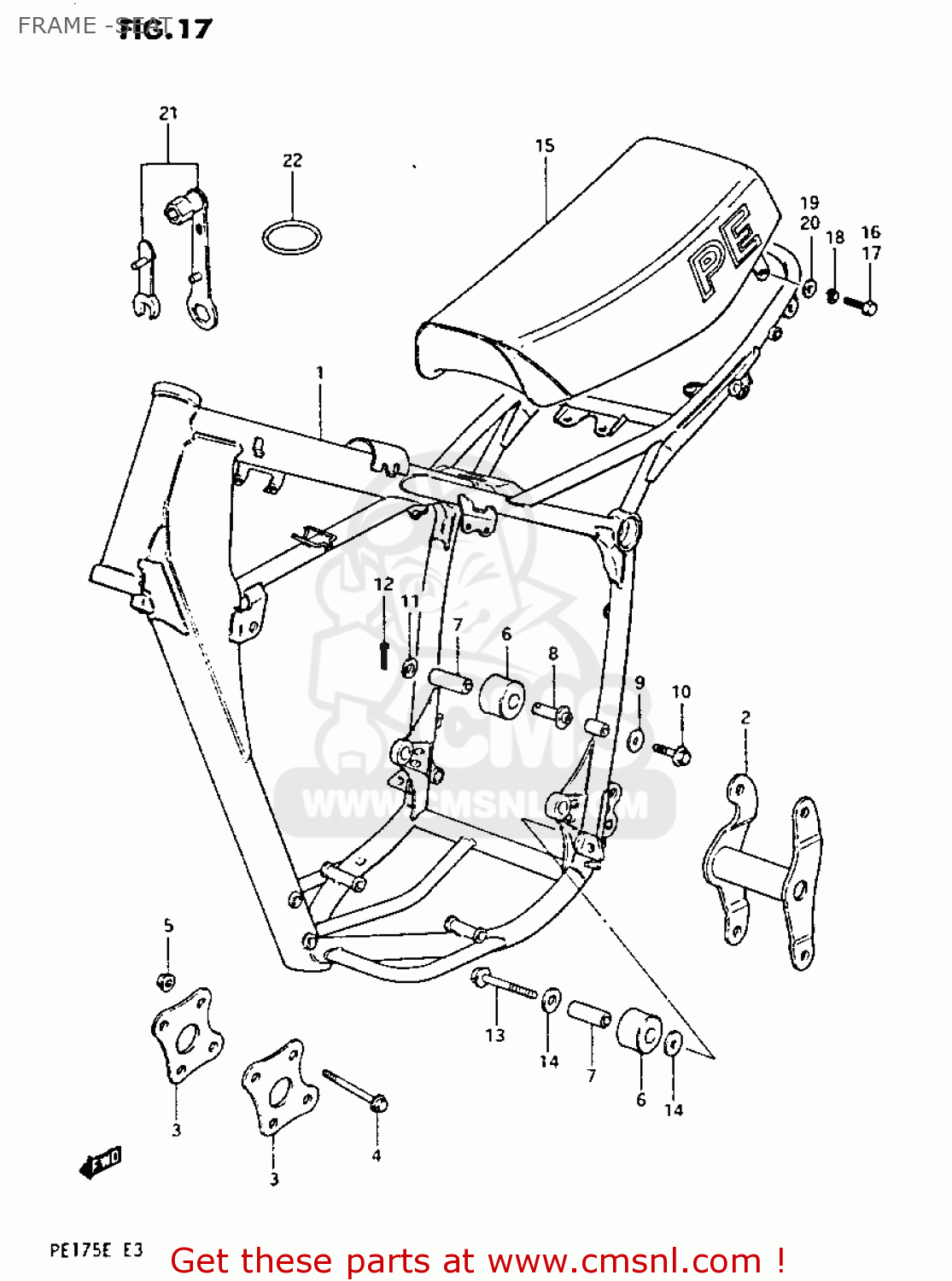

Frame -seat diagram PE175 1984 (E)
FRAME -SEAT PE175 1984 (E)
×
prices are in EUR
ref
part #
description
quantity
1
411001440019F
ref: 1
FRAME
€ 0.00
2
4191014401
ref: 2
PLATE,ENGINE MOUNTING
€ 20.00
3
4199140200
ref: 3
PLATE,ENGINE MOUNTING
€ 13.50
4
0910308037
ref: 4
BOLT(8X67)
€ 6.50
5
0831931087
ref: 5
NUT
€ 2.50
6
4391114200
ref: 6
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
7
4391340400
ref: 7
SPACER,CHAIN LENGTH ROLLER
€ 8.00
8
4391514301
ref: 8
BOSS,CHAIN LENGTH ROLLER
€ 16.50
9
0916006057
ref: 9
WASHER
€ 2.00
10
0151706307
ref: 10
BOLT
€ 2.00
11
0832211128
ref: 11
WASHER
€ 2.00
12
0411125208
ref: 12
PIN 25X20
€ 2.00
13
0910308083
ref: 13
BOLT(8X41)
€ 3.50
14
0916008035
ref: 14
WASHER
€ 2.00
15
451001442054G
ref: 15
SEAT ASSEMBLY
€ 159.00
16
0110708258
ref: 16
BOLT
€ 2.50
17
0110708408
ref: 17
BOLT 8X40
€ 3.00
18
0832121088
ref: 18
LOCK WASHER
€ 2.00
19
0916008033
ref: 19
WASHER (8.5X20X2.6)
€ 1.50
20
0916008007
ref: 20
WASHER (8.7X22X2)
€ 2.00
21
9651040500
ref: 21
SPARK PLUG WRENCH
€ 40.50
22
9643140500
ref: 22
O RING TOOL FITTING
€ 3.50
