CRANKCASE COVER
PE250 1978 (C) USA (E03)

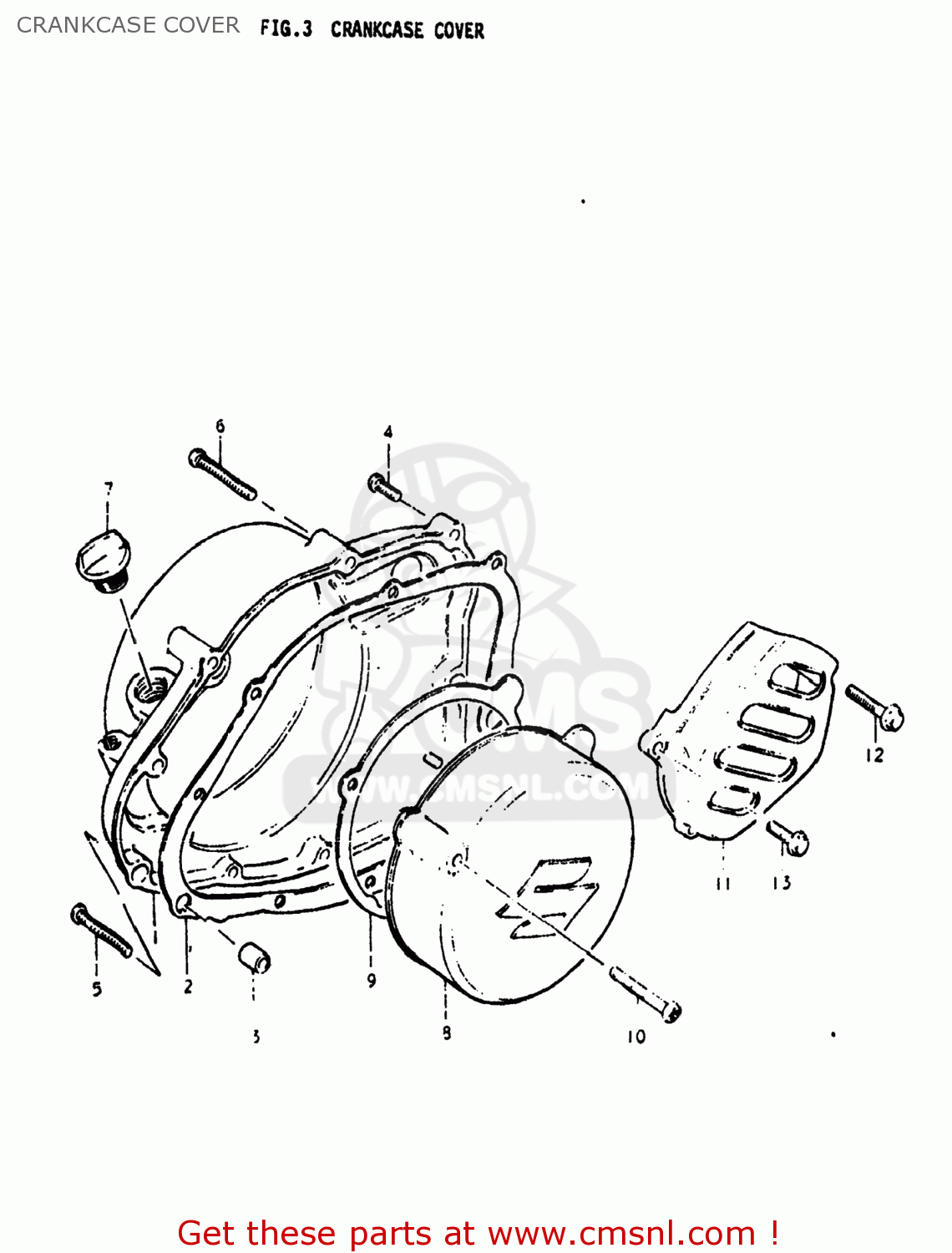

Crankcase cover diagram PE250 1978 (C) USA (E03)
CRANKCASE COVER PE250 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134141400
ref: 1
COVER,CLUTCH
€ 128.50
2
1148241100
ref: 2
11482-41101
GASKET,CLUTCH COVER (MCA)
€ 15.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206208
ref: 4
02112-06207
SCREW
€ 2.00
5
0211206408
ref: 5
02112-06407
SCREW
€ 2.00
6
0211206458
ref: 6
02112-06457
SCREW (6X45)
€ 2.00
7
0925920003
ref: 7
09200-20810
PLUG,OIL FILTER
€ 8.00
8-1
1135141400
ref: 8-1
11351-41403
COVER
€ 149.50
8-2
1135141401
ref: 8-2
11351-41403
COVER
€ 149.50
9-1
1148341100
ref: 9-1
11483-41111
GASKET,MAGNETO COVER (MCA)
€ 8.00
9-2
1148341101
ref: 9-2
11483-41111
GASKET,MAGNETO COVER (NAS)
€ 8.00
10
0211206557
ref: 10
SCREW
€ 2.50
11
1136141400
ref: 11
COVER,ENGINE SPROCKET
€ 72.50
12
0151706458
ref: 12
01550-06457
BOLT,UNDER
€ 2.50
13
0151706308
ref: 13
01550-06307
BOLT
€ 2.00
