HEADLAMP (PE250B)
PE250 1978 (C) USA (E03)

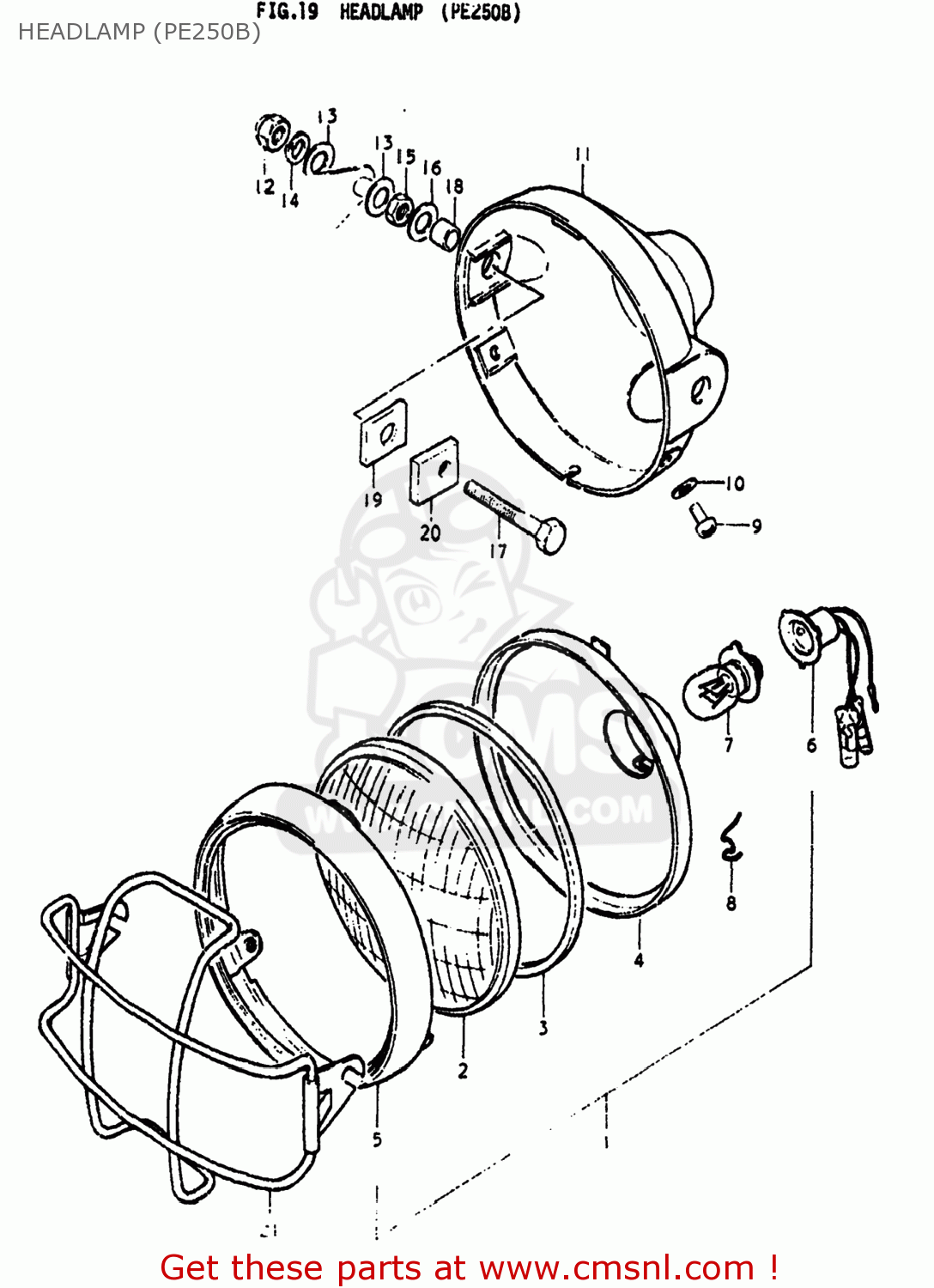

Headlamp (pe250b) diagram PE250 1978 (C) USA (E03)
HEADLAMP (PE250B) PE250 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510041421
ref: 1
LAMP ASSEMBLY,HEAD
€ 48.00
2
3512441420
ref: 2
LENS
€ 15.00
3
3512541420
ref: 3
GASKET (NAS)
€ 3.00
4
3512341420
ref: 4
REFLECTOR,HEADLAMP
€ 17.50
5
3511141421
ref: 5
RIM,HEADLAMP
€ 22.50
6
3517143020
ref: 6
35171-09X50
SOCKET,HEADLAMP
€ 12.50
7
0947106022
ref: 7
BULB(6V15/15W/STANLEY,A3598HA)
€ 6.50
8
3512843020
ref: 8
SPRING
€ 4.00
9
0211204128
ref: 9
02112-0412A
SCREW
€ 1.50
10
0832221048
ref: 10
08322-01047
WASHER
€ 2.00
11
5181141401291
ref: 11
51811-41404-291
HOUSING,HEADLAMP
€ 39.00
12
0831311088
ref: 12
08313-10087
NUT
€ 2.50
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0831012088
ref: 14
08310-00087
NUT
€ 2.00
15
0831012088
ref: 15
08310-00087
NUT
€ 2.00
16
0832221088
ref: 16
08322-01087
WASHER
€ 2.00
17
0910008138
ref: 17
BOLT
€ 1.00
18
0918008030
ref: 18
09180-08187
SPACER (8.8X12X7)
€ 3.50
19
0932912002
ref: 19
CUSHION
€ 3.00
20
5186145000
ref: 20
STAY,HEADLAMP HOUSING
€ 1.00
21
4851041401
ref: 21
GUARD,HEADLAMP
€ 17.50
