REAR WHEEL (PE250B .PE250C)
PE250 1978 (C) USA (E03)

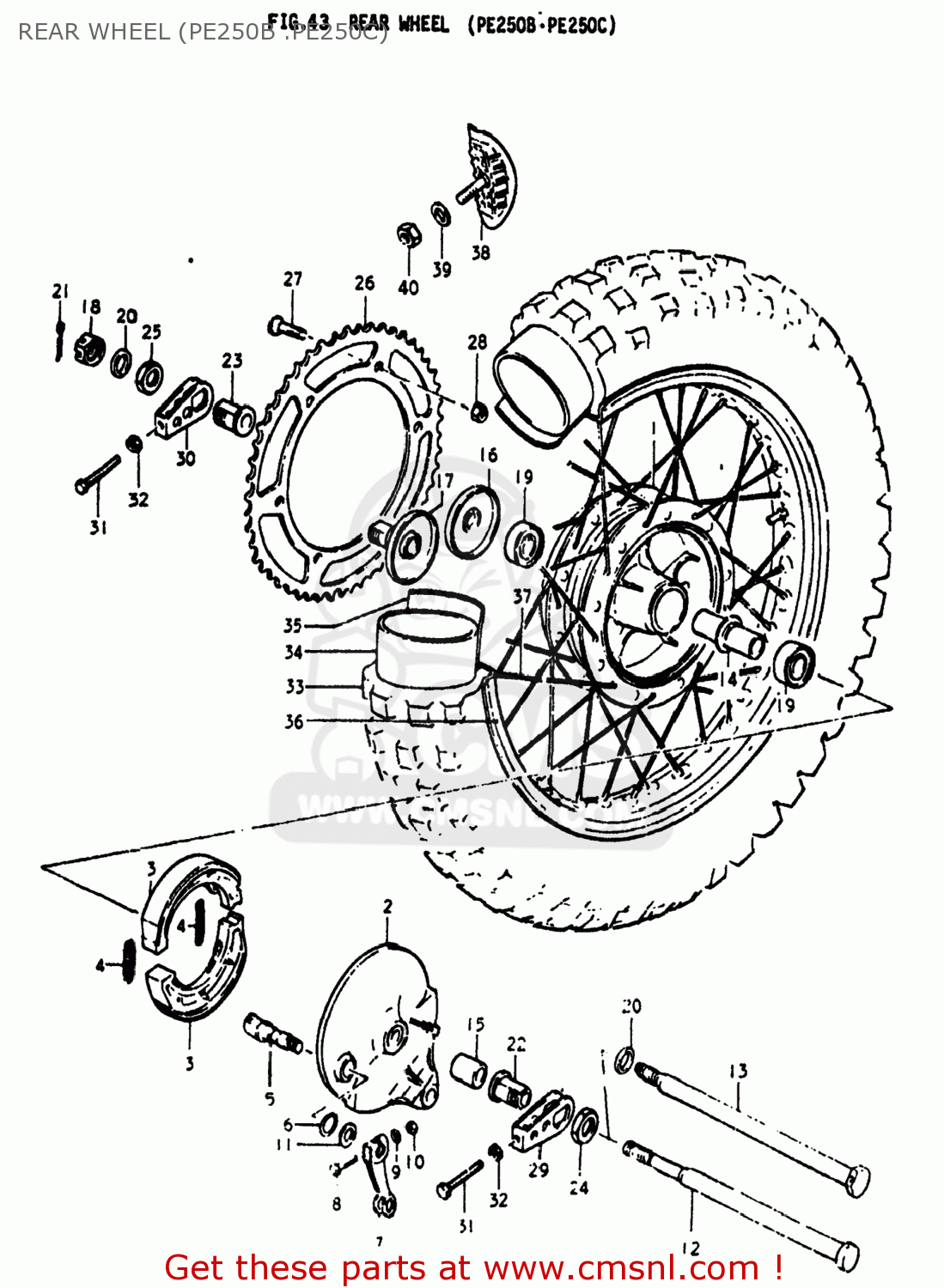

Rear wheel (pe250b .pe250c) diagram PE250 1978 (C) USA (E03)
REAR WHEEL (PE250B .PE250C) PE250 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411041602
ref: 1-1
HUB COMP,REAR
€ 166.50
1-2
6410041820
ref: 1-2
HUB REAR
€ 256.00
1-2
6410041820
ref: 1-2
HUB REAR
€ 256.00
2-1
6421041400
ref: 2-1
PANEL,REAR HUB
€ 65.00
2-2
6421041701
ref: 2-2
PANEL,REAR HUB
€ 116.00
3
5441008002
ref: 3
64400-02830
SHOE,BRAKE
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5
5444008001
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
6445141400
ref: 7
LEVER,REAR BRAKE CAM
€ 7.00
8
0910006050
ref: 8
09100-06150
BOLT
€ 1.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0831011068
ref: 10
08310-00067
NUT
€ 2.50
11
0916015001
ref: 11
09160-15048
WASHER (15X24X1.6)
€ 2.50
12
6471141100
ref: 12
AXLE,REAR
€ 29.50
13
6471141400
ref: 13
AXLE,REAR
€ 21.00
14
6473041101
ref: 14
SPACER,REAR HUB BEARING
€ 11.50
15
0918017044
ref: 15
SPACER
€ 3.50
16
6475041102
ref: 16
SPACER,REAR AXLE
€ 4.50
17
6475041400
ref: 17
SPACER,REAR AXLE
€ 9.50
18
0914114001
ref: 18
NUT
€ 4.50
19
0812362034
ref: 19
08133-62037
BEARING
€ 24.50
20
0916017013
ref: 20
09160-17050
WASHER (17X30X3.2)
€ 2.00
21
0411130408
ref: 21
04111-3040A
PIN 30X40
€ 1.50
22
6478141100
ref: 22
SPACER,CHAIN ADJUSTER
€ 7.00
23
6479141100
ref: 23
SPACER,CHAIN ADJUSTER
€ 14.50
24
0914024007
ref: 24
NUT
€ 4.50
25
0914022003
ref: 25
NUT
€ 10.00
26-1
6451141140
ref: 26-1
64511-41141
SPROCKET,REAR
€ 169.00
26-2
6451141130
ref: 26-2
64511-41131
SPROCKET,REAR
€ 79.50
26-3
6451141150
ref: 26-3
64511-41151
SPROCKET,REAR
€ 61.00
27
0912008003
ref: 27
09120-08004
SCREW
€ 3.00
28
0915908021
ref: 28
NUT
€ 1.50
29
6142041100
ref: 29
ADJUSTER,CHAIN
€ 8.00
30
6141041100
ref: 30
ADJUSTER,CHAIN
€ 10.00
31
0910408006
ref: 31
09104-08034
BOLT
€ 3.00
32
0831012088
ref: 32
08310-00087
NUT
€ 2.00
33
6510041410
ref: 33
TIRE
€ 73.00
34
6520041110
ref: 34
65200-16510
TUBE ASSEMBLY,WHEEL,INNER
€ 16.00
35
6526116510
ref: 35
65261-33030
PROTECTOR,WHEEL,INNER
€ 5.50
36-1
6531141220
ref: 36-1
RIM,REAR WHEEL
€ 119.00
36-2
6531141600
ref: 36-2
RIM,REAR WHEEL
€ 119.00
36-2
6531141600
ref: 36-2
RIM,REAR WHEEL
€ 119.00
37-1
6530041850
ref: 37-1
65300-41851
SPOKE SET,REAR
€ 48.00
37-2
6530041860
ref: 37-2
65300-41861
SPOKE SET,REAR
€ 35.00
38
6527032101
ref: 38
65270-28E00
STOPPER,BEAD
€ 38.00
39
0832211088
ref: 39
08322-01087
WASHER
€ 2.00
40
0831012088
ref: 40
08310-00087
NUT
€ 2.00
