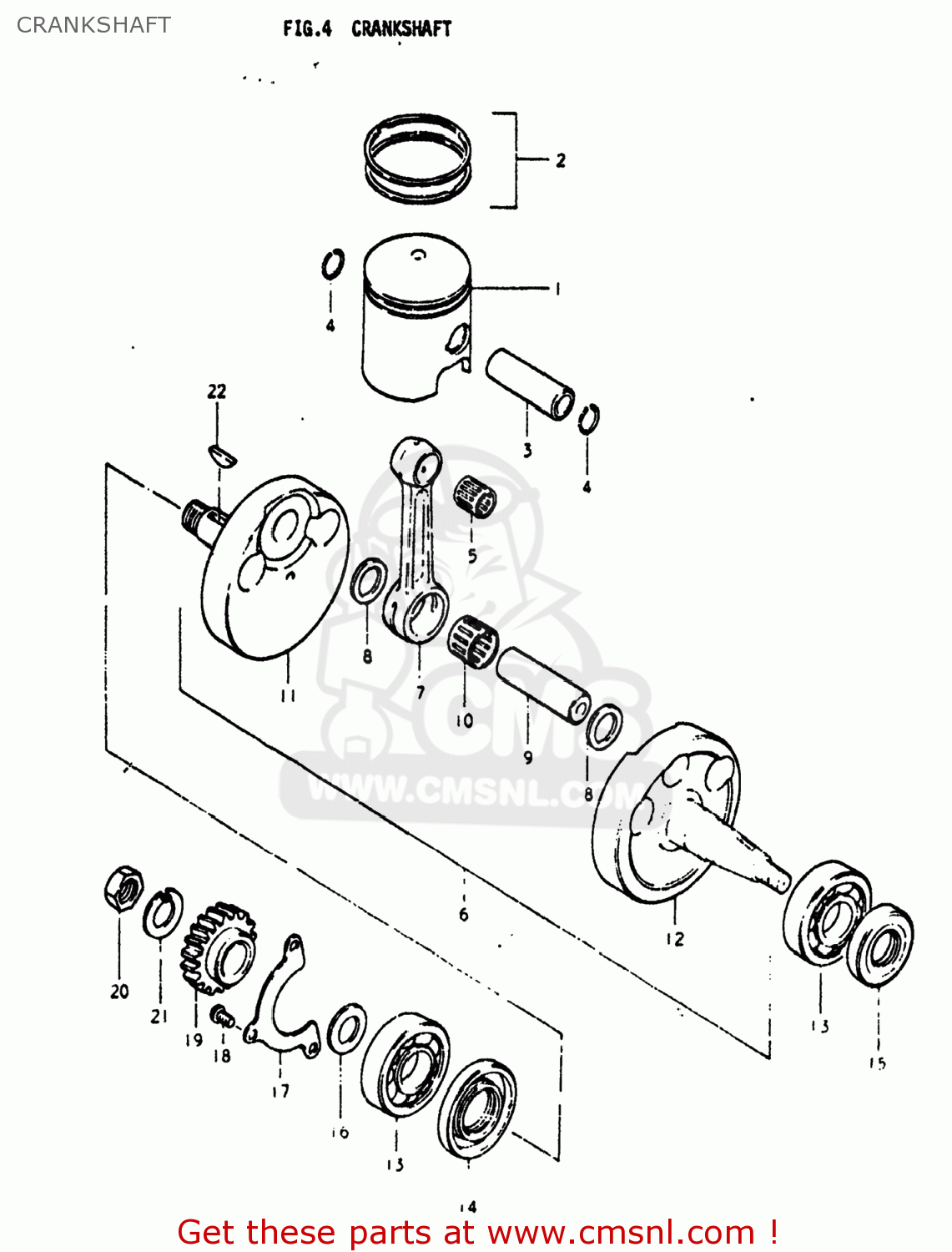

CRANKSHAFT

ref

part #

description

quantity

1-1

1211041600
ref: 1-1
12110-40601

PISTON

€ 69.00

1-2

1211041602
ref: 1-2
12110-40601

PISTON

€ 69.00

1-3

1211041600025
ref: 1-3
12103-40891-025

PISTON

€ 119.50

1-4

1211041602025
ref: 1-4
12103-40891-025

PISTON

€ 119.50

1-5

1211041600050
ref: 1-5
12103-40891-050

PISTON

€ 114.50

1-6

1211041602050
ref: 1-6
12103-40891-050

PISTON

€ 114.50

2-1

1214041600
ref: 2-1
12141-41620

RING SET,PISTON

€ 22.50

2-2

1214041760
ref: 2-2
12141-41600-025

RING SET,PISTON

€ 26.00

2-3

1214041600025
ref: 2-3
12141-41600-025

RING SET,PISTON (OS:0.25)

€ 26.00

2-4

1214041770
ref: 2-4
12141-41600-050

RING SET,PISTON

€ 22.50

2-5

1214041600050
ref: 2-5
12141-41600-050

RING SET,PISTON (OS:0.5)

€ 22.50

3

1215192200
ref: 3
12151-45501

PIN,PISTON (18MM)

€ 14.00

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318011
ref: 5
09263-18016

BEARING(18X23X22)

€ 14.00

6-1

1220041400
ref: 6-1

CRANKSHAFT ASSEMBLY

€ 263.50

6-2

1220041401
ref: 6-2

CRANKSHAFT ASSEMBLY

€ 205.50

7

1216141101
ref: 7
12161-41103

CONNECTING ROD

€ 111.50

8

0916024015
ref: 8

WASHER(24X29X1.5)

€ 7.50

9

1221141101
ref: 9

PIN,CRANK

€ 27.00

10

0926324007
ref: 10
09263-24026

BEARING

€ 62.50

11

1222141600
ref: 11

CRANKSHAFT

€ 95.50

12-1

1226141400
ref: 12-1

CRANKSHAFT,LEFT

€ 69.00

12-2

1226141401
ref: 12-2

CRANKSHAFT,LEFT

€ 75.50

13

0926225047
ref: 13
09262-25084

BEARING

€ 29.00

14

0928335004
ref: 14

SEAL,OIL(35X62X9)

€ 19.50

15

0928324001
ref: 15

SEAL,OIL(24X50X9)

€ 19.00

16

0916020025
ref: 16

WASHER(20X48X1)

€ 2.50

17

1254141100
ref: 17

PLATE

€ 3.50

18

0211206128
ref: 18
02112-06127

SCREW 6X12

€ 2.00

19

2111141100
ref: 19

GEAR,PRIMARY DRIVE

€ 17.50

20

0914018004
ref: 20

NUT

€ 3.00

21

0916618002
ref: 21

WASHER

€ 1.00

22

0834131059
ref: 22

KEY

€ 3.00

all assemblies
