TRANSMISION
PE250 1978 (C) USA (E03)

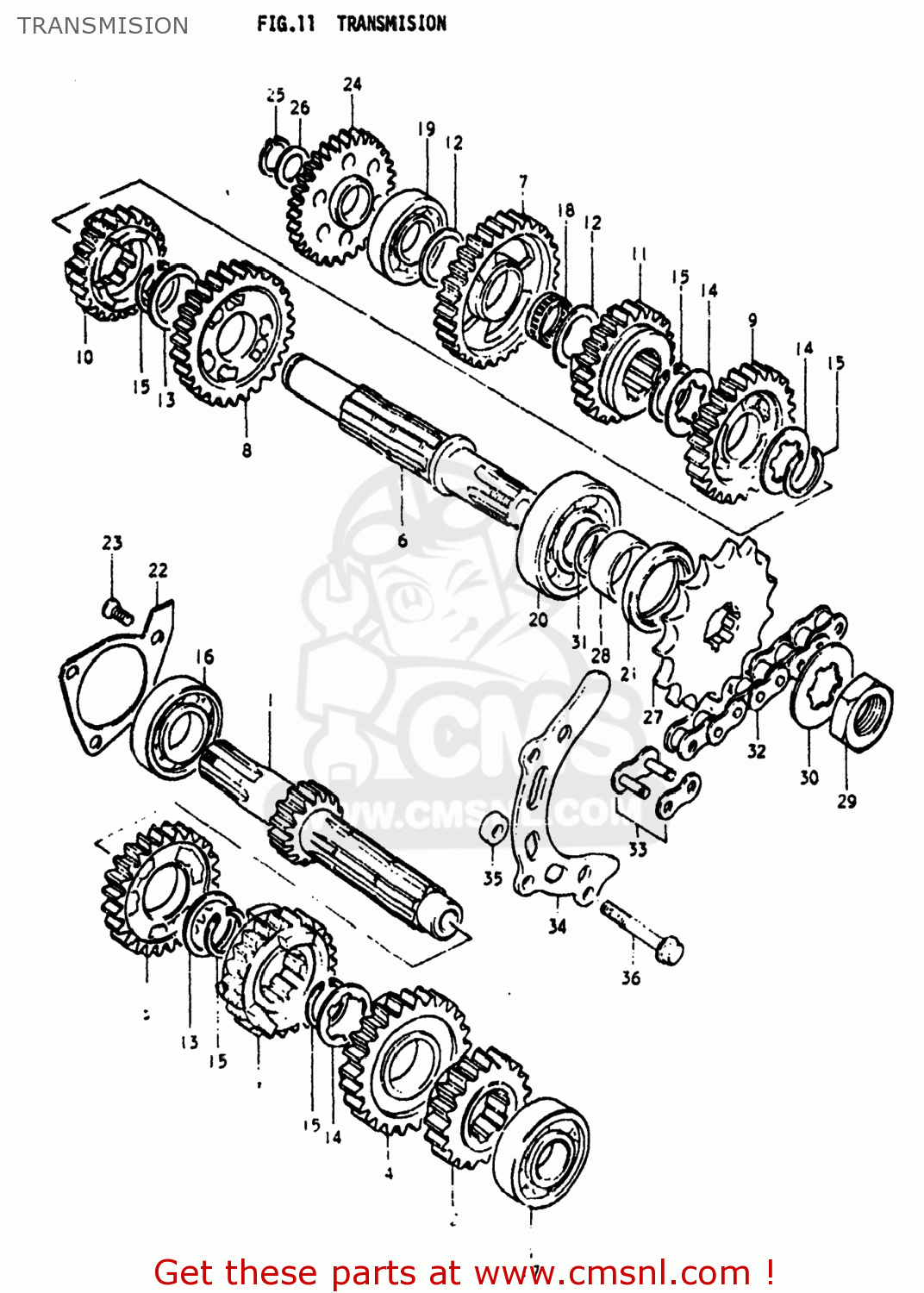

Transmision diagram PE250 1978 (C) USA (E03)
TRANSMISION PE250 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412141400
ref: 1
SHAFT,COUNTER
€ 90.00
2-1
2422141100
ref: 2-1
24221-41102
GEAR,SECOND DRIVE
€ 74.50
2-2
2422141101
ref: 2-2
24221-41102
GEAR,SECOND DRIVE
€ 74.50
3-1
2423141400
ref: 3-1
24231-41401
GEAR,THIRD DRIVE
€ 26.50
3-1
2423141400
ref: 3-1
24231-41401
GEAR,THIRD DRIVE
€ 26.50
3-2
2423141400
ref: 3-2
24231-41401
GEAR,THIRD DRIVE
€ 26.50
4
2424141400
ref: 4
GEAR,FOURTH DRIVE
€ 21.50
5-1
2425141400
ref: 5-1
24251-41402
GEAR,FIFTH DRIVE
€ 24.50
5-1
2425141400
ref: 5-1
24251-41402
GEAR,FIFTH DRIVE
€ 24.50
5-2
2425141401
ref: 5-2
24251-41402
GEAR,FIFTH DRIVE
€ 24.50
6
2413141100
ref: 6
24131-41101
SHAFT,DRIVE
€ 121.00
7
2431141400
ref: 7
GEAR,FIRST DRIVEN
€ 55.50
8-1
2432041100
ref: 8-1
24320-41101
GEAR,SECOND DRIVEN
€ 69.00
8-2
2432041101
ref: 8-2
GEAR,SECOND DRIVEN
€ 69.00
9-1
2433141400
ref: 9-1
24331-41401
GEAR,THIRD DRIVEN
€ 76.00
9-2
2433141401
ref: 9-2
GEAR,THIRD DRIVEN
€ 76.00
10
2434141400
ref: 10
GEAR,FOURTH DRIVEN
€ 60.00
11
2435141400
ref: 11
24351-41401
GEAR,FIFTH DRIVEN
€ 22.00
12
0821117281
ref: 12
09181-17195
WASHER
€ 3.00
13
0918122002
ref: 13
SHIM(22X28X0.5)
€ 1.00
14
0916722011
ref: 14
WASHER,LOCK
€ 3.00
15
0938022006
ref: 15
CIRCLIP
€ 3.00
16
0926220009
ref: 16
09262-20073
BEARING
€ 19.00
17-1
0811362030
ref: 17-1
09262-17023
BEARING
€ 14.00
17-2
0926217008
ref: 17-2
09262-17023
BEARING
€ 14.00
18
0926317004
ref: 18
BEARING(17X21X9.8)
€ 7.00
19-1
0811362030
ref: 19-1
09262-17023
BEARING
€ 14.00
19-2
0926217008
ref: 19-2
09262-17023
BEARING
€ 14.00
20-1
0926222011
ref: 20-1
09262-22028
BEARING
€ 59.50
20-2
0926222014
ref: 20-2
09262-22028
BEARING
€ 59.50
21
0928332003
ref: 21
SEAL,OIL(32X42X6)
€ 3.50
22
2474140001
ref: 22
PLATE,COUNTERSHAFT BEARING
€ 16.50
23
0212206128
ref: 23
02122-06127
SCREW
€ 3.00
24
2626041100
ref: 24
26260-13A10
GEAR,KICK STARTER IDLE
€ 52.00
25
0938017001
ref: 25
CIRCLIP
€ 2.00
26
0821117241
ref: 26
WASHER
€ 2.00
27-1
2751141110
ref: 27-1
SPROCKET,ENGINE
€ 25.00
27-2
2751141100
ref: 27-2
SPROCKET,ENGINE
€ 48.50
27-3
2751141120
ref: 27-3
27511-14210
SPROCKET,ENGINE
€ 24.50
27-4
2751141130
ref: 27-4
SPROCKET,ENGINE
€ 17.50
28
0918022007
ref: 28
SPACER(22X32X11.5)
€ 10.00
29
0914022006
ref: 29
NUT
€ 6.00
30
0916722005
ref: 30
WASHER,LOCK
€ 2.50
31
0928022003
ref: 31
O RING(D:1.7,ID:22)
€ 2.50
32-1
2760041110
ref: 32-1
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
32-2
2760041130
ref: 32-2
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
33-1
2762040000
ref: 33-1
27620-14252
JOINT ASSEMBLY,CHAIN
€ 3.00
33-2
2762041530
ref: 33-2
27620-41531
JOINT ASSEMBLY,CHAIN
€ 3.00
34
2764141400
ref: 34
PLATE,FRONT CHAIN GUIDE
€ 9.00
35
0918006069
ref: 35
SPACER(6.5X14X7.5)
€ 3.00
36
0151706258
ref: 36
01550-06257
BOLT
€ 2.50
