CARBURETOR
PE250 1980 (T) USA (E03)

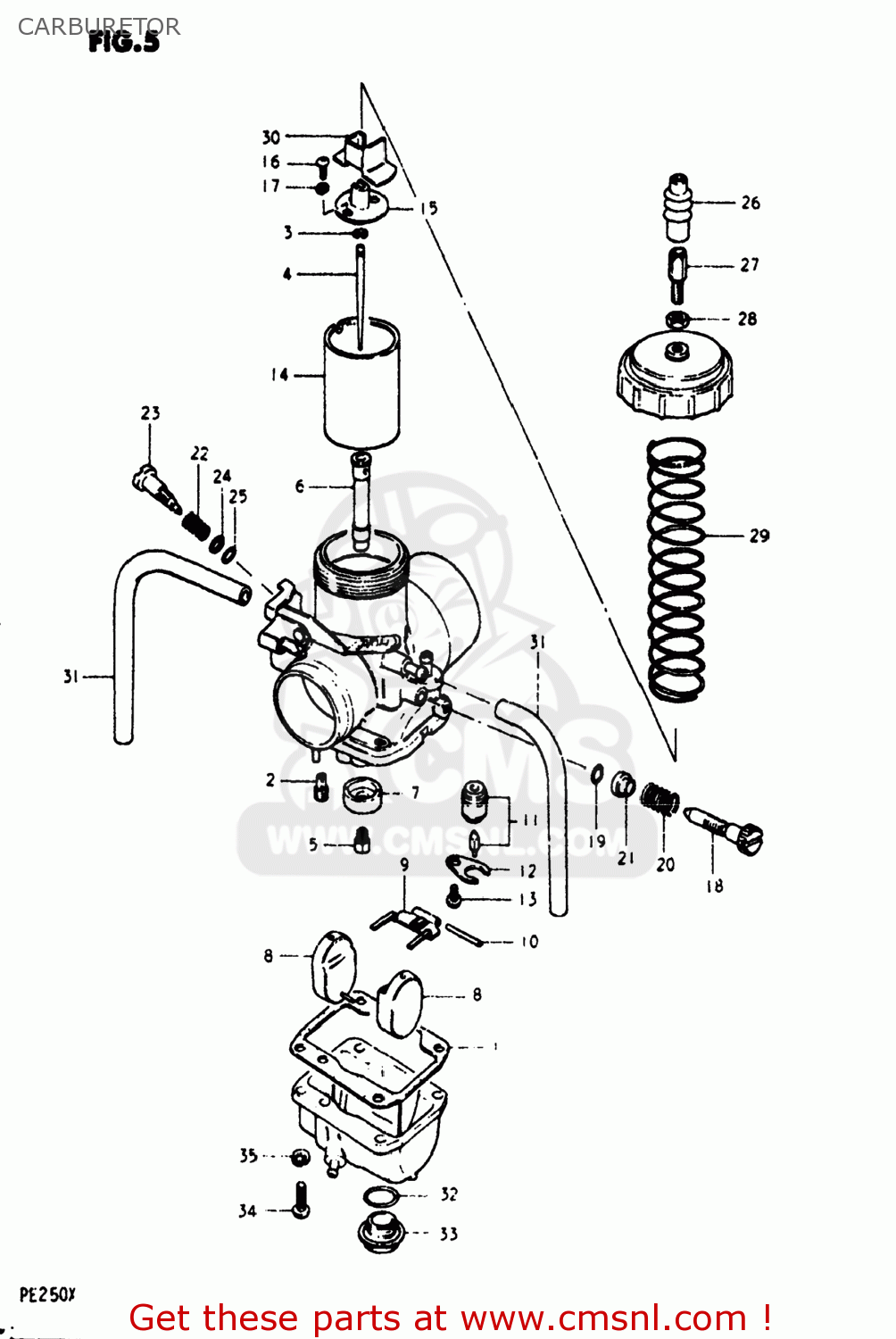

Carburetor diagram PE250 1980 (T) USA (E03)
CARBURETOR PE250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320040600
ref: 0-1
CARBURETOR ASSEMBLY
€ 0.00
0-1
1320040620
ref: 0-1
13200-40621
CARBURETOR ASSEMBLY
€ 157.00
1
1325140230
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 8.50
2
0949235006
ref: 2
JET,PILOT
€ 5.50
3
1339410010
ref: 3
CLIP
€ 4.50
4
1338340600
ref: 4
NEEDLE JET
€ 14.50
5-1
0949156001
ref: 5-1
09491-56003
JET
€ 14.50
5-2
0949150003
ref: 5-2
09491-50008
JET
€ 12.50
5-3
0949152001
ref: 5-3
09491-52006
JET
€ 7.50
6
0949400285
ref: 6
JET,NEEDLE
€ 0.00
7
1333140600
ref: 7
RING,MAIN JET FIXING
€ 0.00
8
1325216600
ref: 8
FLOAT
€ 17.50
9
1325340200
ref: 9
ARM,FLOAT
€ 10.00
10
1325401010
ref: 10
PIN,FLOAT
€ 3.00
11
1337240600
ref: 11
13370-40600
VALVE ASSEMBLY,NEEDLE
€ 48.50
12
1337339110
ref: 12
PLATE
€ 6.50
13
0211104067
ref: 13
02112-0406B
SCREW
€ 2.00
14
1355140600
ref: 14
VALVE,THROTTLE
€ 0.00
15
1358140200
ref: 15
CONNECTOR
€ 7.00
16
0211203088
ref: 16
02112-03087
SCREW
€ 1.50
17
0832121038
ref: 17
09162-03001
LOCK WASHER
€ 1.50
18
1326741640
ref: 18
SCREW,THROTTLE STOP
€ 15.00
19
1329430010
ref: 19
13278-02340
O-RING
€ 1.50
20
1326831011
ref: 20
SPRING,THROTTLE STOP
€ 7.50
21
1329134010
ref: 21
COVER
€ 5.50
22
1327196110
ref: 22
SPRING
€ 3.50
23
1326941640
ref: 23
SCREW,PILOT AIR
€ 11.50
24
1329141640
ref: 24
13606-18E00
WASHER,PILOT AIR SCREW
€ 3.50
25
1327845010
ref: 25
O RING
€ 5.00
26
1368141510
ref: 26
CAP,CABLE ADJUSTER
€ 11.00
27
1357741612
ref: 27
ADJUSTER,CABLE
€ 8.00
28
1366116600
ref: 28
NUT
€ 5.00
29
1357341610
ref: 29
SPRING,THROTTLE VALVE RETURN
€ 8.50
30
1362940200
ref: 30
COVER,HOLDER
€ 4.00
31
1368332410
ref: 31
13683-45070
HOSE
€ 10.00
32
1329440110
ref: 32
09280-20003
O-RING
€ 2.50
33
1324740600
ref: 33
PLUG
€ 8.00
34
0211205168
ref: 34
02112-05167
SCREW
€ 2.50
35
0832121058
ref: 35
08321-0105A
LOCK WASHER
€ 2.00
36-1
0949148001
ref: 36-1
09491-48003
JET
€ 13.00
36-2
0949154001
ref: 36-2
09491-54002
JET
€ 11.50
36-3
0949158001
ref: 36-3
09491-58002
JET
€ 7.50
36-4
0949160003
ref: 36-4
09491-60007
JET
€ 9.50
36-5
0949162001
ref: 36-5
09491-62005
JET
€ 10.50
