FUEL TANK (PE250T)
PE250 1980 (T) USA (E03)

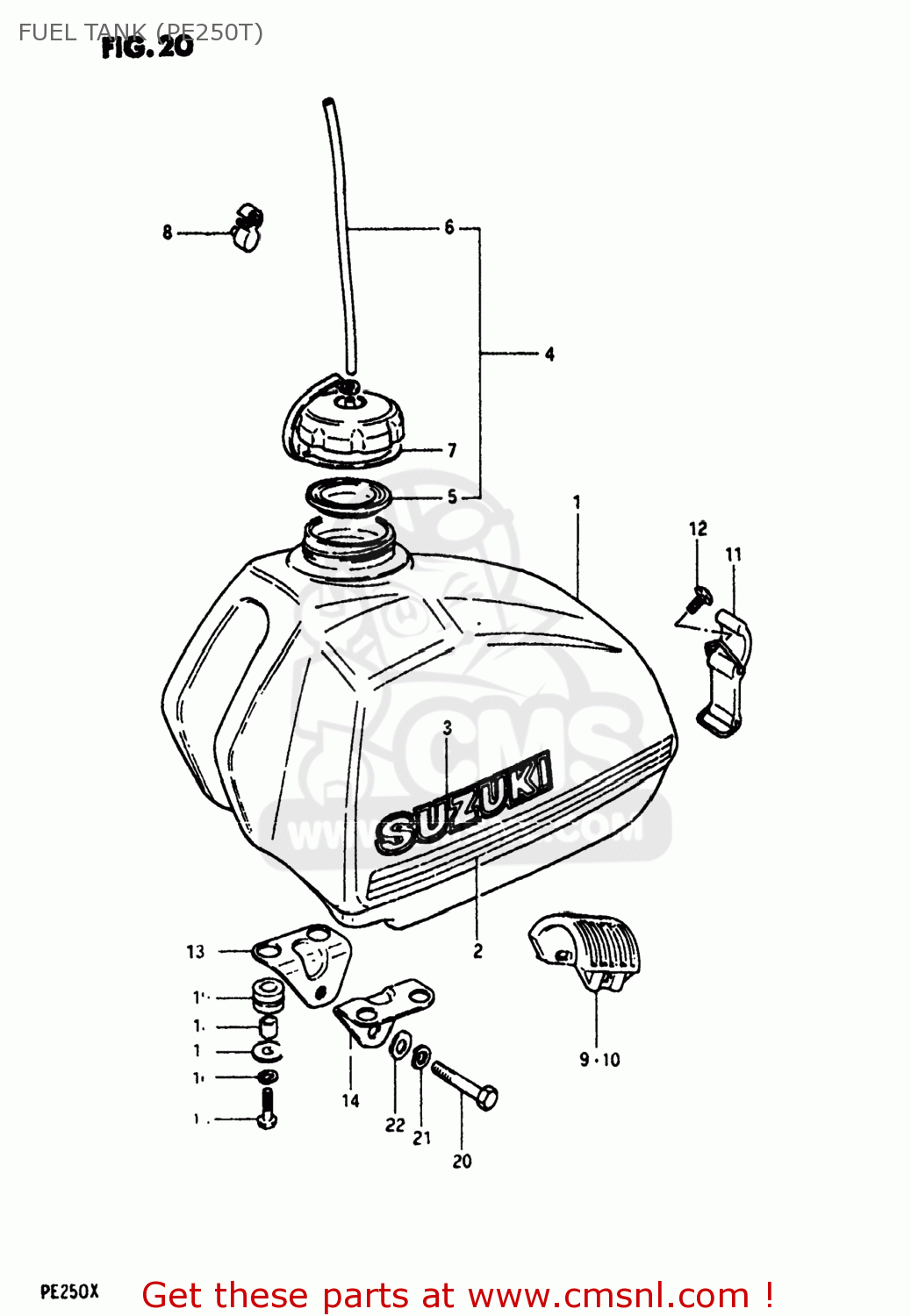

Fuel tank (pe250t) diagram PE250 1980 (T) USA (E03)
FUEL TANK (PE250T) PE250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410040500163
ref: 1
TANK ASSEMBLY,FUEL
€ 0.00
2
681104050067H
ref: 2
TAPE SET,FUEL TANK
€ 0.00
3
681114050064D
ref: 3
68111-40210-64D
EMBLEM
€ 12.50
4
4420040500
ref: 4
CAP,FUEL TANK
€ 15.00
5
4424841300
ref: 5
GASKET,FUEL TANK CAP (NAS)
€ 6.00
6
0934305129
ref: 6
44420-44AR0
HOSE
€ 13.00
7
4448741300
ref: 7
BAND,FUEL TANK CAP
€ 3.00
8
4448640200
ref: 8
CLAMP,BREATHER HOSE
€ 2.50
9
4454141310
ref: 9
CUSHION,FUEL TANK
€ 4.50
10
4454140601
ref: 10
44541-40602
CUSHION,FUEL TANK
€ 6.00
11
4456041300
ref: 11
BAND
€ 5.50
12
0912506029
ref: 12
SCREW(6X18)
€ 2.50
13
4452041401
ref: 13
BRACKET,FUEL TANK
€ 24.00
14
4453141402
ref: 14
BRACKET,FUEL TANK,LOWER
€ 0.00
15
0211206258
ref: 15
02112-06257
SCREW
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0916006004
ref: 17
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
18
0918006076
ref: 18
SPACER(6.8X12X11)
€ 3.00
19
0932011008
ref: 19
CUSHION
€ 3.00
20
0110708658
ref: 20
01500-0865B
BOLT
€ 3.00
21
0832121088
ref: 21
08321-01087
LOCK WASHER
€ 2.00
22
0832211088
ref: 22
08322-01087
WASHER
€ 2.00
