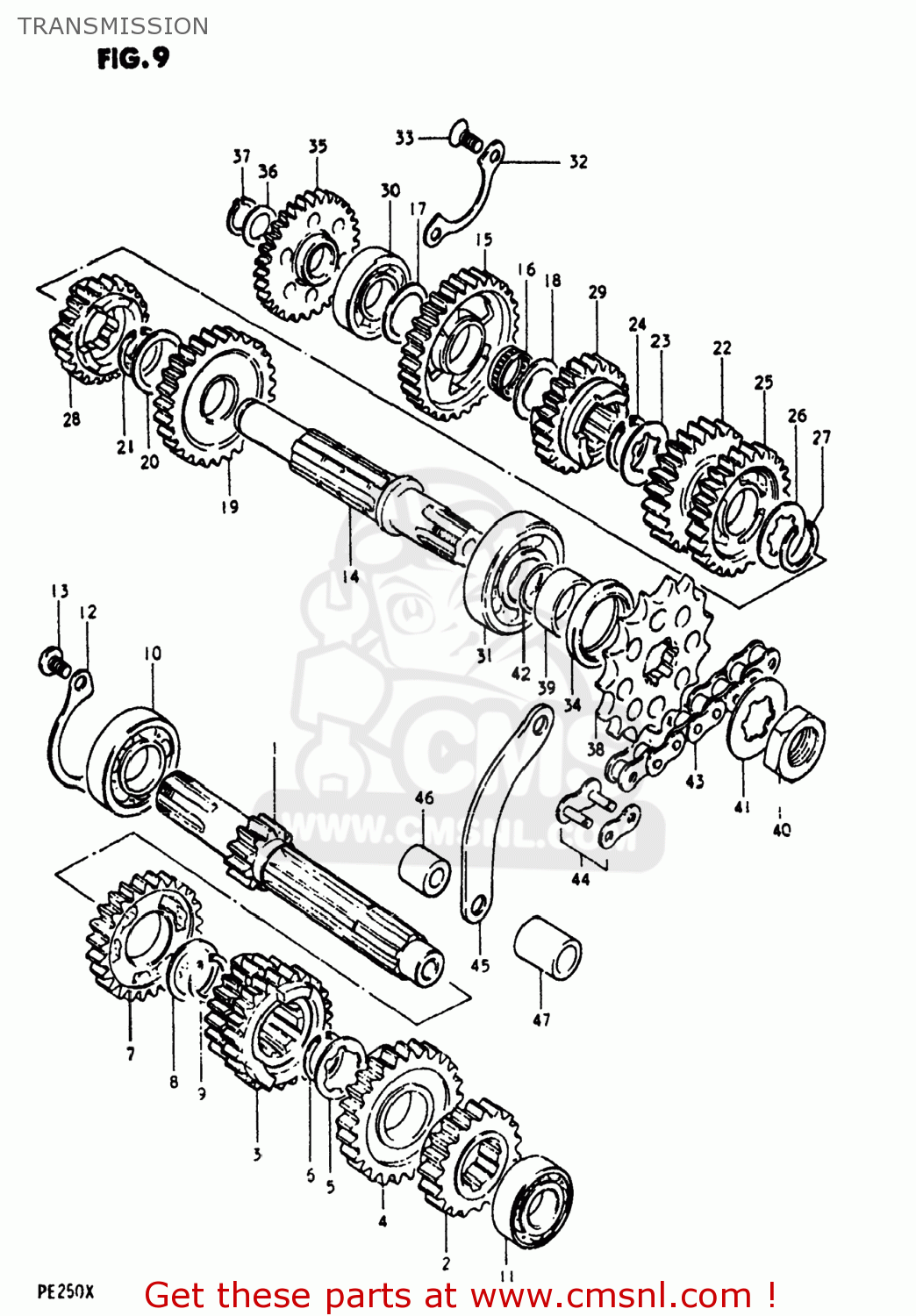

TRANSMISSION

ref

part #

description

quantity

1

2412140600
ref: 1

SHAFT,COUNTER

€ 145.50

2

2422141101
ref: 2
24221-41102

GEAR,SECOND DRIVE

€ 74.50

3

2423140600
ref: 3

GEAR,THIRD/FOURTH DRIVE

€ 72.50

4

2425140600
ref: 4

GEAR,FIFTH DRIVE

€ 48.50

5

0916722011
ref: 5

WASHER,LOCK

€ 3.00

6

0938022006
ref: 6

CIRCLIP

€ 3.00

7

2426140601
ref: 7

GEAR,SIXTH DRIVE

€ 72.50

8

0918122002
ref: 8

SHIM(22X28X0.5)

€ 1.00

9

0938022006
ref: 9

CIRCLIP

€ 3.00

10

0926220009
ref: 10
09262-20073

BEARING

€ 19.00

11

0926217008
ref: 11
09262-17023

BEARING

€ 14.00

12

2474140300
ref: 12

PLATE,COUNTERSHAFT BEARING

€ 18.00

13

0211206128
ref: 13
02112-06127

SCREW 6X12

€ 2.00

14

2413140600
ref: 14

SHAFT,DRIVE

€ 149.50

15

2431140600
ref: 15

GEAR,FIRST DRIVEN

€ 0.00

16

0926317004
ref: 16

BEARING(17X21X9.8)

€ 7.00

17

0821117281
ref: 17
09181-17195

WASHER

€ 3.00

18

0821117261
ref: 18
09181-17167

WASHER,THRUST

€ 3.00

19

2432041101
ref: 19

GEAR,SECOND DRIVEN

€ 69.00

20

0918122002
ref: 20

SHIM(22X28X0.5)

€ 1.00

21

0938022006
ref: 21

CIRCLIP

€ 3.00

22

2433140600
ref: 22

GEAR,THIRD DRIVEN

€ 78.50

23

0916722011
ref: 23

WASHER,LOCK

€ 3.00

24

0938022006
ref: 24

CIRCLIP

€ 3.00

25

2434140600
ref: 25

GEAR,FOURTH DRIVEN

€ 74.50

26

0916722011
ref: 26

WASHER,LOCK

€ 3.00

27

0938022006
ref: 27

CIRCLIP

€ 3.00

28

2435140600
ref: 28

GEAR,FIFTH DRIVEN

€ 72.50

29

2436140601
ref: 29

GEAR,SIXTH DRIVEN

€ 72.50

30

0926217008
ref: 30
09262-17023

BEARING

€ 14.00

31

0926222014
ref: 31
09262-22028

BEARING

€ 59.50

32

2475140300
ref: 32

PLATE,DRIVESHAFT BEARING

€ 5.50

33

0212206128
ref: 33
02122-06127

SCREW

€ 3.00

34

0928332003
ref: 34

SEAL,OIL(32X42X6)

€ 3.50

35

2626041101
ref: 35
26260-13A10

GEAR,KICK STARTER IDLE

€ 52.00

36

0938017001
ref: 36

CIRCLIP

€ 2.00

37

0821117241
ref: 37

WASHER

€ 2.00

38-1

2751141110
ref: 38-1

SPROCKET,ENGINE

€ 25.00

38-2

2751141100
ref: 38-2

SPROCKET,ENGINE

€ 48.50

38-3

2751141120
ref: 38-3
27511-14210

SPROCKET,ENGINE

€ 24.50

38-4

2751141130
ref: 38-4

SPROCKET,ENGINE

€ 17.50

39

0918022007
ref: 39

SPACER(22X32X11.5)

€ 10.00

40

0914022006
ref: 40

NUT

€ 6.00

41

0916722005
ref: 41

WASHER,LOCK

€ 2.50

42

0928022003
ref: 42

O RING(D:1.7,ID:22)

€ 2.50

43-1

2760040640
ref: 43-1
27600-43D02-114

CHAIN ASSEMBLY,DRIVE

€ 72.50

43-2

2760040940
ref: 43-2
27600-43D02-114

CHAIN ASSEMBLY,DRIVE

€ 72.50

44

2762040940
ref: 44

JOINT ASSEMBLY,CHAIN

€ 9.50

45-1

2764140300
ref: 45-1

PLATE,FRONT CHAIN GUIDE

€ 11.50

45-2

2764140400
ref: 45-2

PLATE,FR CHAIN GUIDE

€ 46.50

46

0918008078
ref: 46

SPACER(8.6X16X24)

€ 6.50

47

0932013004
ref: 47

CUSHION

€ 4.50
