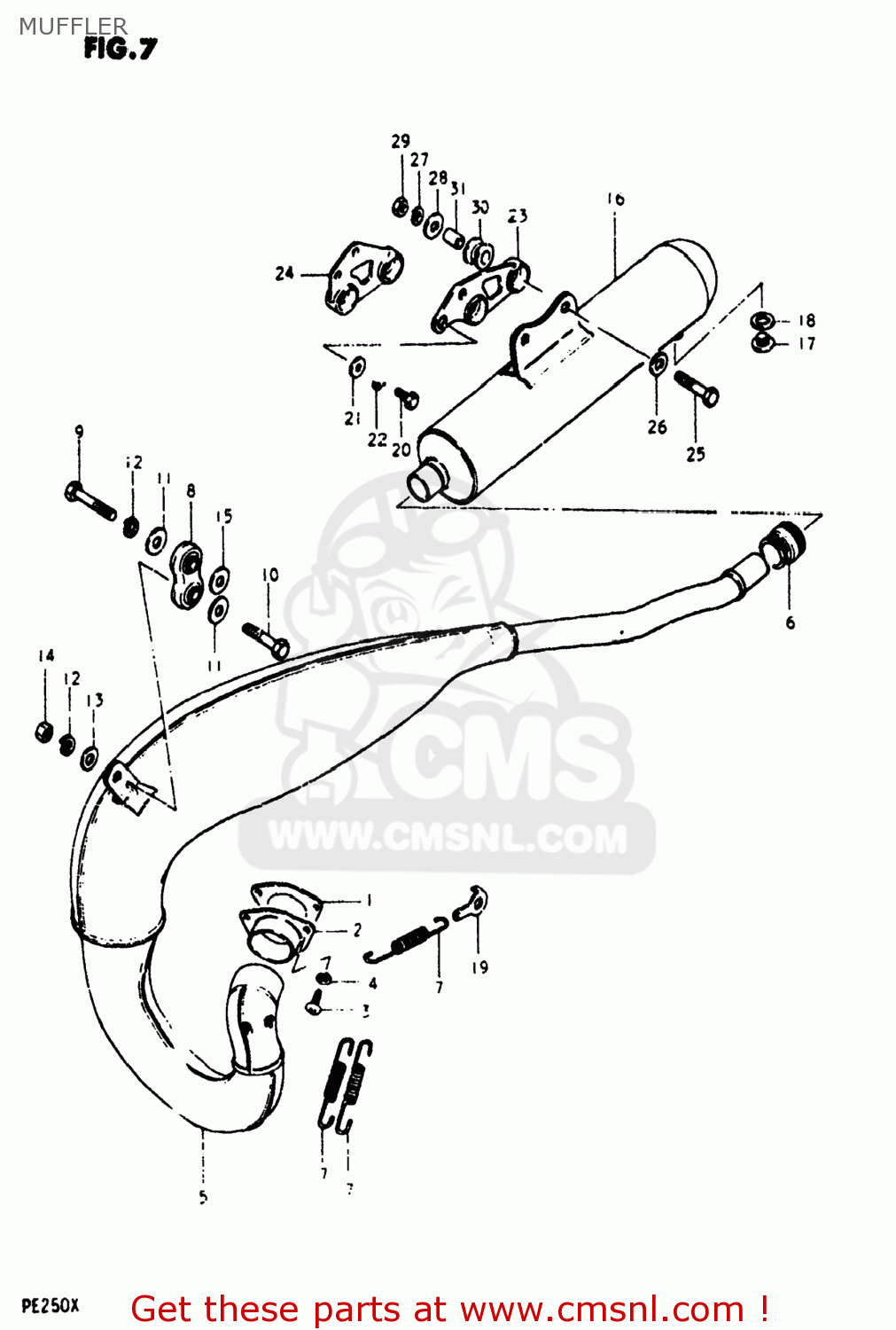

MUFFLER

ref

part #

description

quantity

1

1418116300
ref: 1
14181-16300-H17

GASKET,EXHAUST PIPE (MCA)

€ 4.00

2

1417016300
ref: 2
14170-16301

FLANGE,EXHAUST PIPE

€ 70.50

3

0211206208
ref: 3
02112-06207

SCREW

€ 2.00

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

1431040620
ref: 5
14310-40620-H01

BODY,MUFFLER

€ 609.00

6

1477130901
ref: 6
14771-43D00

CONNECTOR,MUFFLER

€ 19.00

7

0944311002
ref: 7

SPRING

€ 4.50

8

1477040000
ref: 8

DAMPER,MUFFLER

€ 139.00

9

0110708458
ref: 9
01500-08453

BOLT 8X45

€ 2.50

10

0110708358
ref: 10
01500-0835B

BOLT

€ 3.50

11

0916008035
ref: 11
09160-08130

WASHER

€ 2.00

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

13

0832211088
ref: 13
08322-01087

WASHER

€ 2.00

14

0831012088
ref: 14
08310-00087

NUT

€ 2.00

15

0918008033
ref: 15

SPACER(8.4X12X12)

€ 2.50

16-1

1430340600
ref: 16-1
14303-40601

MUFFLER ASSEMBLY

€ 102.50

16-2

1430340601
ref: 16-2

MUFFLER ASSEMBLY,SECOND

€ 102.50

17

0924712103
ref: 17

PLUG(12X9)

€ 3.50

18

0916812003
ref: 18

GASKET(12X16X2) (NAS)

€ 2.00

19

1441140300
ref: 19

HOOK,MUFFLER FIT SPRING

€ 2.00

20

0110708168
ref: 20
01500-0816B

BOLT

€ 2.00

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0832121088
ref: 22
08321-01087

LOCK WASHER

€ 2.00

23

1477040500
ref: 23
14770-40501

DAMPER,MUFFLER SUPPORT

€ 27.50

24

1477040510
ref: 24

DAMPER,MUFFLER SUPPORT

€ 0.00

25

0110708358
ref: 25
01500-0835B

BOLT

€ 3.50

26

0832211088
ref: 26
08322-01087

WASHER

€ 2.00

27

0832121088
ref: 27
08321-01087

LOCK WASHER

€ 2.00

28

0916008002
ref: 28
09160-08135

WASHER (8.5X29X1.6)

€ 2.00

29

0831012088
ref: 29
08310-00087

NUT

€ 2.00

30

0932012026
ref: 30
09320-12043

CUSHION

€ 8.00

31

0918008032
ref: 31
09180-08143

SPACER (8.2X12X17)

€ 5.00

all assemblies
