CRANKCASE COVER
PE250 1980 (T) USA (E03)

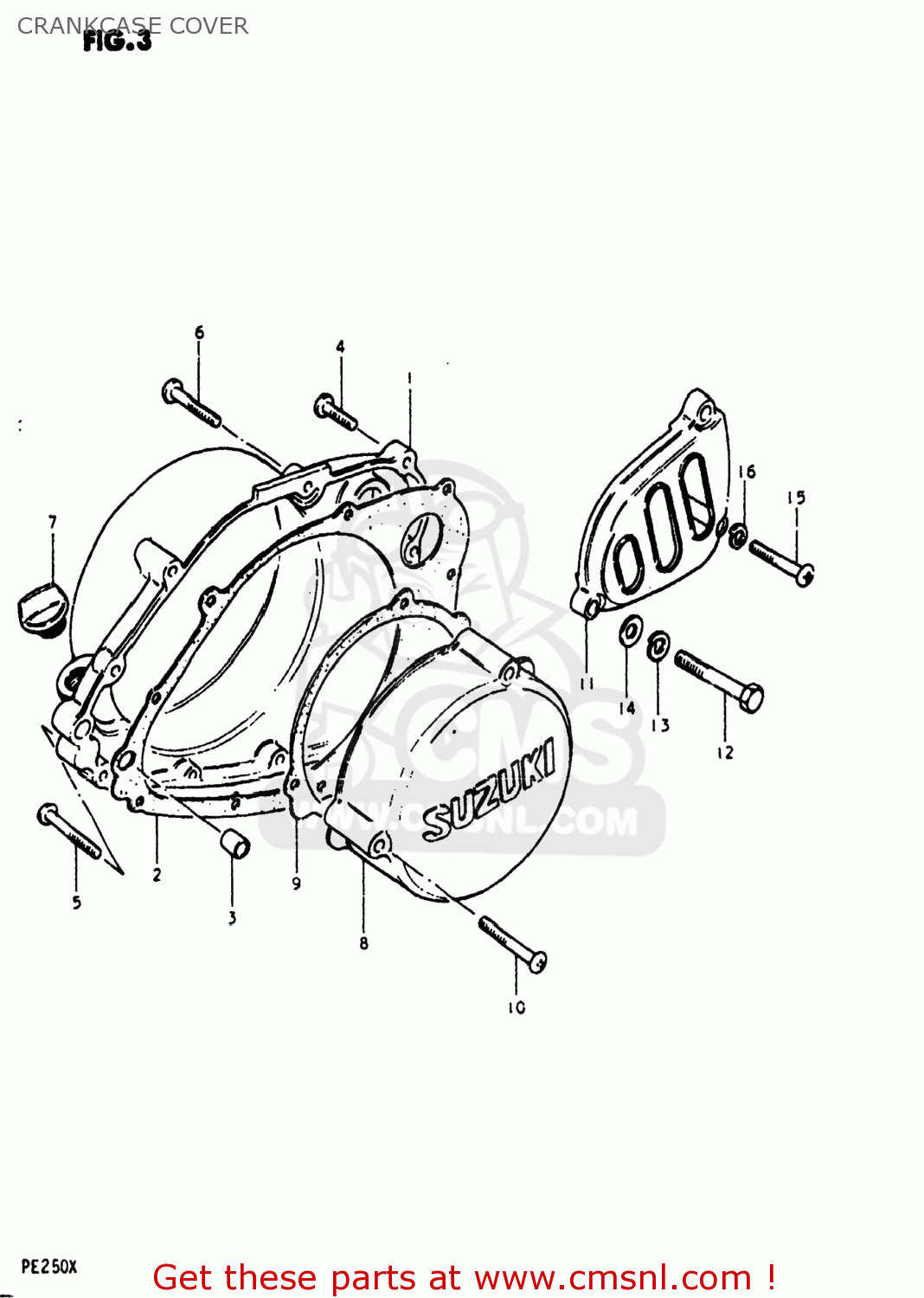

Crankcase cover diagram PE250 1980 (T) USA (E03)
CRANKCASE COVER PE250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134140300
ref: 1
COVER,CLUTCH
€ 197.50
2
1148240300
ref: 2
11482-40300-H17
GASKET,CLUTCH COVER (MCA)
€ 17.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206258
ref: 4
02112-06257
SCREW
€ 2.00
5
0211206458
ref: 5
02112-06457
SCREW (6X45)
€ 2.00
6
0211206308
ref: 6
02112-06307
SCREW 6X30
€ 2.50
7
0925920003
ref: 7
09200-20810
PLUG,OIL FILTER
€ 8.00
8
1135140900
ref: 8
COVER,MAGNETO
€ 102.00
9-1
1148340900
ref: 9-1
11483-40910
GASKET,MAGNETO COVER (NAS)
€ 3.50
9-2
1148340910
ref: 9-2
GASKET,MAGNETO COVER (NAS)
€ 3.50
10
0211206508
ref: 10
02112-06507
SCREW
€ 2.50
11
1136040401
ref: 11
COVER,ENGINE SPROCKET
€ 60.50
12
0110708558
ref: 12
01500-08557
BOLT 8X55
€ 3.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
0832211068
ref: 14
08322-0106B
WASHER 6MM
€ 2.00
15
0211206508
ref: 15
02112-06507
SCREW
€ 2.50
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
