ELECTORICAL

PE400 1981 (X) (E01 E02 E06 E15 E24)

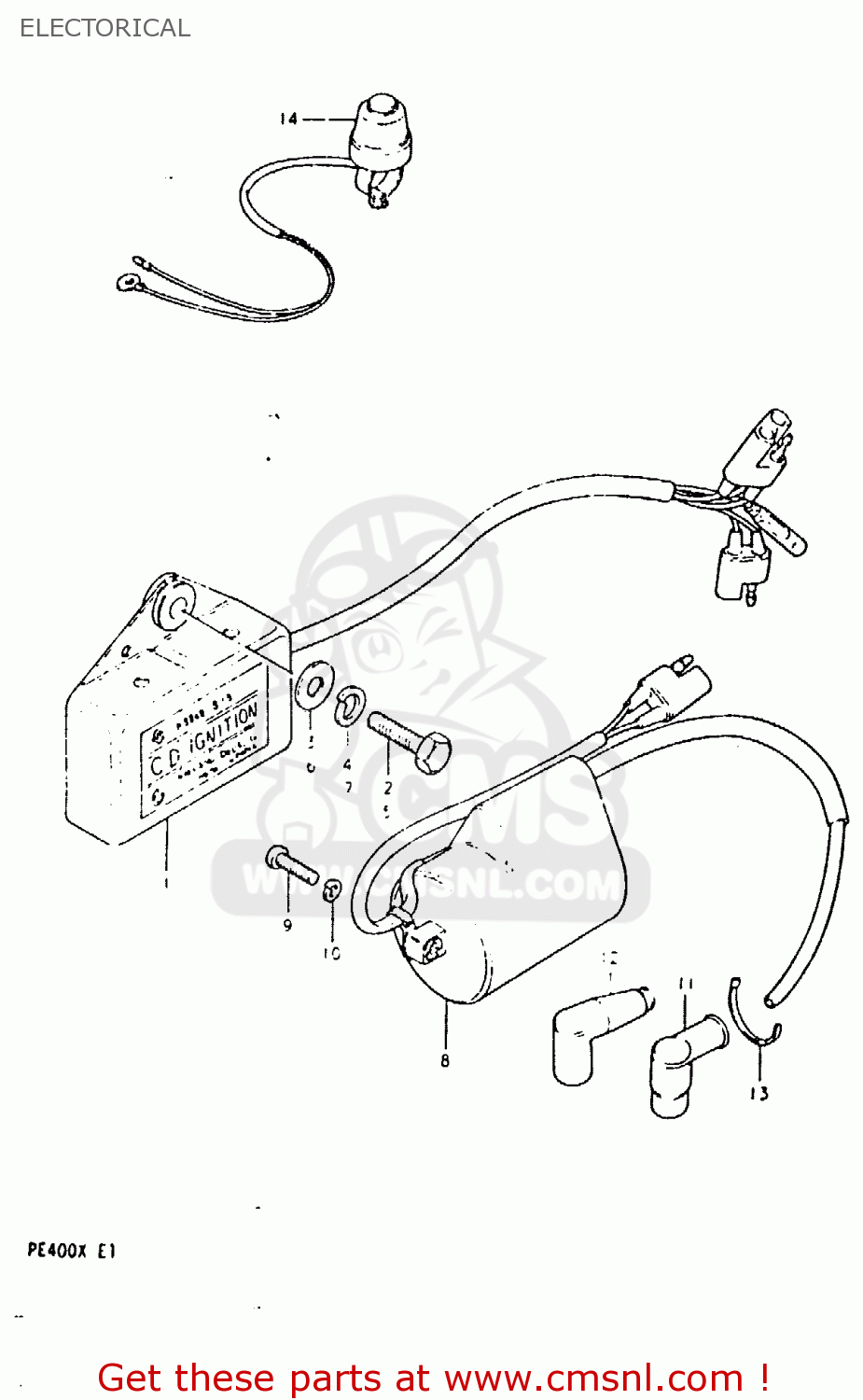

Electorical diagram PE400 1981 (X) (E01 E02 E06 E15 E24)

prices are in EUR

ref

part #

description

quantity

3290040920
ref: 1

CDI UNIT

€ 0.00

NOTUSED
ref: 2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

NOTUSED
ref: 4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0910006039
ref: 5
E2, E6, E24

BOLT 6X22

€ 2.50

0916006007
ref: 6
E2, E6, E24

WASHER

€ 2.00

0832121068
ref: 7
E2, E6, E24

LOCK WASHER

€ 2.50

3341041320
ref: 8
TO 33410-14120

COIL ASSEMBLY,IGNITION

€ 100.00

0211205208
ref: 9

SCREW 5X20

€ 3.00

0832121058
ref: 10

LOCK WASHER

€ 2.00

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3351004410
ref: 12
E2, E6

CAP, SPARK PLUG

€ 40.00

0940709402
ref: 13

CLAMP

€ 3.00

3782041400
ref: 14

SWITCH ASSEMBLY

€ 24.50
