FRAME - SEAT

PE400 1981 (X) (E01 E02 E06 E15 E24)

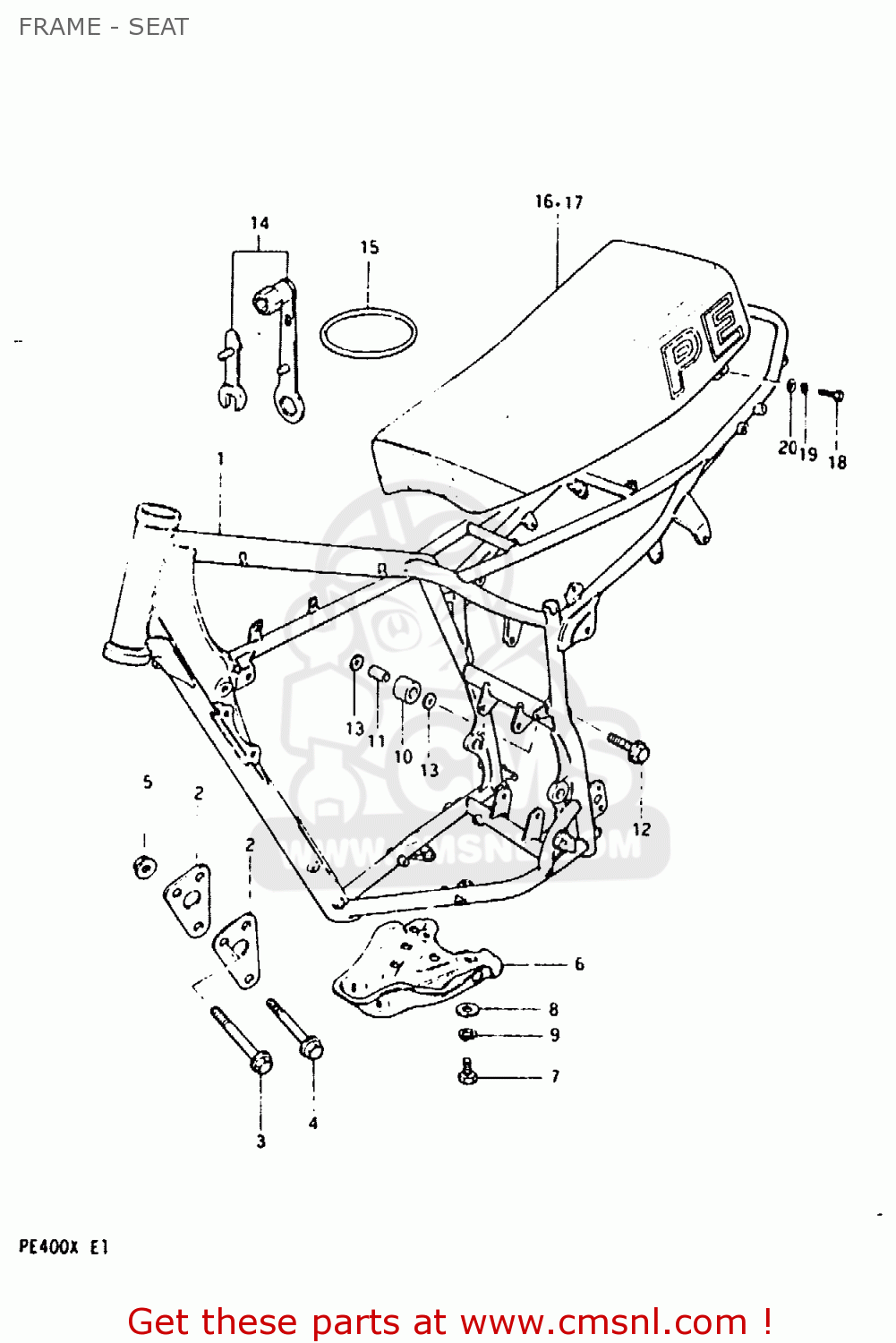

Frame - seat diagram PE400 1981 (X) (E01 E02 E06 E15 E24)

FRAME - SEAT PE400 1981 (X) (E01 E02 E06 E15 E24)
FRAME - SEAT PE400 1981 (X) (E01 E02 E06 E15 E24)
FRAME - SEAT PE400 1981 (X) (E01 E02 E06 E15 E24)
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
4110040620019
ref: 1-3
E2, MODEL T
FRAME (BLACK)
€ 0.00
1-4
4110040621019
ref: 1-4
E2, MODEL X
FRAME (BLACK)
€ 0.00
1-5
NOTUSED
ref: 1-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-6
NOTUSED
ref: 1-6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-7
NOTUSED
ref: 1-7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-8
NOTUSED
ref: 1-8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
4199140300
ref: 2
PLATE,ENGINE MOUNTING
4199140300
€ 11.50
3
0910308037
ref: 3
BOLT(8X67)
0910308037
€ 6.50
4
0910308017
ref: 4
BOLT
0910308017
€ 6.00
5
0831931088
ref: 5
NUT
€ 2.50
6
4251140600
ref: 6
MODEL T
PROTECTOR,ENGINE
€ 0.00
7
0110708168
ref: 7
MODEL T
BOLT
€ 2.00
8
0916008010
ref: 8
MODEL T
WASHER (8.2X20X1.6)
0916008010
€ 1.50
9
0832121088
ref: 9
MODEL T
LOCK WASHER
0832121088
€ 2.00
10-1
4391140410
ref: 10-1
MODEL T
ROLLER,CHAIN CONTROL
4391140410
€ 18.50
10-2
4391114200
ref: 10-2
MODEL X
ROLLER,CHAIN LENGTH CONTROL
4391114200
€ 18.50
11
4391340400
ref: 11
SPACER,CHAIN LENGTH ROLLER
4391340400
€ 8.00
12
0910308043
ref: 12
BOLT(8X45)
0910308043
€ 4.50
13
0916008035
ref: 13
WASHER
0916008035
€ 2.00
14
9651040500
ref: 14
SPARK PLUG WRENCH
9651040500
€ 40.50
15
9643140500
ref: 15
O RING TOOL FITTING
9643140500
€ 3.50
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
4510040610865
ref: 17
E2
SEAT ASSY (BLACK)
€ 0.00
18
0110708258
ref: 18
BOLT
0110708258
€ 2.50
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
0916008010
ref: 20
WASHER (8.2X20X1.6)
0916008010
€ 1.50
