WIRING HARNESS

PE400 1981 (X) (E01 E02 E06 E15 E24)

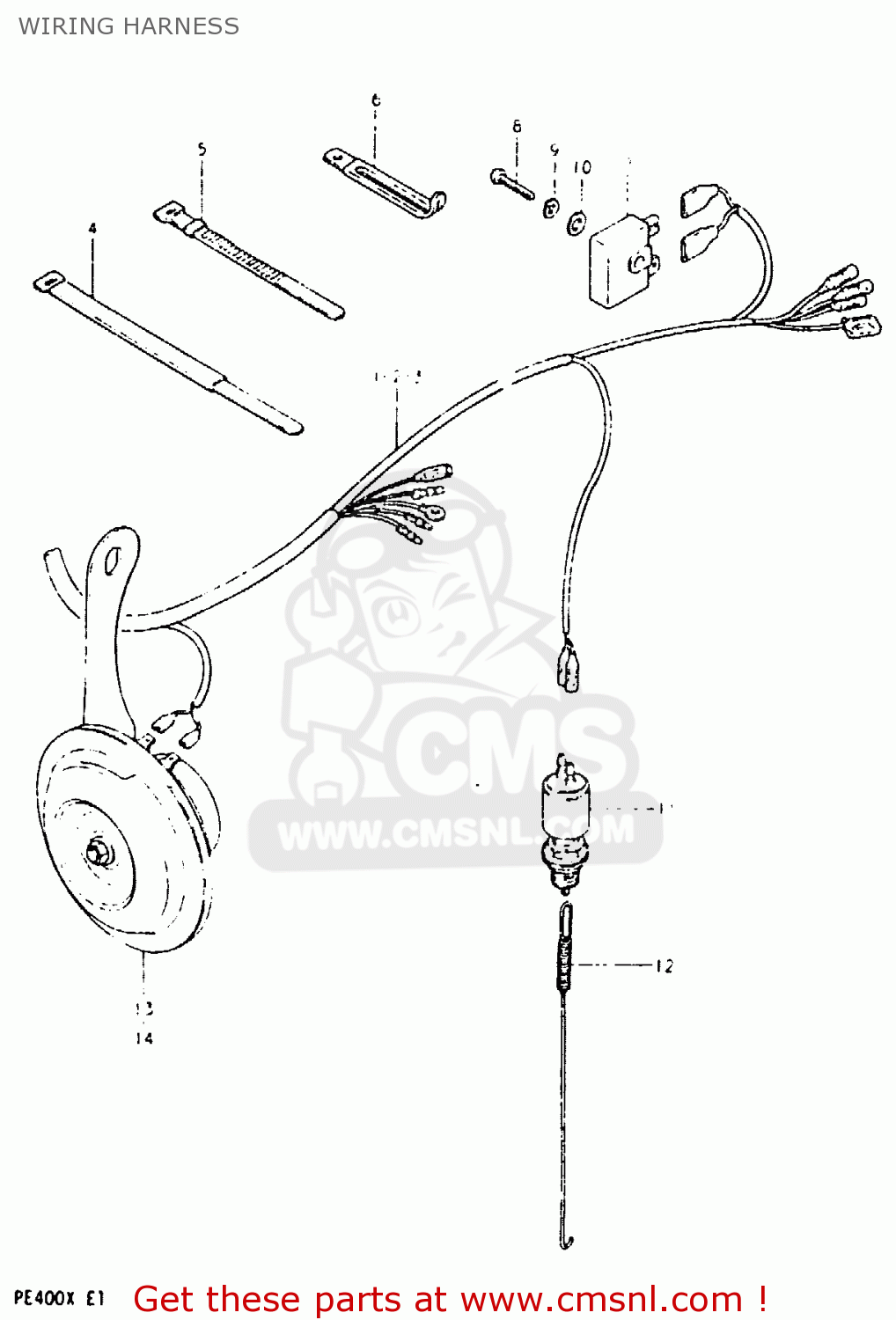

Wiring harness diagram PE400 1981 (X) (E01 E02 E06 E15 E24)

WIRING HARNESS PE400 1981 (X) (E01 E02 E06 E15 E24)
WIRING HARNESS PE400 1981 (X) (E01 E02 E06 E15 E24)
WIRING HARNESS PE400 1981 (X) (E01 E02 E06 E15 E24)
prices are in EUR
ref
part #
description
quantity
1
NOTUSED
ref: 1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
3661041430
ref: 2
E2
WIRING HARNESS
€ 0.00
3
NOTUSED
ref: 3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4-1
0940711301
ref: 4-1
CLAMP L:110
€ 6.00
4-2
0940718301
ref: 4-2
CLAMP
0940718301
€ 6.00
5
0940712402
ref: 5
CLAMP(L:120)
0940712402
€ 3.00
6
0940406415
ref: 6
CLAMP
€ 3.00
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
3761053011
ref: 11
E2, E6, E24
SWITCH ASSY,BRAKE LAMP
3761053011
€ 34.50
12
0944306027
ref: 12
E2, E6, E24
SPRING
0944306027
€ 4.50
13-1
3850040670
ref: 13-1
E2, TO 38500-40672
HORN (WHITE)
€ 0.00
13-2
3850040672
ref: 13-2
E2
HORN (BLACK)
€ 0.00
14-1
NOTUSED
ref: 14-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14-2
NOTUSED
ref: 14-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
