TRANSMISSION
PE400 1981 (X) (E01 E02 E06 E15 E24)

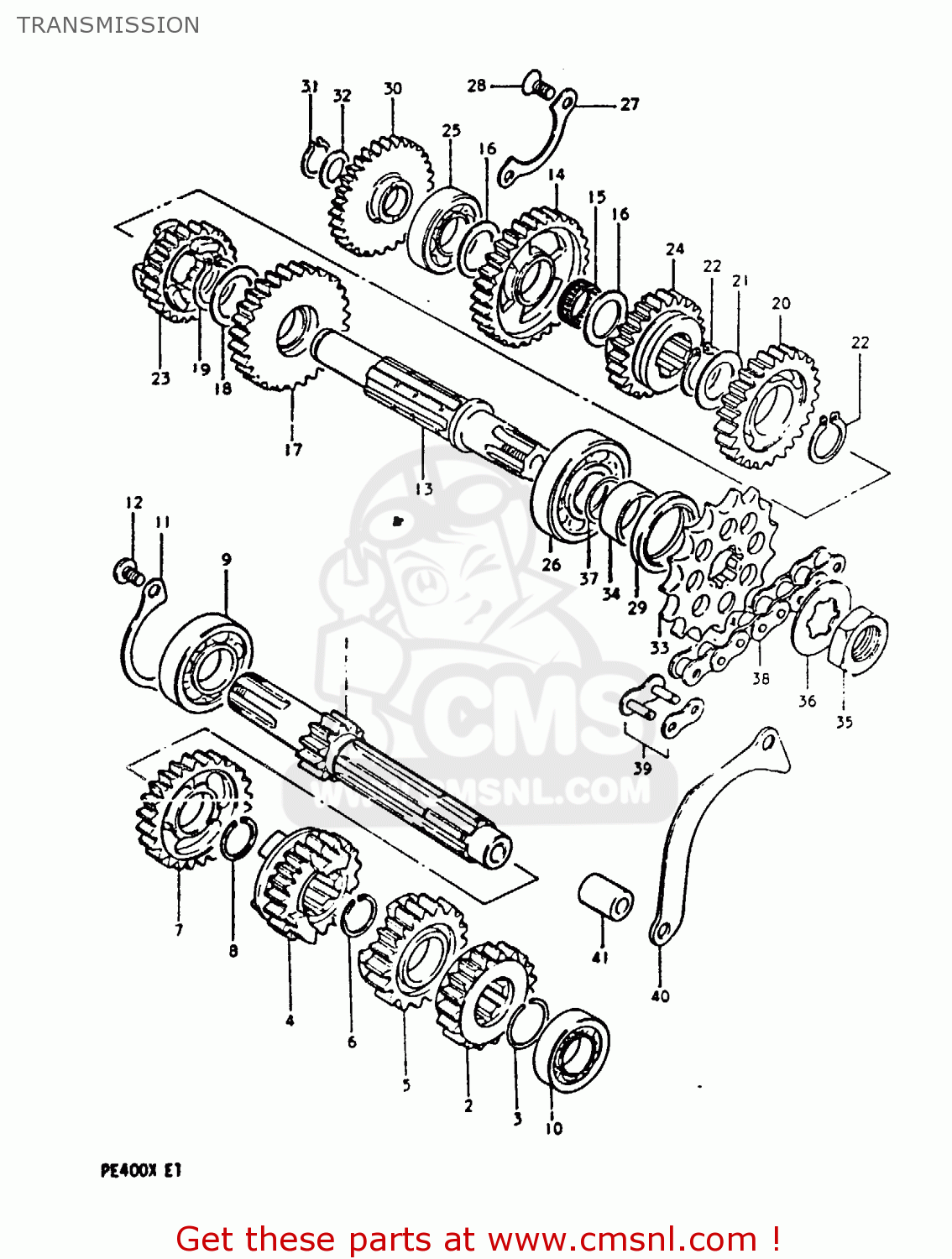

Transmission diagram PE400 1981 (X) (E01 E02 E06 E15 E24)
TRANSMISSION PE400 1981 (X) (E01 E02 E06 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1
2412140901
ref: 1
SHAFT,COUNTER
€ 0.00
2
2422140901
ref: 2
GEAR,SECOND DRIVE
€ 0.00
3
0938022007
ref: 3
CIRCLIP
€ 2.50
4
2423140901
ref: 4
GEAR,THIRD DRIVE
€ 0.00
5
2424140900
ref: 5
GEAR,FOURTH DRIVE
€ 47.00
6
0938022006
ref: 6
CIRCLIP
€ 3.00
7
2425040901
ref: 7
GEAR,FIFTH DRIVE
€ 62.00
8
0938022006
ref: 8
CIRCLIP
€ 3.00
9
0926220009
ref: 9
BEARING
€ 19.00
10
0926217008
ref: 10
BEARING
€ 14.00
11
2474140300
ref: 11
PLATE,COUNTERSHAFT BEARING
€ 18.00
12
0211206128
ref: 12
SCREW 6X12
€ 2.00
13
2413140902
ref: 13
SHAFT,DRIVE
€ 147.00
14
2431140901
ref: 14
GEAR,FIRST DRIVEN
€ 0.00
15
0926317004
ref: 15
BEARING(17X21X9.8)
€ 7.00
16
0821117281
ref: 16
WASHER
€ 3.00
17
2432040901
ref: 17
GEAR,SECOND DRIVEN
€ 0.00
18
0821122281
ref: 18
SHIM
€ 4.00
19
0833111229
ref: 19
CIRCLIP
€ 2.00
20
2433140901
ref: 20
GEAR,THIRD DRIVEN
€ 63.00
21
0821122321
ref: 21
WASHER
€ 3.00
22
0833111229
ref: 22
CIRCLIP
€ 2.00
23
2434140901
ref: 23
GEAR,FOURTH DRIVEN
€ 0.00
24
2435140902
ref: 24
GEAR,FIFTH DRIVEN
€ 37.00
25
0926217008
ref: 25
BEARING
€ 14.00
26
0926222014
ref: 26
BEARING
€ 59.50
27
2475140300
ref: 27
PLATE,DRIVESHAFT BEARING
€ 5.50
28
0212206128
ref: 28
SCREW
€ 3.00
29
0928332003
ref: 29
SEAL,OIL(32X42X6)
€ 3.50
30
2626040901
ref: 30
GEAR,KICK STARTER IDLE
€ 0.00
31
0938017001
ref: 31
CIRCLIP
€ 2.00
32
0821117241
ref: 32
WASHER
€ 2.00
33-1
2751141130
ref: 33-1
SPROCKET,ENGINE
€ 17.50
33-2
2751141120
ref: 33-2
OPT
SPROCKET,ENGINE
€ 24.50
34
0918022007
ref: 34
SPACER(22X32X11.5)
€ 10.00
35
0914022006
ref: 35
NUT
€ 6.00
36
0916722005
ref: 36
WASHER,LOCK
€ 2.50
37
0928022003
ref: 37
O RING(D:1.7,ID:22)
€ 2.50
38
2760040940
ref: 38
CHAIN ASSEMBLY,DRIVE
€ 72.50
39
2762040940
ref: 39
JOINT ASSEMBLY,CHAIN
€ 9.50
40-1
2764140900
ref: 40-1
PLATE,CHAIN FRONT GUIDE
€ 8.50
40-2
2764140400
ref: 40-2
OPT
PLATE,FR CHAIN GUIDE
€ 46.50
41
0918008078
ref: 41
SPACER(8.6X16X24)
€ 6.50
