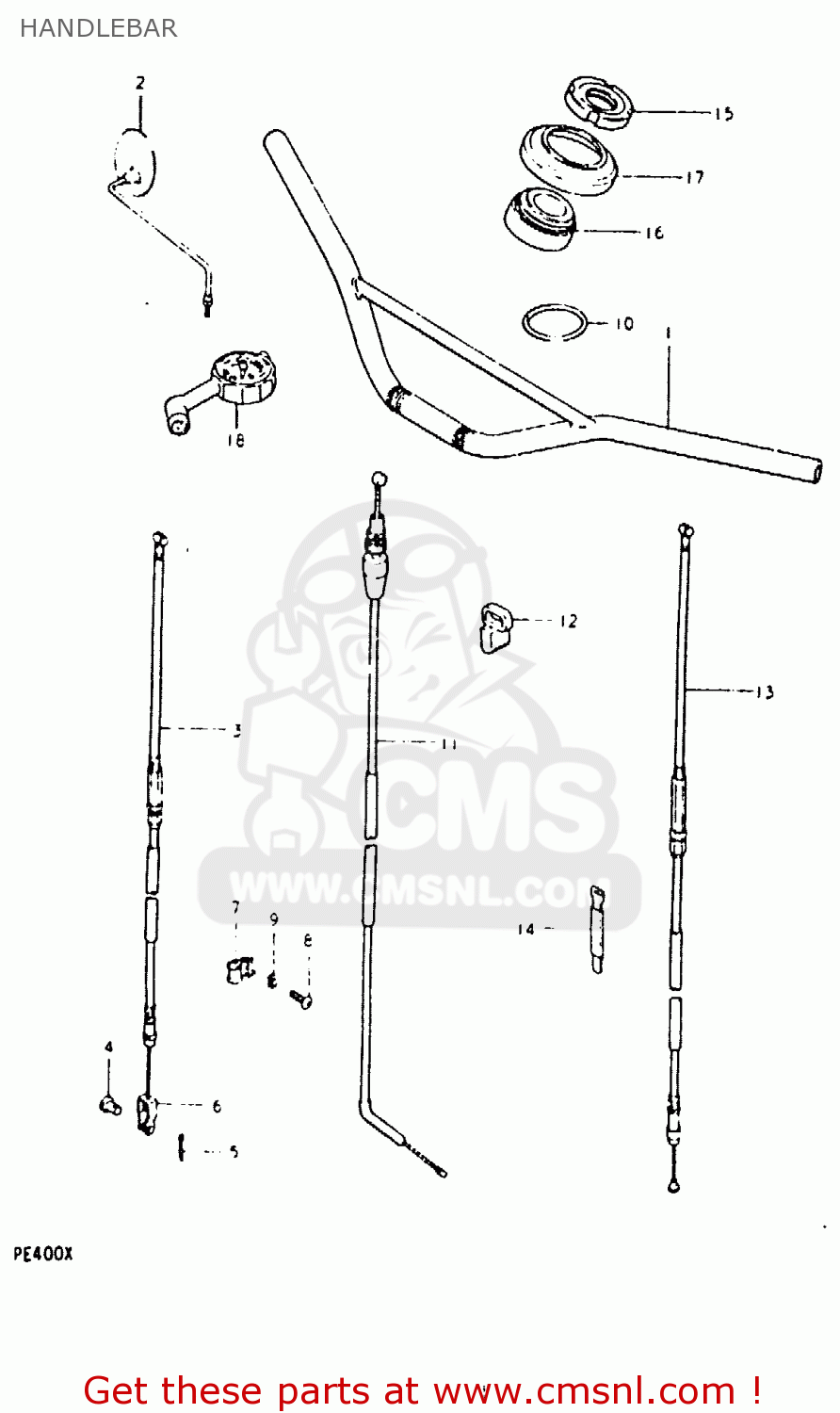

HANDLEBAR

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

561104060008C
ref: 1-2
E2, E6, E24

HANDLEBAR

€ 65.50

2

NOTUSED
ref: 2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

5811040500
ref: 3

CABLE,FRONT BRAKE

€ 35.00

4

0920006013
ref: 4

PIN(L:13.5)

€ 2.00

5

0411120158
ref: 5

PIN

€ 1.50

6

5866141400
ref: 6

BRAKE CABLE HOOK

€ 0.00

7

5862040401
ref: 7

GUIDE,CABLE

€ 6.50

8

0211206208
ref: 8

SCREW

€ 2.00

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0928070004
ref: 10

O RING(D:3.53,ID:69.44)

€ 3.50

11-1

5830040600
ref: 11-1
MODEL T, TO 58300-40

CABLE ASSEMBLY,THROTTLE

€ 28.50

11-2

5830040601
ref: 11-2
MODEL X

CABLE ASSEMBLY,THROTTLE

€ 28.50

12

5862141110
ref: 12

GUIDE,CABLE

€ 5.50

13

5821040600
ref: 13

CABLE,CLUTCH

€ 30.00

14

0940718301
ref: 14

CLAMP

€ 6.00

15

5163128000
ref: 15

NUT,STEERING STEM(25X44X10)

€ 12.50

16

0926525008
ref: 16

TAPER,ROLLER BEARING

€ 48.50

17

5164340500
ref: 17

DUST SEAL,STEERING,UPPER

€ 8.00

18

9620041330
ref: 18

GAUGE ASSY,AIR PRESSURE

€ 77.50
