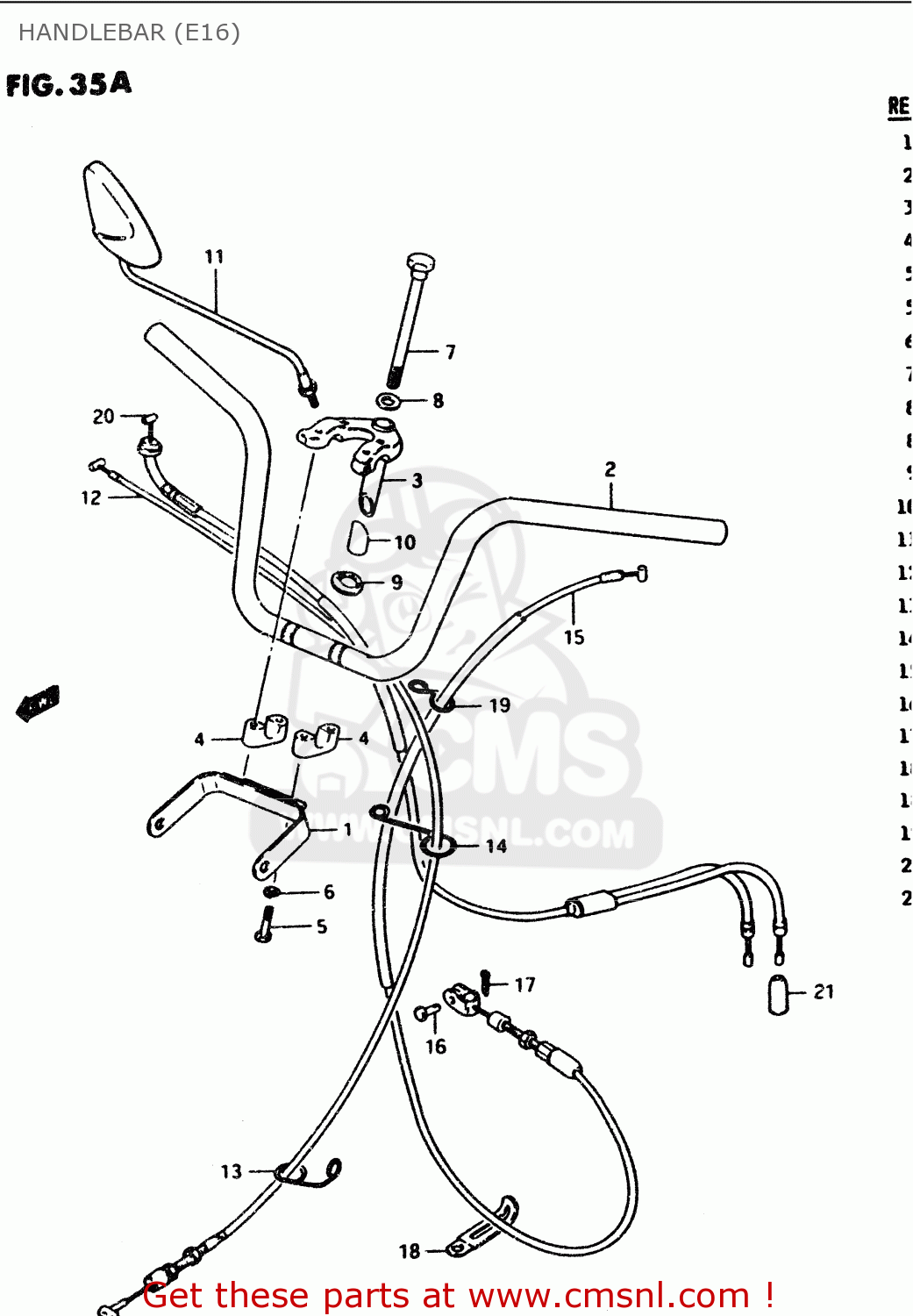

HANDLEBAR (E16)

ref

part #

description

quantity

1

5135017211
ref: 1

BRACKET,HEAD LAMP HOUSING

€ 0.00

2

5611117200
ref: 2

HANDLEBAR

€ 0.00

3

5613017200
ref: 3

BRACKET,HANDLEBAR

€ 122.50

4

5621127200291
ref: 4

HOLDER,HANDLE UPR

€ 13.50

5-1

0110708355
ref: 5-1
MODEL M

BOLT

€ 3.50

5-2

0157008353
ref: 5-2
MODEL R

BOLT

€ 2.00

6

0832121084
ref: 6
MODEL M

WASHER,LOCK,8.

€ 2.50

7

0911112003
ref: 7

BOLT(12X114)

€ 7.00

8-1

0832211148
ref: 8-1
MODEL M

WASHER

€ 2.00

8-2

0832201143
ref: 8-2
MODEL R

WASHER

€ 2.00

9

5613417200
ref: 9

STOPPER

€ 6.50

10

5625102401
ref: 10

STOP,HANDLE EXPANDER

€ 15.00

11

5650035601
ref: 11

MIRROR ASSY, REAR VIEW

€ 159.50

12

5811017200
ref: 12

CABLE,FR BRAKE

€ 0.00

13

5862117210
ref: 13

GUIDE, LOWER

€ 0.00

14

5862217200
ref: 14

GUIDE,FR BRAKE CABLE UPR

€ 0.00

15

5820017201
ref: 15

CABLE ASSY,CLUTCH

€ 20.50

16

0920006004
ref: 16

PIN(L:13)

€ 1.50

17

0411120158
ref: 17

PIN

€ 1.50

18-1

0940406401
ref: 18-1
MODEL M

CLAMP L:35

€ 2.50

18-2

0940406404
ref: 18-2
MODEL R

CLAMP

€ 3.00

19

5862217210
ref: 19

GUIDE,CABLE

€ 3.50

20

5830017201
ref: 20

CABLE ASSY,THROTTLE

€ 59.00

21

0928707002
ref: 21

SEAL,DUST(7X18X30)

€ 2.50

all assemblies
