SPEEDOMETER (E16,E43)
PV50 1983 (D) (E01)

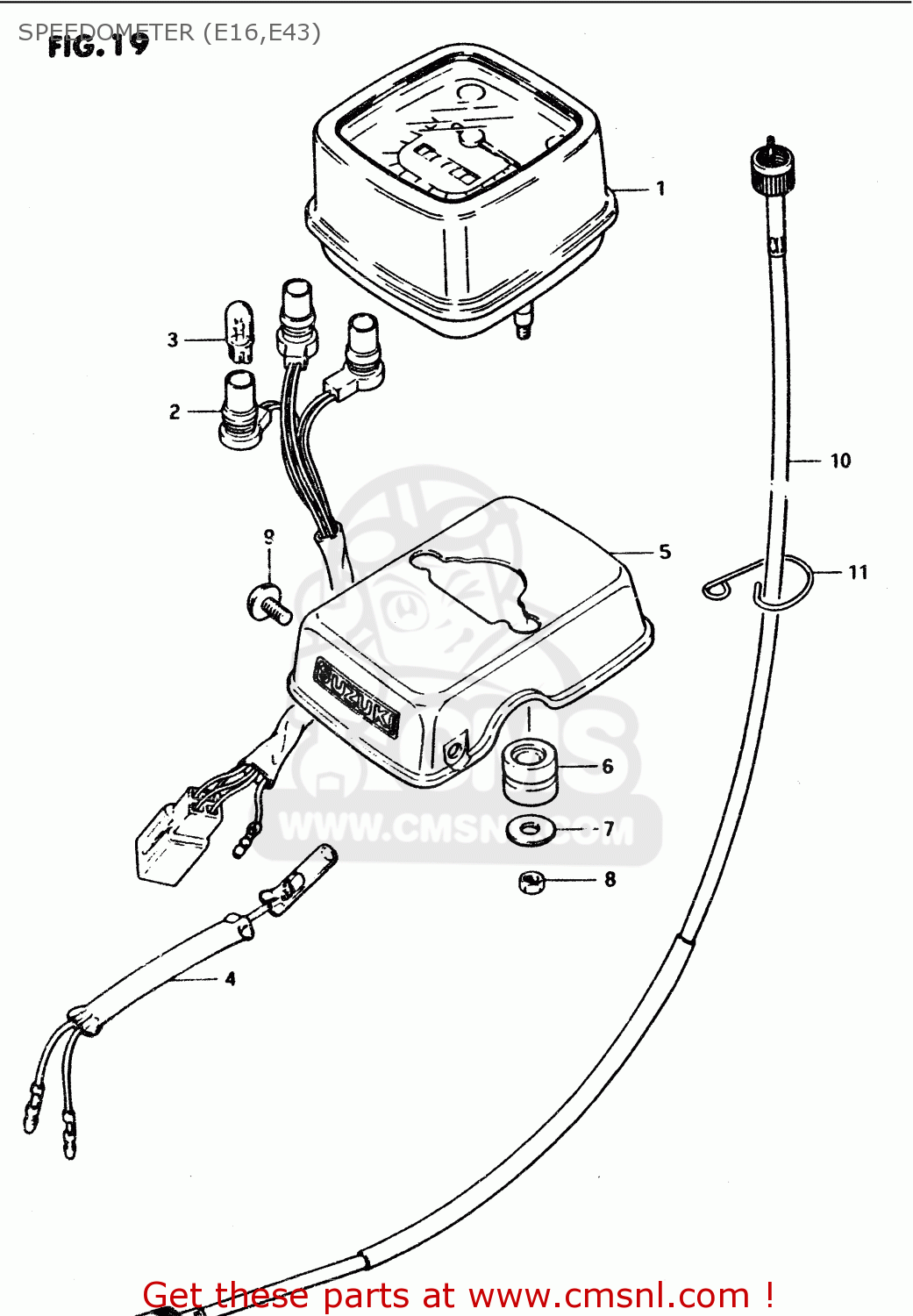

Speedometer (e16,e43) diagram PV50 1983 (D) (E01)
SPEEDOMETER (E16,E43) PV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411017210
ref: 1-1
MODEL D/H/L/M
SPEEDOMETER
€ 0.00
1-2
3411017211
ref: 1-2
MODEL R
SPEEDOMETER
€ 0.00
2
3417317221
ref: 2
SOCKET
€ 0.00
3
0947106053
ref: 3
BULB(6V,3W)
€ 2.50
4
3636817220
ref: 4
WIRE, LEAD
€ 0.00
5
3495017221
ref: 5
BRACKET,METER
€ 26.50
6
3418929330
ref: 6
CUSHION
€ 3.50
7
0916005017
ref: 7
WASHER (5.5X16X1.2)
€ 2.50
8
0831011057
ref: 8
NUT 5MM
€ 2.50
9-1
0214205104
ref: 9-1
MODEL D/H/L/M
SCREW 5X10
€ 2.50
9-2
0214205103
ref: 9-2
MODEL R
SCREW
€ 2.50
10
3491017202
ref: 10
CABLE, SPEEDOMETER
€ 60.50
11
5145531010
ref: 11
CLIP
€ 5.00
