WIRING HARNESS
PV50 1983 (D) (E01)

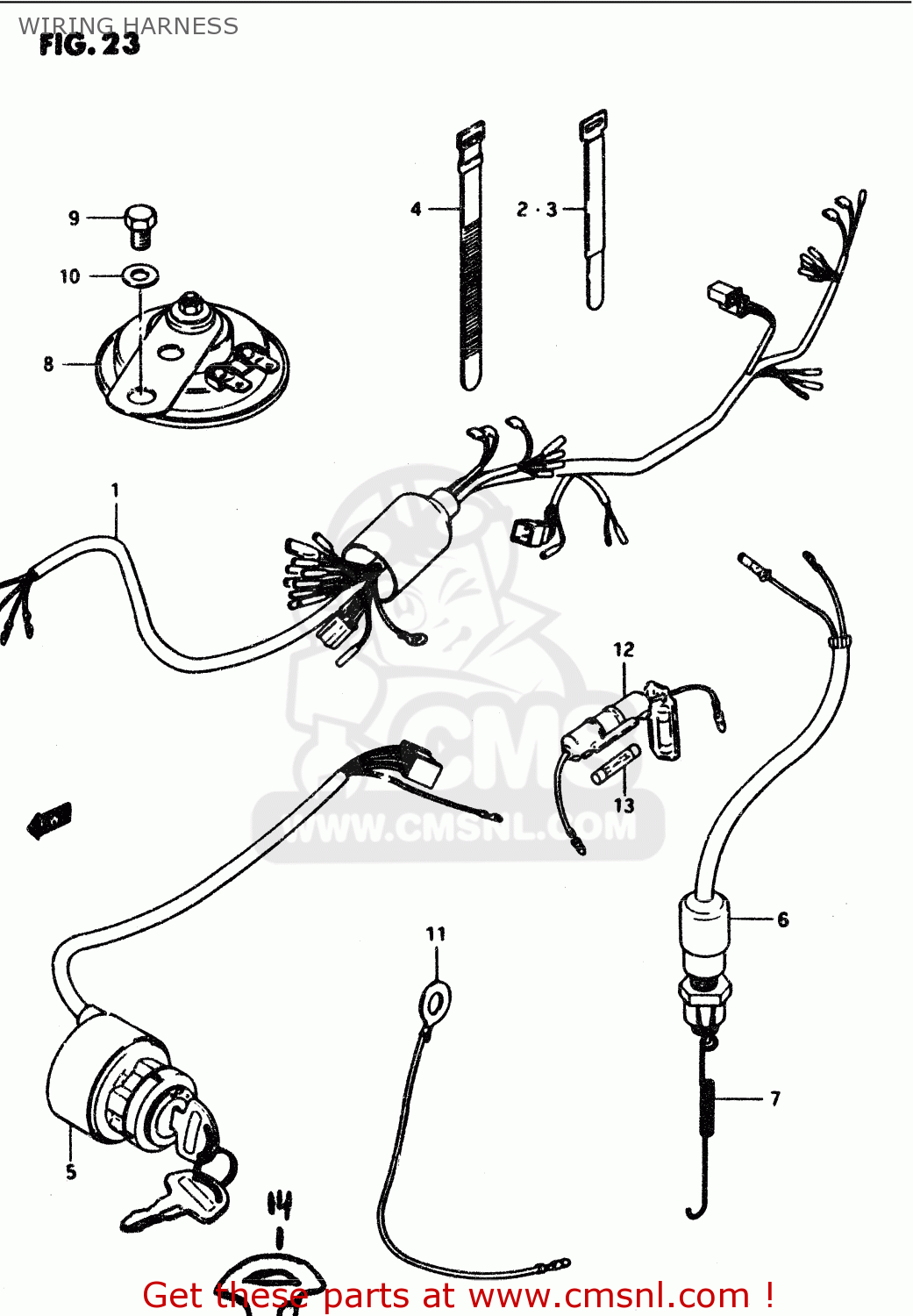

Wiring harness diagram PV50 1983 (D) (E01)
WIRING HARNESS PV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661017210
ref: 1-1
MODEL X E15
WIRING HARNESS
€ 0.00
1-2
3661017213
ref: 1-2
MODEL D/H E15
WIRING HARNESS
€ 70.50
1-3
3661017240
ref: 1-3
MODEL L/M/R E15
WIRING HARNESS
€ 70.50
1-4
3661017253
ref: 1-4
E16
WIRING HARNESS
€ 0.00
1-5
3661017220
ref: 1-5
MODEL D E43
WIRING HARNESS
€ 0.00
1-6
3661017230
ref: 1-6
MODEL H/L/M E43
WIRING HARNESS
€ 0.00
2
0940406404
ref: 2
CLAMP
€ 3.00
3
0940406415
ref: 3
CLAMP
€ 3.00
4-1
0940712402
ref: 4-1
CLAMP(L:120)
€ 3.00
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940718403
ref: 4-3
CLAMP L:165
€ 2.50
5-1
3711025319
ref: 5-1
MODEL D E43
SWITCH ASSY,IGNITION
€ 60.00
5-2
3711046101
ref: 5-2
MODEL H/L/M E43
SWITCH, IGNITION
€ 49.00
5-3
3711027115
ref: 5-3
E16
SWITCH ASSY,IGNITION
€ 67.50
6
3774048071
ref: 6
SWITCH ASSY,STOP LAMP
€ 22.00
7-1
0944306032
ref: 7-1
MODEL X/D/H/L/M
SPRING
€ 6.00
7-2
0944306011
ref: 7-2
MODEL R
SPRING
€ 6.00
8-1
3850017210
ref: 8-1
MODEL L/M/R E15
HORN ASSY
€ 0.00
8-2
3850023031
ref: 8-2
E16,E43
HORN ASSEMBLY
€ 30.00
9-1
0110706107
ref: 9-1
MODEL X/D/H/L/M
BOLT
€ 2.00
9-2
0156006103
ref: 9-2
MODEL R
BOLT
€ 2.50
10
0832221067
ref: 10
WASHER
€ 2.00
11
3685145100
ref: 11
E16
LEAD WIRE,EARTH
€ 7.50
12-1
3674035012
ref: 12-1
MODEL M E16
CASE ASSY,FUSE
€ 11.00
12-2
3674002201
ref: 12-2
MODEL R E16
CASE ASSY,FUSE
€ 12.50
13
0948110001
ref: 13
E16
FUSE(10A)
€ 2.00
14
3714519710
ref: 14
KEY,BLANK
€ 13.00
