TURNSIGNAL LAMP (E43)

PV50 1983 (D) (E01)

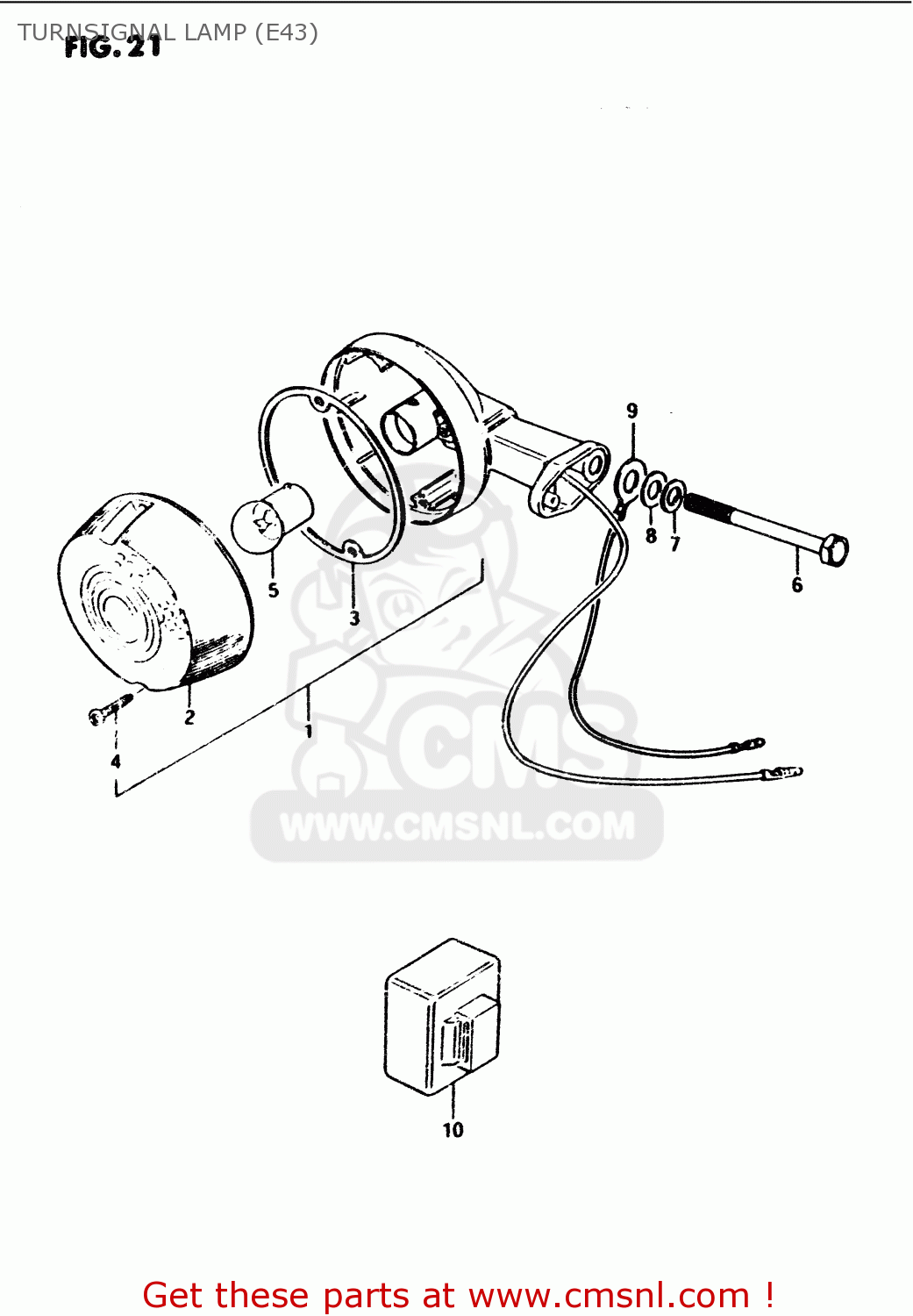

Turnsignal lamp (e43) diagram PV50 1983 (D) (E01)

TURNSIGNAL LAMP (E43) PV50 1983 (D) (E01)

TURNSIGNAL LAMP (E43) PV50 1983 (D) (E01)

prices are in EUR

ref

part #

description

quantity

1

3560112610999
ref: 1

BLINKLYS

€ 0.00

2

3561212611
ref: 2

LENS,TURNSIGNAL

€ 11.00

3

3561306111
ref: 3

GASKET (NAS)

€ 5.00

4

3562306110
ref: 4

SCREW

€ 2.00

5

0947106021
ref: 5

BULB(6V8W,STANLEY,A4115)

€ 3.50

6

0910006038
ref: 6

BOLT(6X65)

€ 2.00

7

0832121067
ref: 7

WASHER,LOCK

€ 2.50

8

0832221067
ref: 8

WASHER

€ 2.00

9-1

3685146200
ref: 9-1
MODEL D/H

LEAD WIRE, FRONT ARTH

€ 7.50

9-2

3685145100
ref: 9-2
MODEL L/M

LEAD WIRE,EARTH

€ 7.50

10

3861005612
ref: 10

RELAY,TURN SIGNAL

€ 46.50
