PV50 1987 (H) (E01)

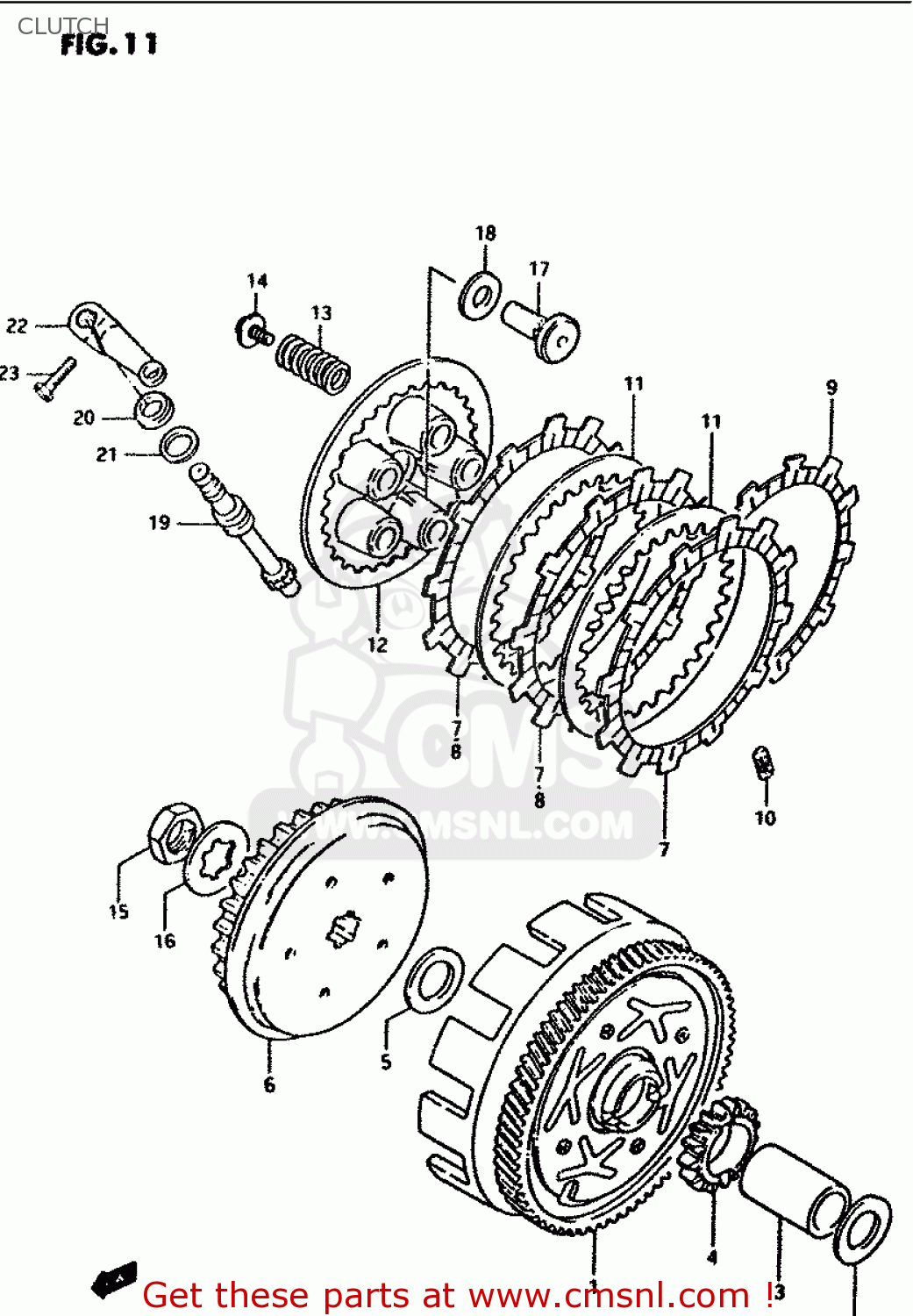

Clutch diagram PV50 1987 (H) (E01)
CLUTCH PV50 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2120046010
ref: 1
GEAR ASSY,PRI DRIVEN(NT:73)
€ 154.00
2
0821117301
ref: 2
WASHER,THRUST
€ 3.00
3-1
0918017045
ref: 3-1
MODEL X/D/H/L/M
SPACER
€ 12.50
3-2
2125121D10
ref: 3-2
MODEL R
SPACER,PRIMARY DRIVEN GEAR
€ 12.50
4
2628146000
ref: 4
NT:17
GEAR,KICK STARTER DRIVE
€ 48.00
5
0821117282
ref: 5
WASHER
€ 3.00
6
2141146100
ref: 6
HUB,CLUTCH SLEEVE
€ 83.00
7
2144113A00
ref: 7
MODEL X
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
8-1
2144113A00
ref: 8-1
MODEL D/H/L/M
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
8-2
2144113A01
ref: 8-2
MODEL R
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
9-1
2144146000
ref: 9-1
MODEL D/H/L
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9-2
2144146010
ref: 9-2
MODEL M/R
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
10
2148146000
ref: 10
MODEL D/H/L/M/R
DAMPER
€ 7.00
11
2145128000
ref: 11
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
12
2146246000
ref: 12
DISC,CLUTCH PRESSURE
€ 19.50
13
0944015008
ref: 13
SPRING
€ 2.00
14
0911605003
ref: 14
BOLT 5X16
€ 2.50
15
0914016014
ref: 15
NUT
€ 4.50
16
0916717002
ref: 16
WASHER,LOCK
€ 2.00
17
2316546000
ref: 17
RACK,CLUTCH RELEASE
€ 20.00
18
0926310002
ref: 18
BEARING(10X22X2.8)
€ 8.50
19
2326141301
ref: 19
PINION,CLUTCH RELEASE
€ 27.50
20
0928510004
ref: 20
SEAL,OIL(10X17X5)
€ 3.50
21
0916012035
ref: 21
WASHER (12X17X1)
€ 2.00
22
2327146000
ref: 22
ARM,CLUTCH RELEASE
€ 14.50
23-1
0110706167
ref: 23-1
MODEL X/D/H/L/M
BOLT
€ 3.00
23-2
0150006163
ref: 23-2
MODEL R
BOLT
€ 2.00
