REAR COMBINATION LAMP (E43)
PV50 1987 (H) (E01)

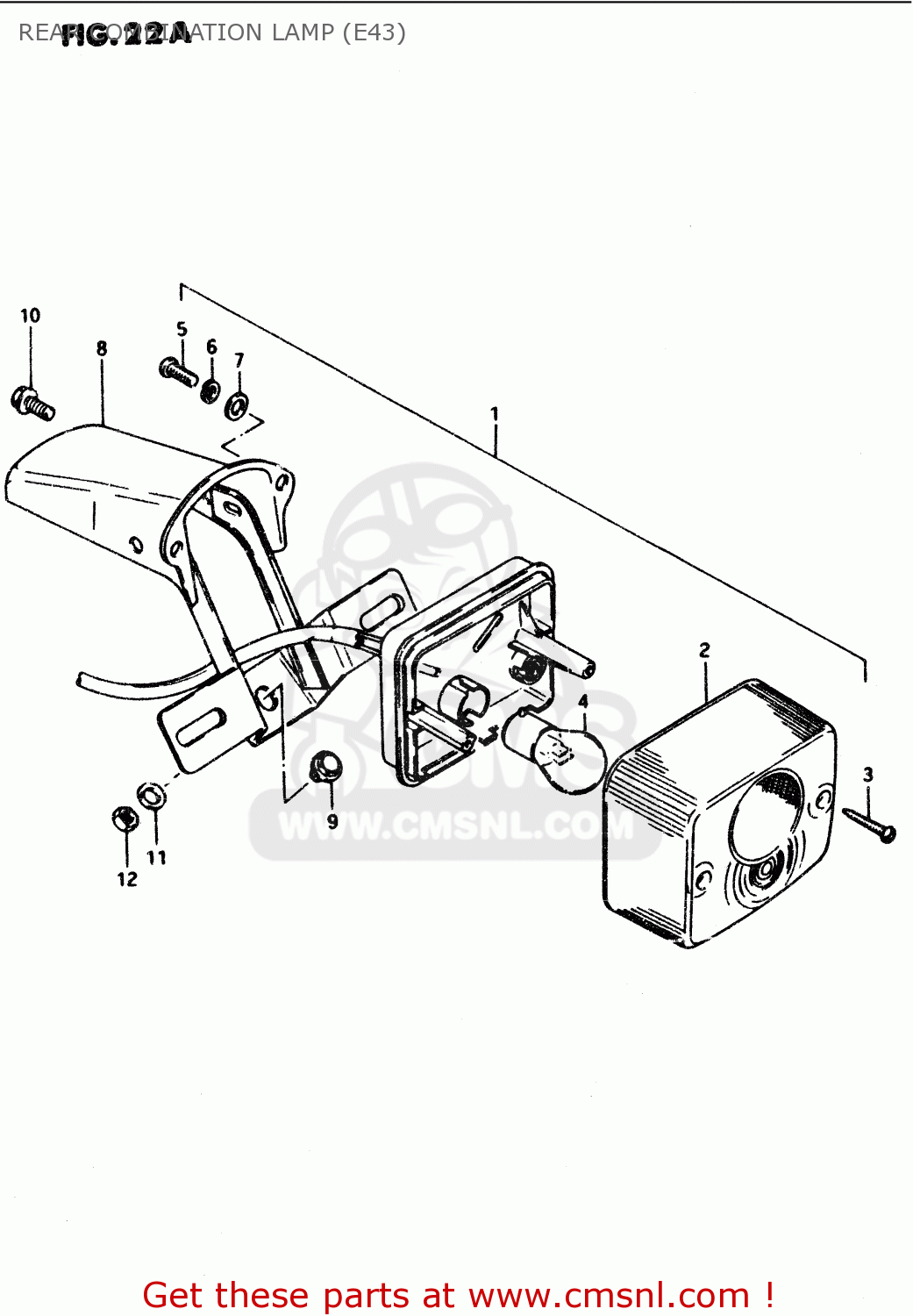

Rear combination lamp (e43) diagram PV50 1987 (H) (E01)
REAR COMBINATION LAMP (E43) PV50 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3572017200
ref: 1
LAMP UNIT, REAR COMBINATION
€ 65.50
2
3571202300
ref: 2
LENS
€ 18.50
3
0321104207
ref: 3
SCREW
€ 1.50
4
0947106008
ref: 4
BULB(6V10/3W,STANLEY,A4854H)
€ 4.50
5
0211205164
ref: 5
SCREW
€ 2.00
6
0832121055
ref: 6
WASHER,LOCK
€ 3.00
7
0832221055
ref: 7
WASHER,5MM
€ 2.50
8
3572617200
ref: 8
BRACKET
€ 0.00
9
0151706105
ref: 9
BOLT
€ 2.50
10
0151706166
ref: 10
BOLT
€ 2.50
11
0832221066
ref: 11
WASHER, LOWER
€ 2.00
12
0831012066
ref: 12
NUT
€ 2.00
