PV50 1987 (H) (E01)

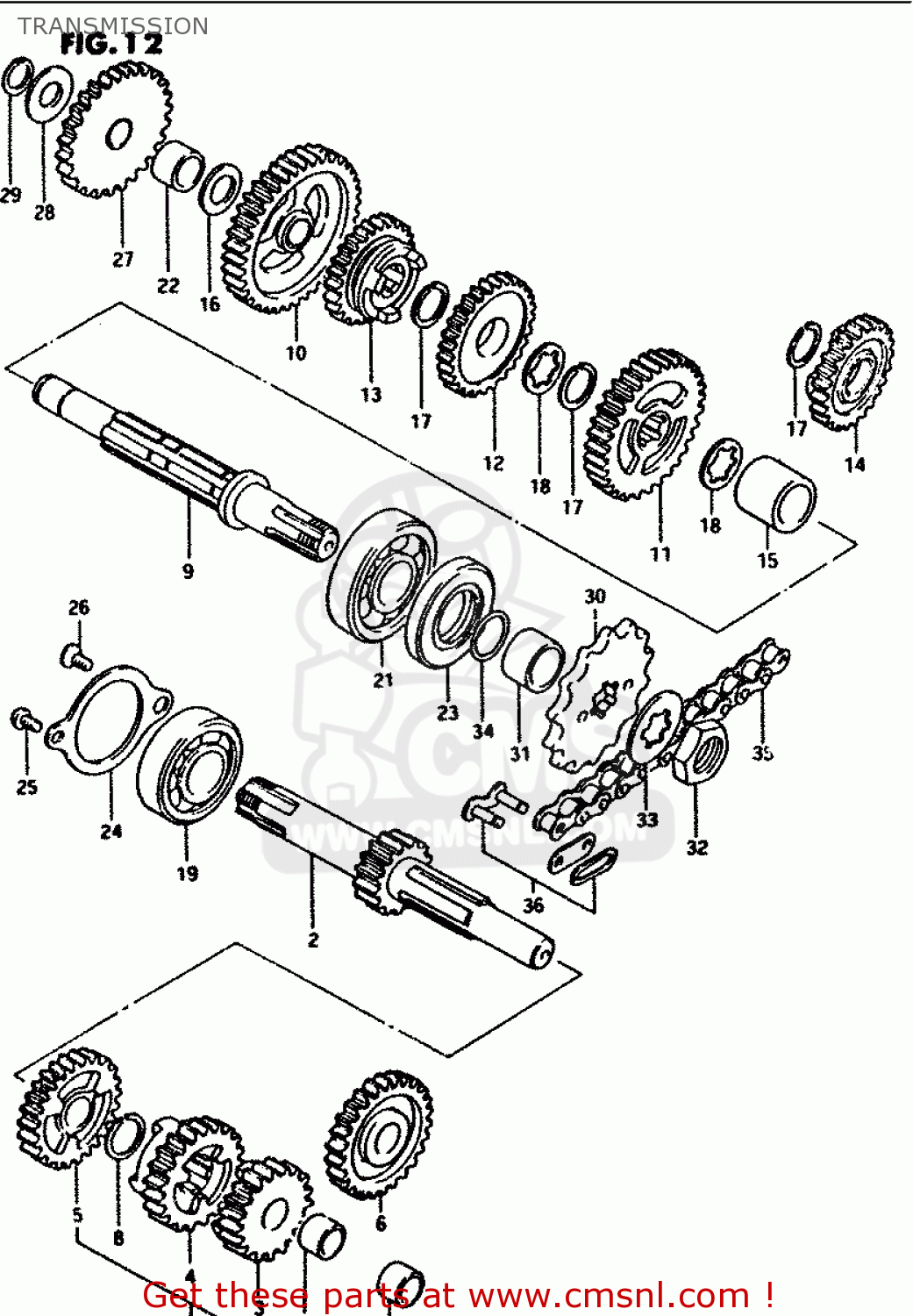

Transmission diagram PV50 1987 (H) (E01)
TRANSMISSION PV50 1987 (H) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412046110
ref: 1-1
COUNTERSHAFT ASSY
€ 0.00
1-2
2412046000
ref: 1-2
E43
SHAFT,COUNTER
€ 165.00
2
2412146000
ref: 2
SHAFT,COUNTER(NT:12)
€ 77.00
3
2422046100
ref: 3
GEAR,SECOND DRIVE
€ 31.00
4
2423146010
ref: 4
GEAR,3RD DRIVE
€ 38.00
5
2424146000
ref: 5
GEAR,4TH DRIVE(NT:24)
€ 31.50
6
2425146000
ref: 6
E43
GEAR,FIFTH DRIVE
€ 32.50
7
0918013005
ref: 7
SPACER
€ 15.50
8
0938017007
ref: 8
CIRCLIP
€ 2.00
9
2413146000
ref: 9
SHAFT,DRIVE
€ 77.00
10
2431046010
ref: 10
GEAR,1ST DRIVEN
€ 36.50
11
2432146000
ref: 11
GEAR,2ND DRIVEN(NT:33)
€ 42.00
12
2433146000
ref: 12
GEAR,3RD DRIVEN(NT:29)
€ 38.50
13
2434146010
ref: 13
GEAR,FOURTH DRIVEN
€ 39.50
14
2435146000
ref: 14
E43
GEAR,5TH DRIVEN(NT:24)
€ 40.00
15
0918017051
ref: 15
SPACER
€ 4.50
16
0916013006
ref: 16
WASHER(13X24X1)
€ 2.50
17-1
0938017007
ref: 17-1
CIRCLIP
€ 2.00
17-2
0938017007
ref: 17-2
E43
CIRCLIP
€ 2.00
18
0916717003
ref: 18
WASHER,LOCK
€ 1.50
19
0926217023
ref: 19
BEARING(17X40X12)
€ 14.00
20
0930313001
ref: 20
BUSH
€ 6.50
21
0811363030
ref: 21
BEARING
€ 15.50
22
0930313001
ref: 22
BUSH
€ 6.50
23
0928321003
ref: 23
SEAL,OIL(21X40X6)
€ 5.50
24
2474146000
ref: 24
RETAINER,CNTR SHAFT BEARING
€ 3.50
25
0211206108
ref: 25
SCREW
€ 1.50
26
0212206108
ref: 26
SCREW
€ 1.50
27
2626046001
ref: 27
NT:26
GEAR,KICK STARTER IDLE
€ 24.00
28
0821112261
ref: 28
WASHER
€ 2.50
29
0833131126
ref: 29
CIRCLIP,12 MM
€ 2.00
30-1
2751119000
ref: 30-1
MODEL X/D/H/L/M
SPROCKET,ENGINE
€ 14.00
30-2
2751119700
ref: 30-2
MODEL R
SPROCKET,ENGINE(NT:14)
€ 19.00
30-3
2751119700
ref: 30-3
E16,E43
SPROCKET,ENGINE(NT:14)
€ 19.00
31
0918017008
ref: 31
SPACER(17X21X13)
€ 7.00
32
0914016002
ref: 32
NUT
€ 4.00
33
0916716001
ref: 33
WASHER,LOCK
€ 1.50
34
0928017001
ref: 34
O RING(D:1,ID:16.8)
€ 2.00
35-1
2760046221
ref: 35-1
CHAIN ASSEMBLY,DRIVE
€ 16.00
35-2
2760013670
ref: 35-2
E16
CHAIN ASSEMBLY,DRIVE
€ 31.00
36-1
2762001023
ref: 36-1
JOINT,CHAIN(RK)
€ 5.50
36-2
2762001012
ref: 36-2
JOINT
€ 5.00
