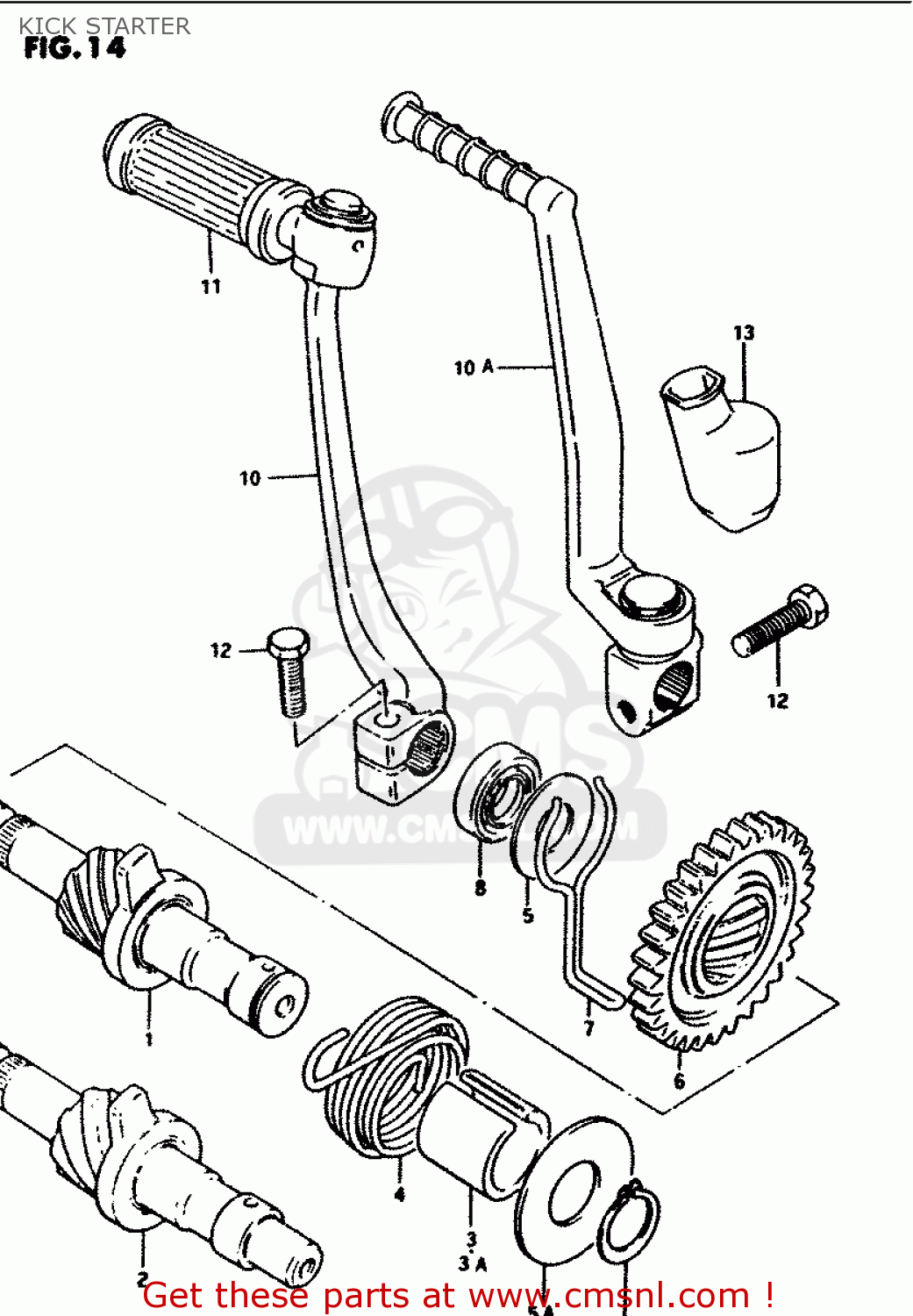

KICK STARTER

ref

part #

description

quantity

1

2621046910
ref: 1
MODEL X/D/H/L/M

SHAFT,KICK STARTER

€ 77.50

2-1

2621046001
ref: 2-1
MODEL R

SHAFT,KICK STARTER

€ 48.00

2-2

2621046001
ref: 2-2
E16,E43

SHAFT,KICK STARTER

€ 48.00

3

2622146000
ref: 3

GUIDE,KICK STARTER SFT SPRING

€ 5.00

3A

2622117200
ref: 3A
MODEL H/L/M:E15,P15

GUIDE, SPRING (L:20.2)

€ 0.00

4

0944840001
ref: 4

SPRING

€ 5.00

5

0916014046
ref: 5

WASHER

€ 4.00

5A

0916016018
ref: 5A
MODEL H/L/M:E15,P15

WASHER(16.2X38X2.3)

€ 2.00

6

2624146000
ref: 6
NT:30

GEAR,KICK STARTER DRIVE(NT:30)

€ 39.00

7

0938428001
ref: 7

RETAINER,SNAP

€ 2.00

8

0928514001
ref: 8

SEAL,OIL(14X24X6)

€ 9.00

9

0833131166
ref: 9
MODEL H/L/M:E15,P15

CIRCLIP 16MM

€ 2.00

10-1

2630013990
ref: 10-1
MODEL X

LEVER ASSEMBLY,KICK STARTER

€ 439.00

10-2

2630035301
ref: 10-2
MODEL D/H/L/M

LEVER ASSY, KICK STARTER

€ 100.50

10-3

2630035302
ref: 10-3
MODEL R

LEVER ASSY

€ 100.50

10A

2630046900
ref: 10A
MODEL P15

LEVER ASSY,KICK STARTER

€ 265.00

11

2635201000
ref: 11

RUBBER,KICK STARTER PEDAL

€ 3.50

12-1

0110706207
ref: 12-1
MODEL X/D/H/L/M

BOLT

€ 2.00

12-2

0150006203
ref: 12-2
MODEL R

BOLT

€ 2.00

13

2634146900
ref: 13
P15

COVER,KICK STARTER PEDAL

€ 6.50
