MAGNETO (MODEL R E15/P15)

PV50 1987 (H) (E01)

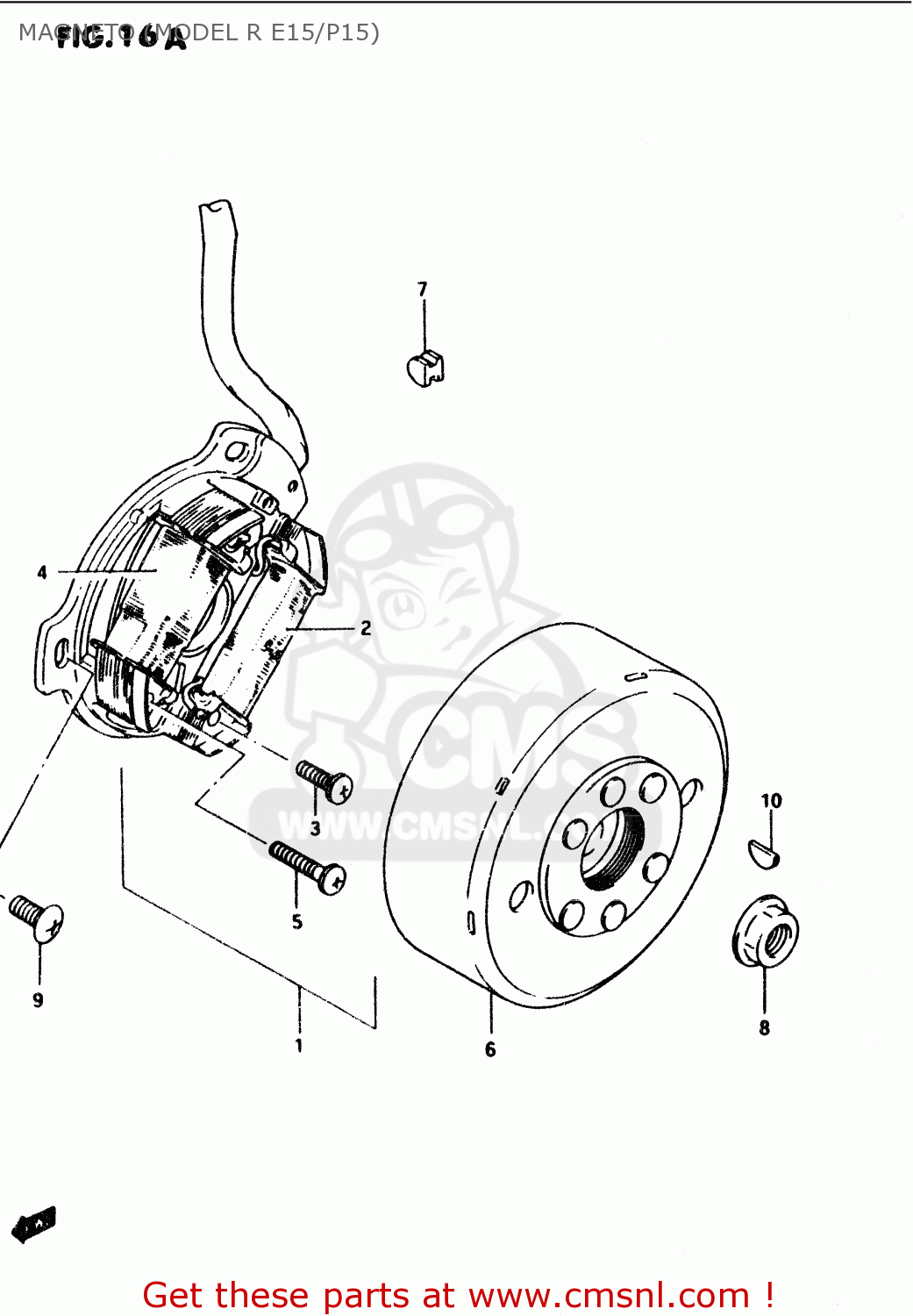

Magneto (model r e15/p15) diagram PV50 1987 (H) (E01)

MAGNETO (MODEL R E15/P15) PV50 1987 (H) (E01)
MAGNETO (MODEL R E15/P15) PV50 1987 (H) (E01)
MAGNETO (MODEL R E15/P15) PV50 1987 (H) (E01)
prices are in EUR
ref
part #
description
quantity
1
3210117260
ref: 1
STATOR ASSY
€ 0.00
2
3214028B01
ref: 2
COIL,PRIMARY
3214028B01
€ 59.00
3
0211234163
ref: 3
SCREW
0211234163
€ 3.00
4
3212017230
ref: 4
COIL, LIGHTING
€ 0.00
5
0211234253
ref: 5
SCREW
€ 2.00
6
3210217260
ref: 6
ROTOR, FLYWHEEL
€ 154.50
7
0925904001
ref: 7
PLUG
0925904001
€ 3.50
8
0831610103
ref: 8
NUT
0831610103
€ 2.00
9
0214205123
ref: 9
SCREW 5X12
0214205123
€ 1.50
10
0834131039
ref: 10
KEY
0834131039
€ 2.00
