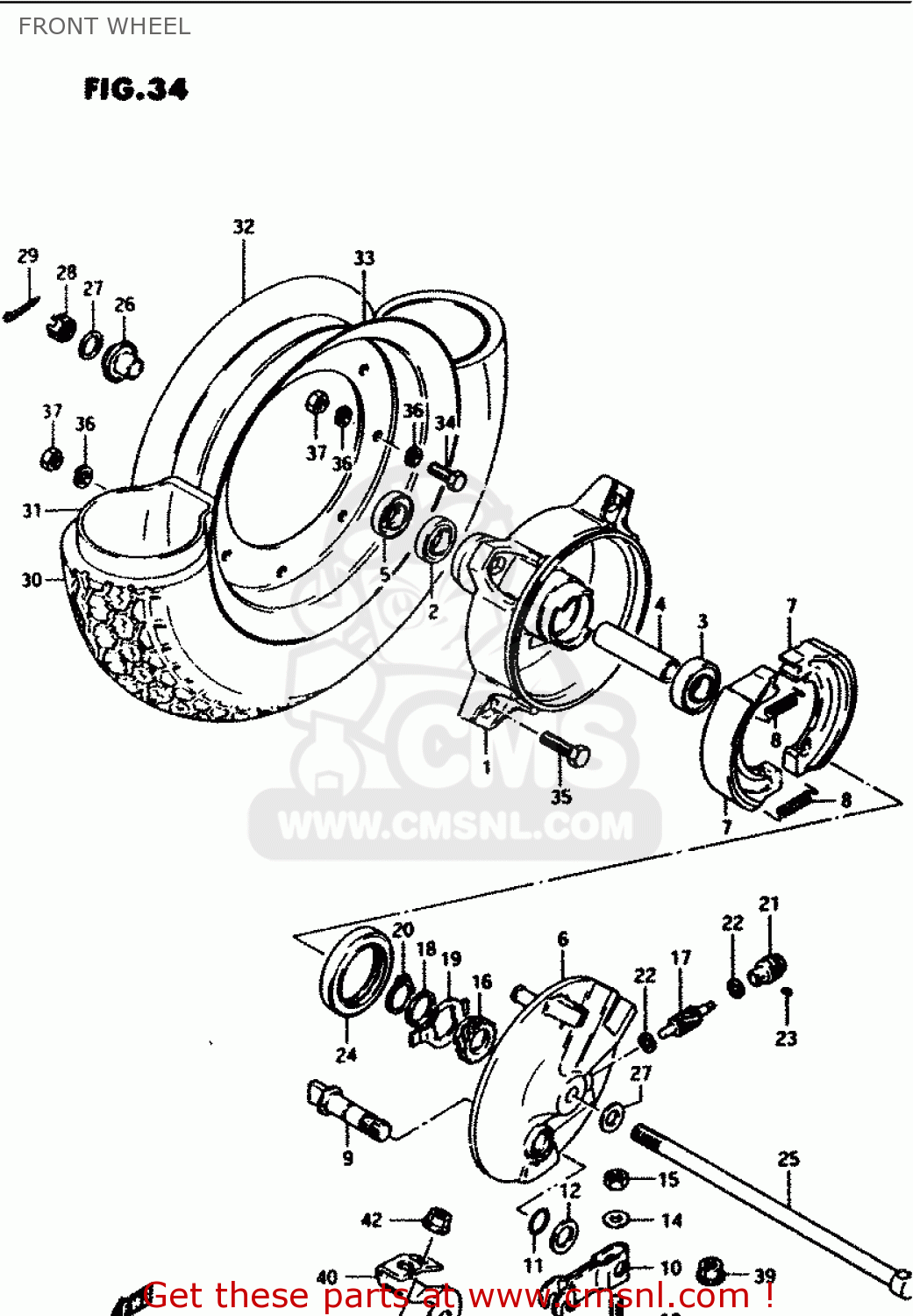

FRONT WHEEL

ref

part #

description

quantity

1-1

5411017200
ref: 1-1
MODEL X/D/H/L/M

HUB, FRONT WHEEL

€ 0.00

1-2

5411017201
ref: 1-2
MODEL R

HUB,FR WHEEL

€ 0.00

2

0811362007
ref: 2

BEARING

€ 7.50

3

0814363007
ref: 3

BEARING

€ 12.50

4

0918010058
ref: 4

SPACER(10.2X16X66)

€ 7.50

5

0928415001
ref: 5

SEAL,OIL(15X31X5)

€ 4.00

6-1

5421017200
ref: 6-1
MODEL X/D/H/L/M E15,

PANEL, FRONT BRAKE ANCHOR

€ 298.50

6-2

5421017202
ref: 6-2
MODEL R E15

PANEL,FR BRAKE ANCHOR

€ 298.50

6-3

5421017230
ref: 6-3
MODEL M E16

PANEL, FRONT BRAKE ANCHOR

€ 0.00

6-4

5421017231
ref: 6-4
MODEL R E16

PANEL, FRONT BRAKE ANCHOR

€ 0.00

7-1

5441043021
ref: 7-1
MODEL X/D/H/L/M ARRO

SHOE,BRAKE (MCA)

€ 19.00

7-2

5441043040
ref: 7-2
MODEL R

SHOE,BRAKE

€ 29.00

7-3

5440043820
ref: 7-3

SHOE SET,BRAKE (NAS)

€ 19.00

8-1

0944307001
ref: 8-1
MODEL X/D/H/L/M FOR

SPRING(L:34)

€ 2.50

8-2

0944307025
ref: 8-2
MODEL R FOR 54410-43

SPRING(L:35.8)

€ 2.50

8-3

0944307025
ref: 8-3
FOR 54400-43820

SPRING(L:35.8)

€ 2.50

9

5444126502
ref: 9

CAM,FRONT BRAKE

€ 12.00

10-1

5445117200
ref: 10-1
E15,E43

LEVER,FR BRAKE

€ 8.50

10-2

5445017220
ref: 10-2
E16

LEVER, CAM

€ 0.00

11

0928014003
ref: 11

O-RING (D:2.4 ID:13.8)

€ 3.50

12

0916014001
ref: 12

WASHER (14.5X22X1.6)

€ 2.50

13

0910006078
ref: 13
MODEL X/D/H/L/M

BOLT(6X33)

€ 2.50

14

0832221067
ref: 14
MODEL X/D/H/L/M

WASHER

€ 2.00

15

0831011068
ref: 15
MODEL X/D/H/L/M

NUT

€ 2.50

16

5461117201
ref: 16

GEAR,SPEEDOMETER(NT:18)

€ 0.00

17

5462117201
ref: 17

PINION,SPEEDOMETER(NT:11)

€ 0.00

18

0916018002
ref: 18

WASHER(18.5X24X1)

€ 2.00

19

5466107000
ref: 19

DRIVER,SPEEDOMETER GEAR

€ 3.00

20

0833131186
ref: 20

CLIP

€ 2.00

21-1

5463201001
ref: 21-1
MODEL X/D/H/L/M FOR

BUSH,METER GEAR OUTER

€ 9.00

21-2

5463202201
ref: 21-2
MODEL R FOR 54210-17

BUSH,SPEEDOMETER PINION OUTER

€ 6.50

22

0916005001
ref: 22

WASHER (5.1X9X0.4)

€ 2.00

23

0913403101
ref: 23
MODEL X/D/H/L/M FOR

SCREW

€ 1.50

24

0928543001
ref: 24

OIL SEAL (43X58X7)

€ 10.00

25-1

5471117200
ref: 25-1
MODEL X/D/H/L/M

AXLE, FRONT

€ 0.00

25-2

5471117201
ref: 25-2
MODEL R

AXLE, FRONT

€ 0.00

26

5474026100
ref: 26

SPACER,FRONT AXLE,RIGHT

€ 11.00

27-1

0832221108
ref: 27-1
MODEL X/D/H/L/M

WASHER

€ 2.50

27-2

0832201103
ref: 27-2
MODEL R

WASHER

€ 2.50

28-1

0831431108
ref: 28-1
MODEL X/D/H/L/M

NUT

€ 1.50

28-2

0914110006
ref: 28-2
MODEL R

NUT

€ 2.50

29

0411120208
ref: 29

PIN 20X20

€ 1.50

30-1

5510017201
ref: 30-1
MODEL X/D E15 MODEL

TIRE, REAR (3.50-8) IRC

€ 0.00

30-2

5510017201
ref: 30-2
MODEL H/L/M/R E15 PU

TIRE, REAR (3.50-8) IRC

€ 0.00

31

5520017200
ref: 31

TUBE ASSY,WHL I

€ 14.00

32-1

5531217200126
ref: 32-1
MODEL X/D/L/M

RIM,WHEEL,R(8X2.50C)

€ 64.50

32-2

553121720028W
ref: 32-2
MODEL H

RIM, WHEEL RH (WHITE)

€ 2.00

32-3

553121720013L
ref: 32-3
MODEL R

RIM, WHEEL RH (SILVER)

€ 0.00

33-1

5531317200126
ref: 33-1
MODEL X/D/L/M

RIM,WHEEL,L(8X2.50C)

€ 82.50

33-2

553131720028W
ref: 33-2
MODEL H

RIM, WHEEL LH (WHITE)

€ 2.00

33-3

553131720013L
ref: 33-3
MODEL R

RIM,WHEEL,L

€ 2.00

34-1

0110708167
ref: 34-1
MODEL X/D/H/L/M

BOLT,8X16

€ 2.00

34-2

0157008163
ref: 34-2
MODEL R

BOLT, UPPER

€ 2.00

35-1

0110708258
ref: 35-1
MODEL X/D/H/L/M

BOLT

€ 2.50

35-2

0150008253
ref: 35-2
MODEL R

BOLT

€ 2.50

36-1

0832131087
ref: 36-1
MODEL X/D/H/L/M

WASHER,LOCK

€ 2.00

36-2

0832101083
ref: 36-2
MODEL R

LOCK WASHER

€ 2.50

37-1

0831012088
ref: 37-1
MODEL X/D/H/L/M

NUT

€ 2.00

37-2

0831000083
ref: 37-2
MODEL R

NUT

€ 1.50

38

0910306045
ref: 38
MODEL R

BOLT(6X32)

€ 3.00

39

0831610063
ref: 39
MODEL R

NUT

€ 2.50

40

5421317200
ref: 40
E16

STOPPER, BRAKE CABLE

€ 0.00

41

0150006253
ref: 41
E16

BOLT

€ 2.50

42

0831931067
ref: 42
E16

NUT

€ 2.50
